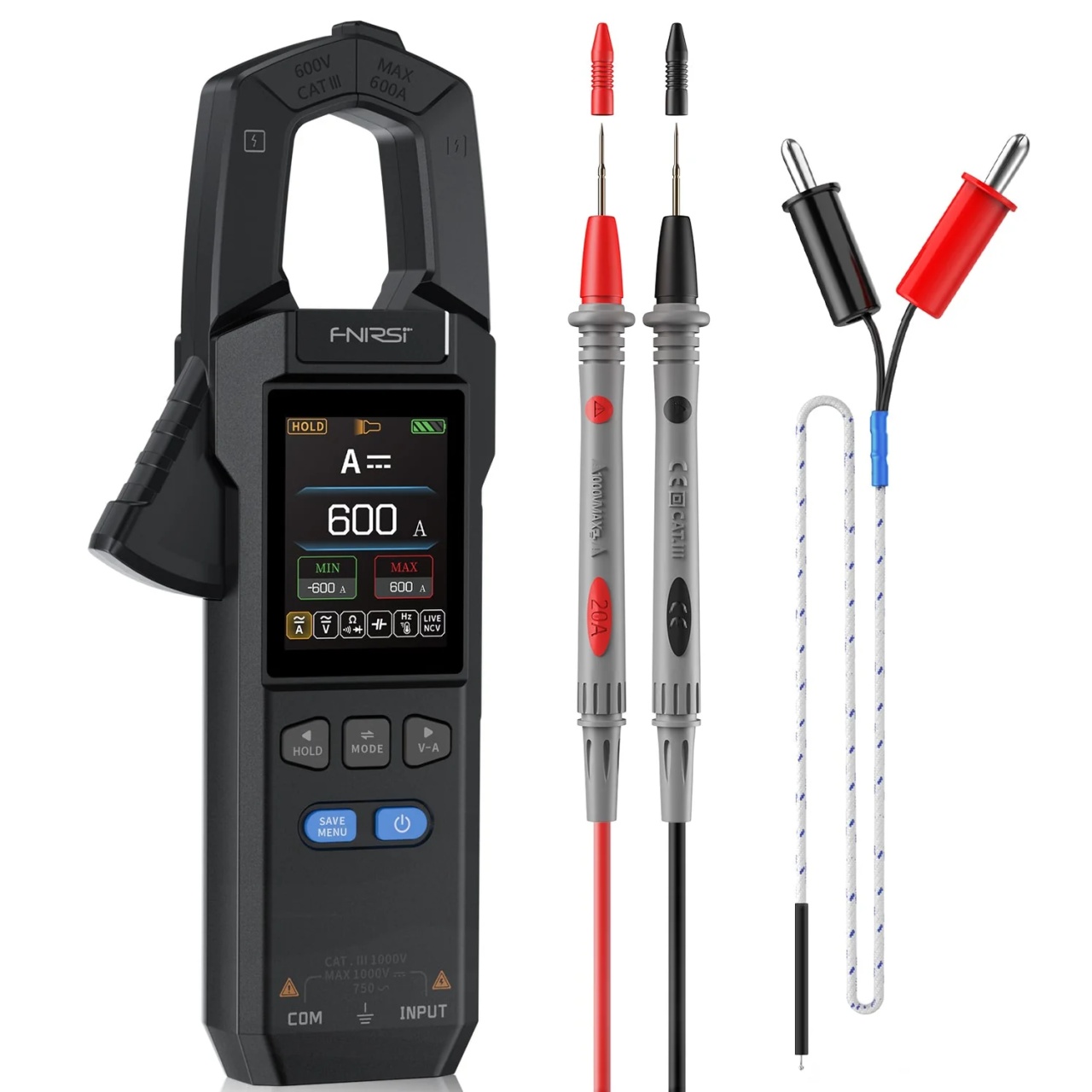

Amper klešta DMC-100

Opis

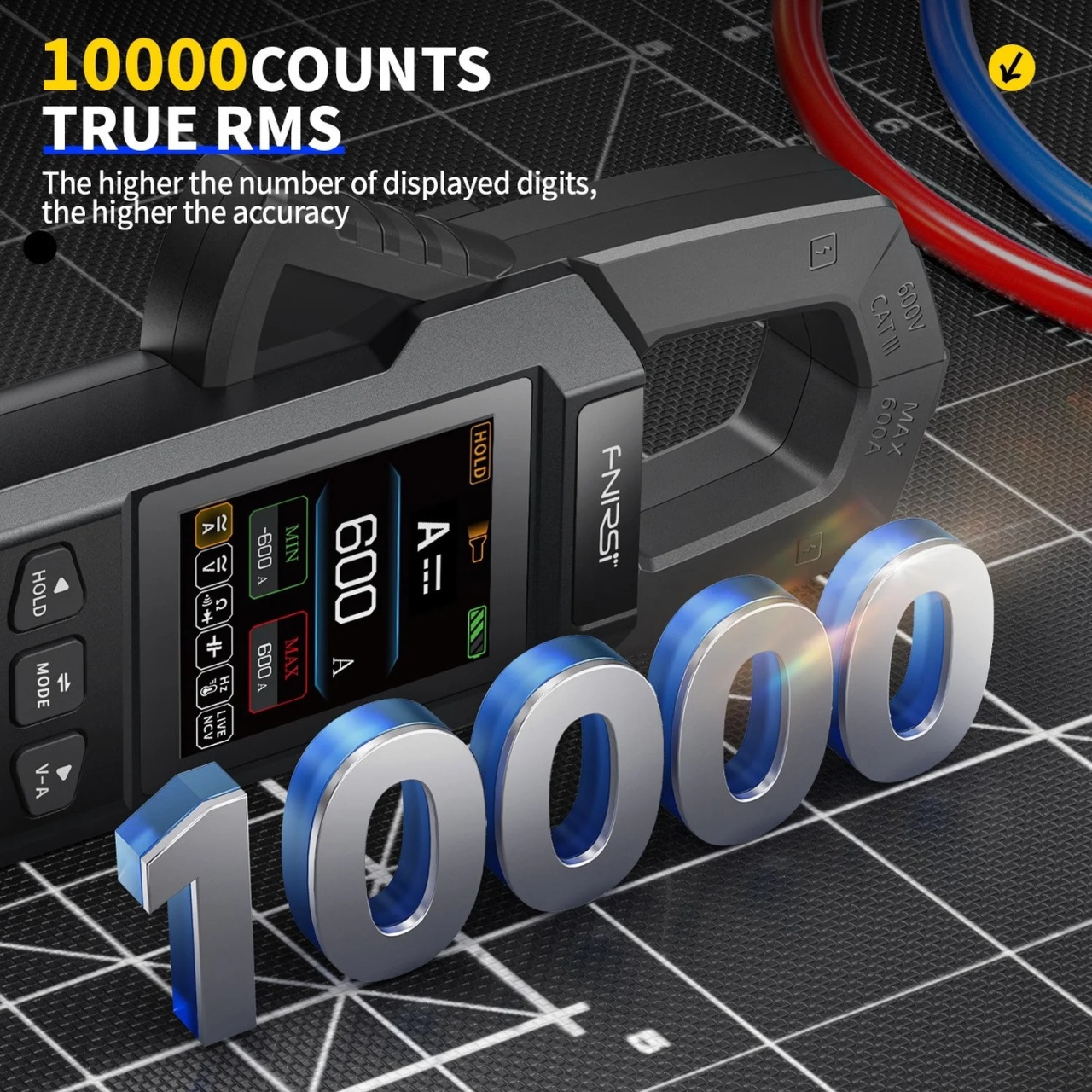

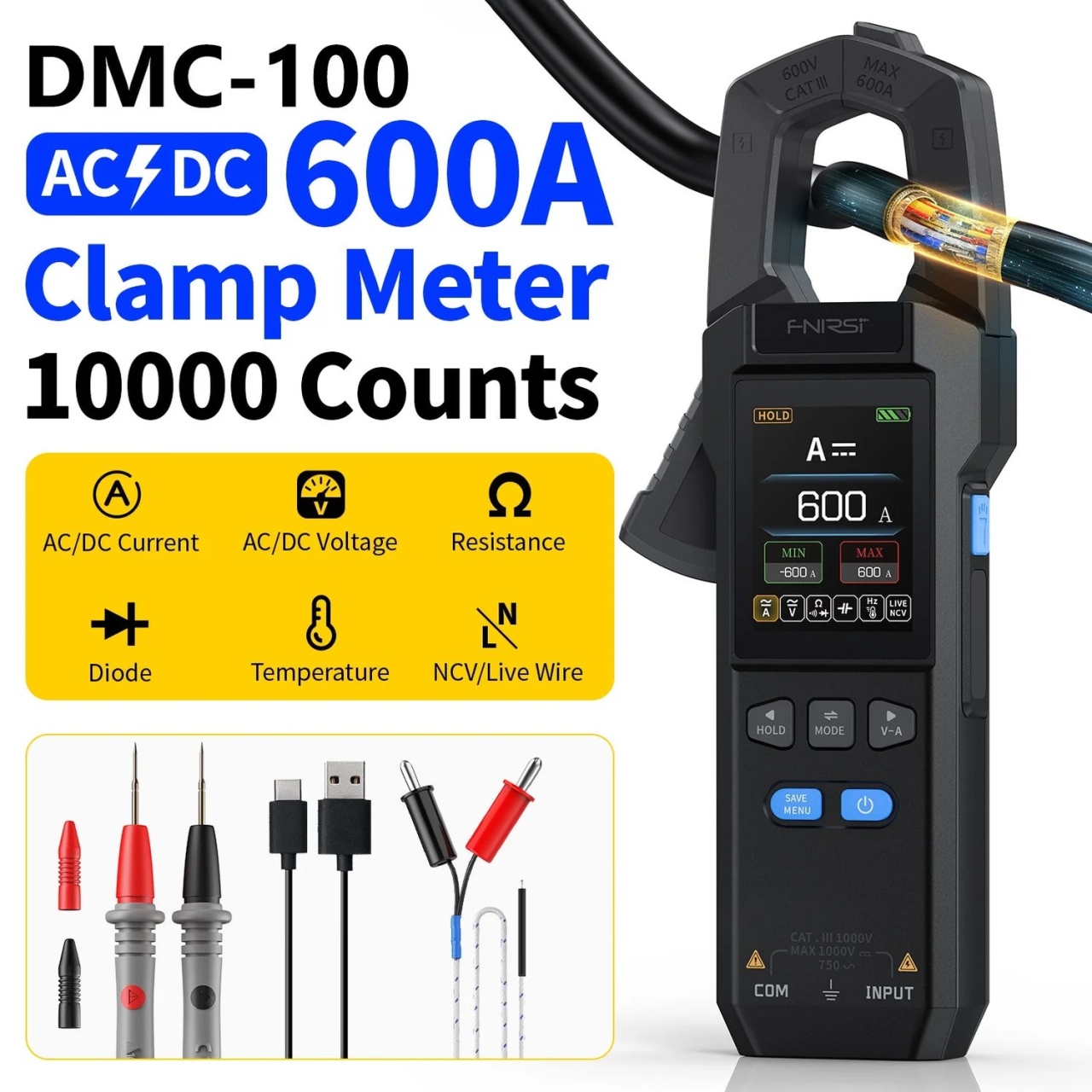

FNIRSI DMC-100 is a 10,000-count high-precision intelligent clamp meter, covering 750V voltage and 600A current ultra-wide range, whether it is engineering maintenance, laboratory research, or vehicle overhaul, home electrical diagnostics, can be easy to handle.

- Brand: FNIRSI,

- Model: DMC-100,

- Screen: 2.0'' TFT color screen,

- Screen Resolution: 240*320 pixels,

- Battery: 3.7V, 1500mAh Lithium Battery,

- Charging Specification: USB Type-C, 5V/1A,

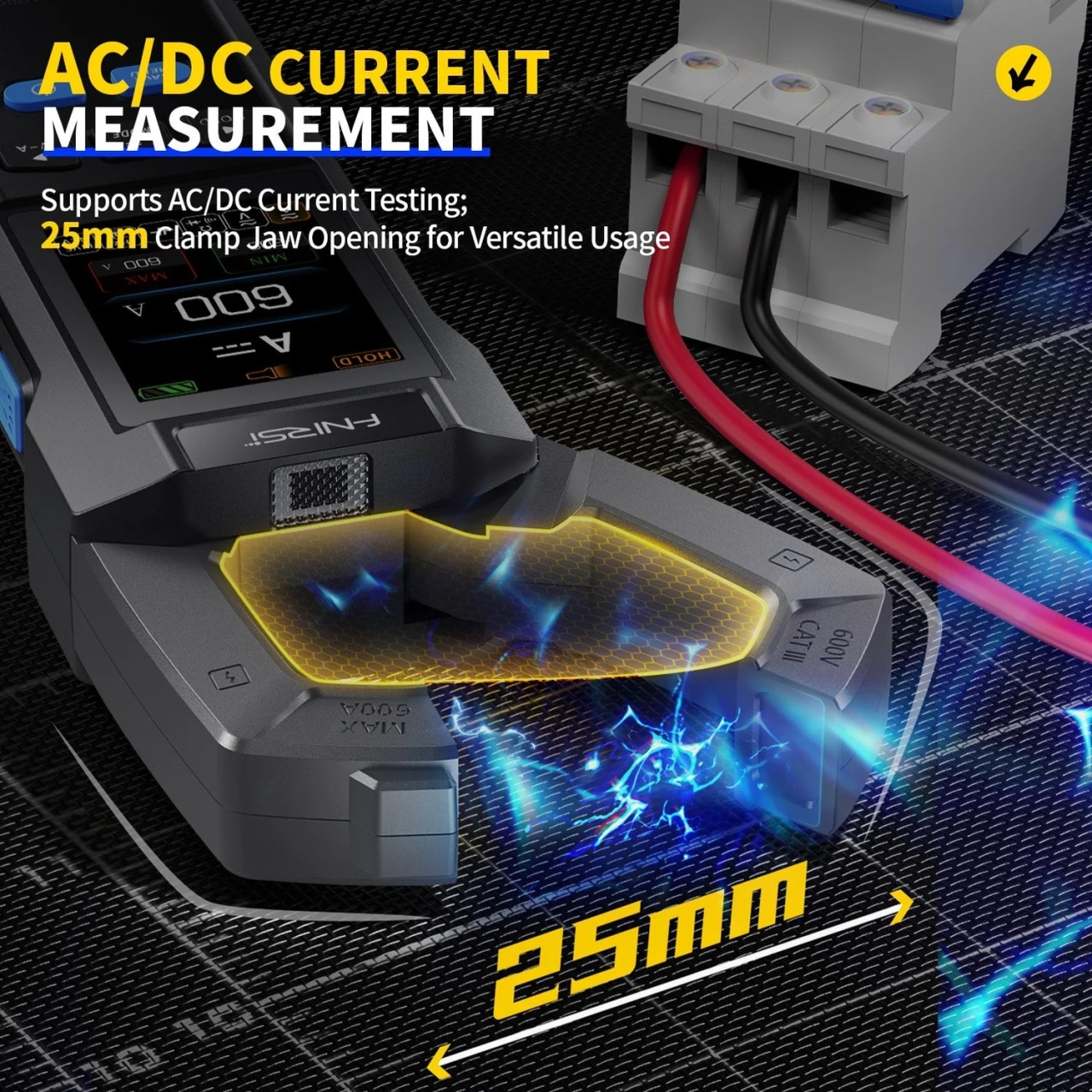

- Maximum Jaws Size: 25mm,

- Temperature Unit: ℃/℉,

- Product Size: 193x74x32mm,

- Product Weight: 194g,

- DC Voltage: 9.999V / 99.99V / 999.9V,

- AC Voltage: 9.999V / 99.99V / 750.0V,

- DC & AC Current: 99.99A / 600.0A,

- Resistance: 99.99MΩ / 9.999MΩ / 999.9KΩ / 99.99KΩ / 9.999KΩ / 999.9Ω,

- Capacitance: 9.999mF / 99.99mF / 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF,

- Frequency: 9.999MHz / 999.9KHz / 99.99KHz / 9.999KHz / 999.99Hz / 99.99Hz / 9.999Hz,

- Temperature: -55~1300℃ / -67~2372℉,

- Diode Measurement: Support,

- On-off Test: Support,

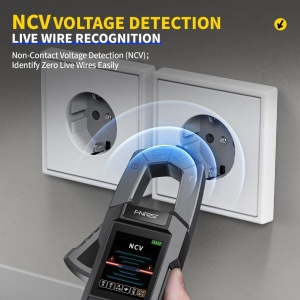

- Non-Contact Voltage Check (NCV): Support,

- Zero Fire Wire Check:  Support,

- Measuring Mode: General Measurement/Waveform Display/Power Measurement,

- Measurement Gear: Manual Adjustment,

- Torch: Support,

- Data Zeroing: Support,

- Maximum/Minimum Value: Support,

- Waveform Display: Support,

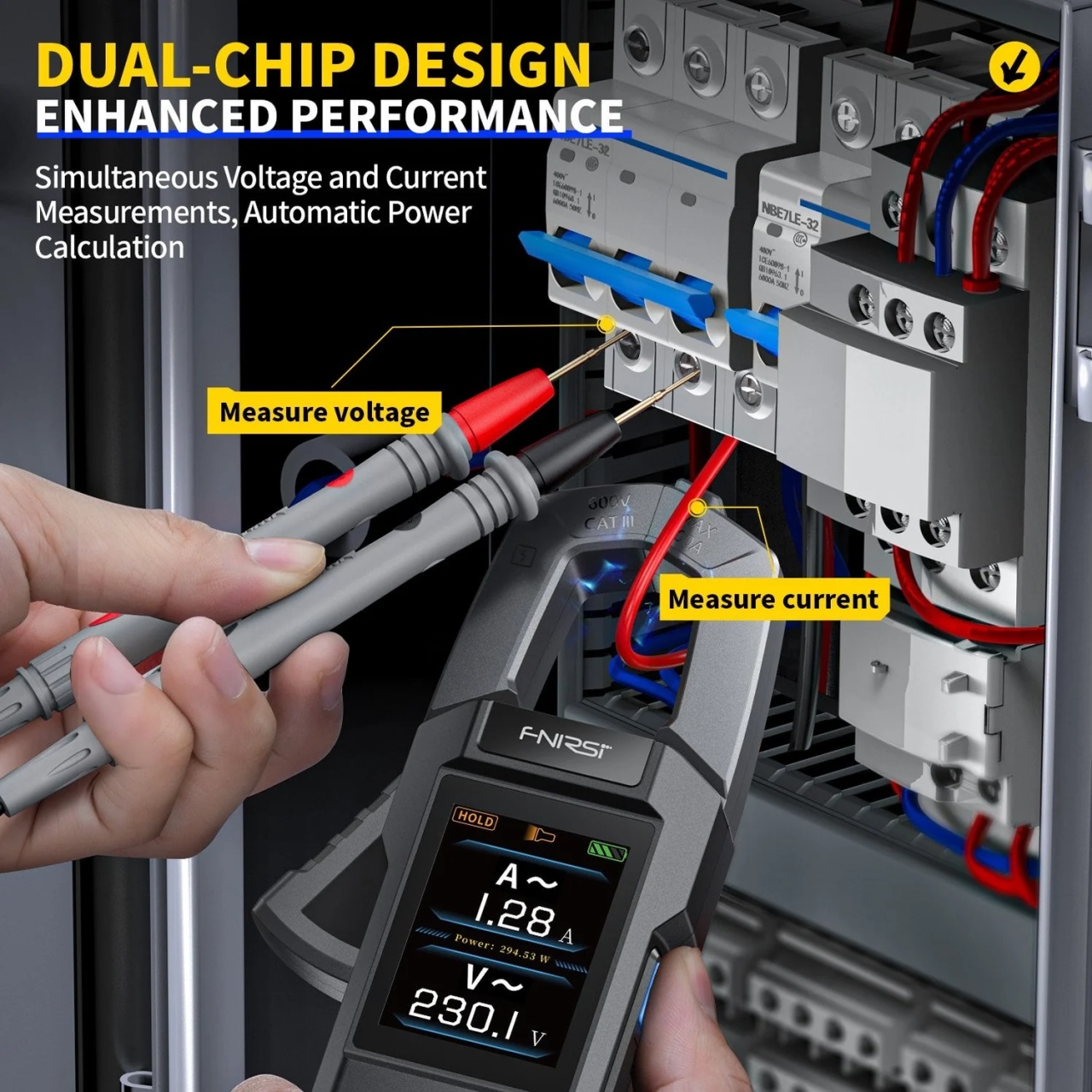

- Power Calculation: Support,

- Data Hold: Support,

- Data Storage and Viewing: Up to 30 groups of data,

- Language: Chinese / English,

- Brightness Adjustment: 10-speed adjustment,

- Auto Power Off: OFF / 5min / 15min / 30min,

- Firmware Upgrade: Support,

- AC Current: 4A / 40A / 600A,

- Resistance: 400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ.
