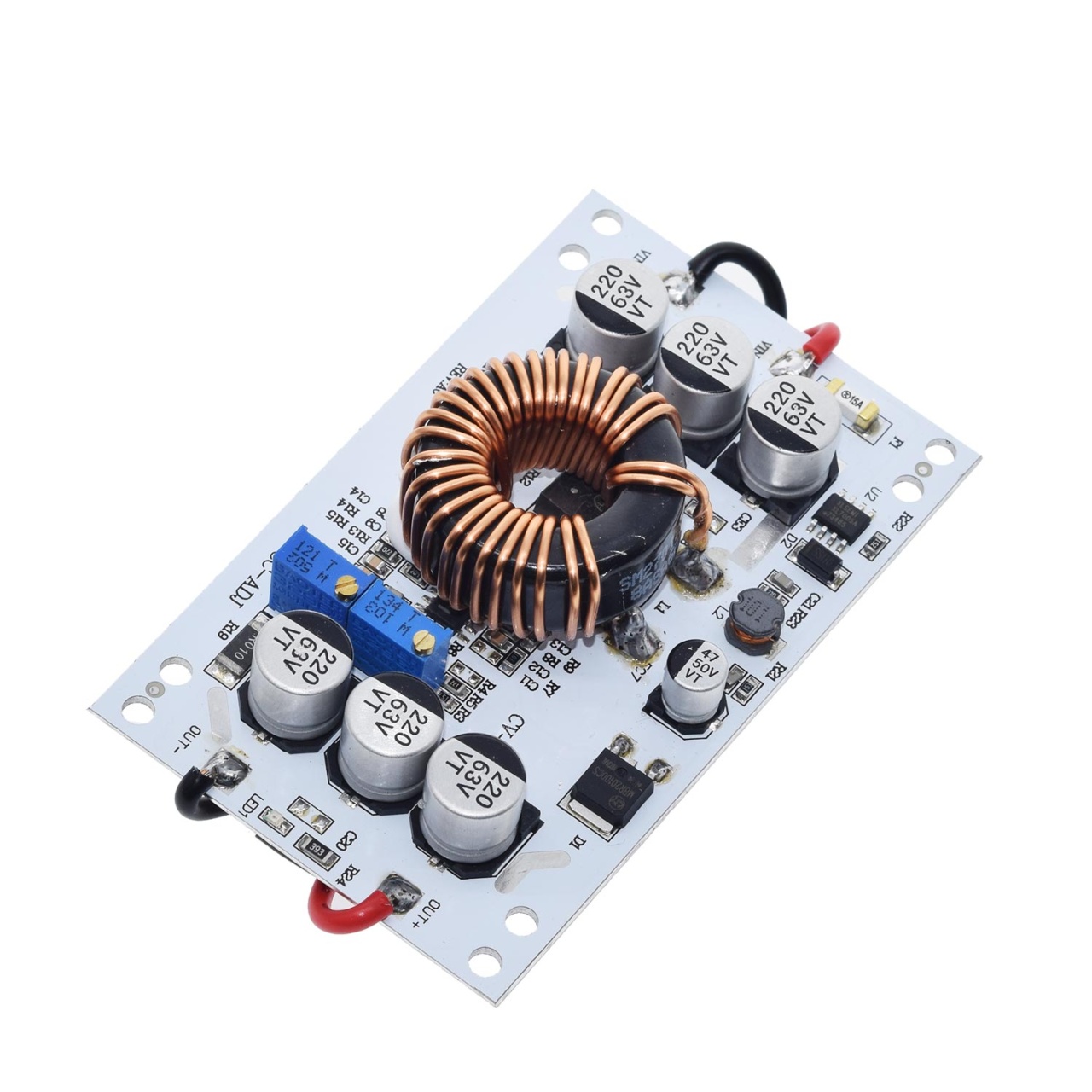

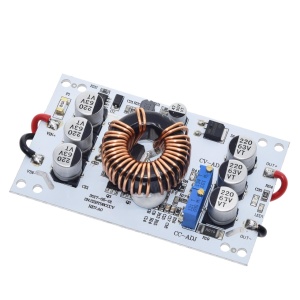

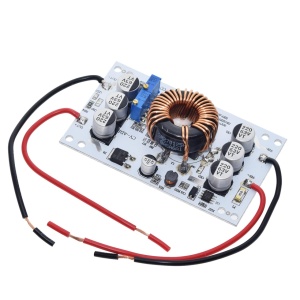

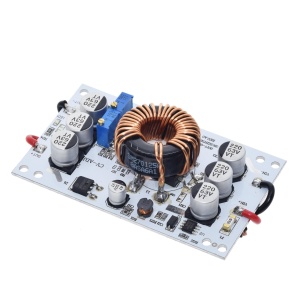

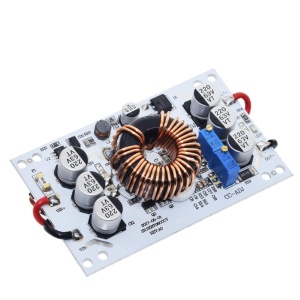

DC-DC step-up konvertor 10-60V/12-60V 10A

Opis

- 600W boost and constant current module,

- Non isolated boost module (BOOST),

- Input voltage: DC10V-60V,

- Input current: 10 (MAX),

- Static working current: 10mA (12V liters 20V, the output voltage, the more Gao Jing and too current will increase),

- Output voltage: 12-60V continuously adjustable (Default output 19V shipmentIf any other voltage is required, please explain to the cabinet. ),

- Output current: 10A MAX more than 6A please strengthen the heat dissipation (related to the input and output pressure difference, the greater the pressure difference, the smaller the output current),

- Constant current range: 0.2-10A,

- Output: = input voltage *10A, such as: input 12V*10A=120W, input 24V*10A=240W,

- Enter 36V*10A=1360W, enter 60V*10A=600W,

- Working temperature: -40~+85 degree (please strengthen heat dissipation when the ambient temperature is too high),

- Working frequency: 150KHz,

- Conversion efficiency: 92%-96% (efficiency and input, output voltage, current, pressure difference),

- Input back protection: no (pay attention to negative and negative),

- Installation way: 43mm screw hole,

- Connection mode: connection output,

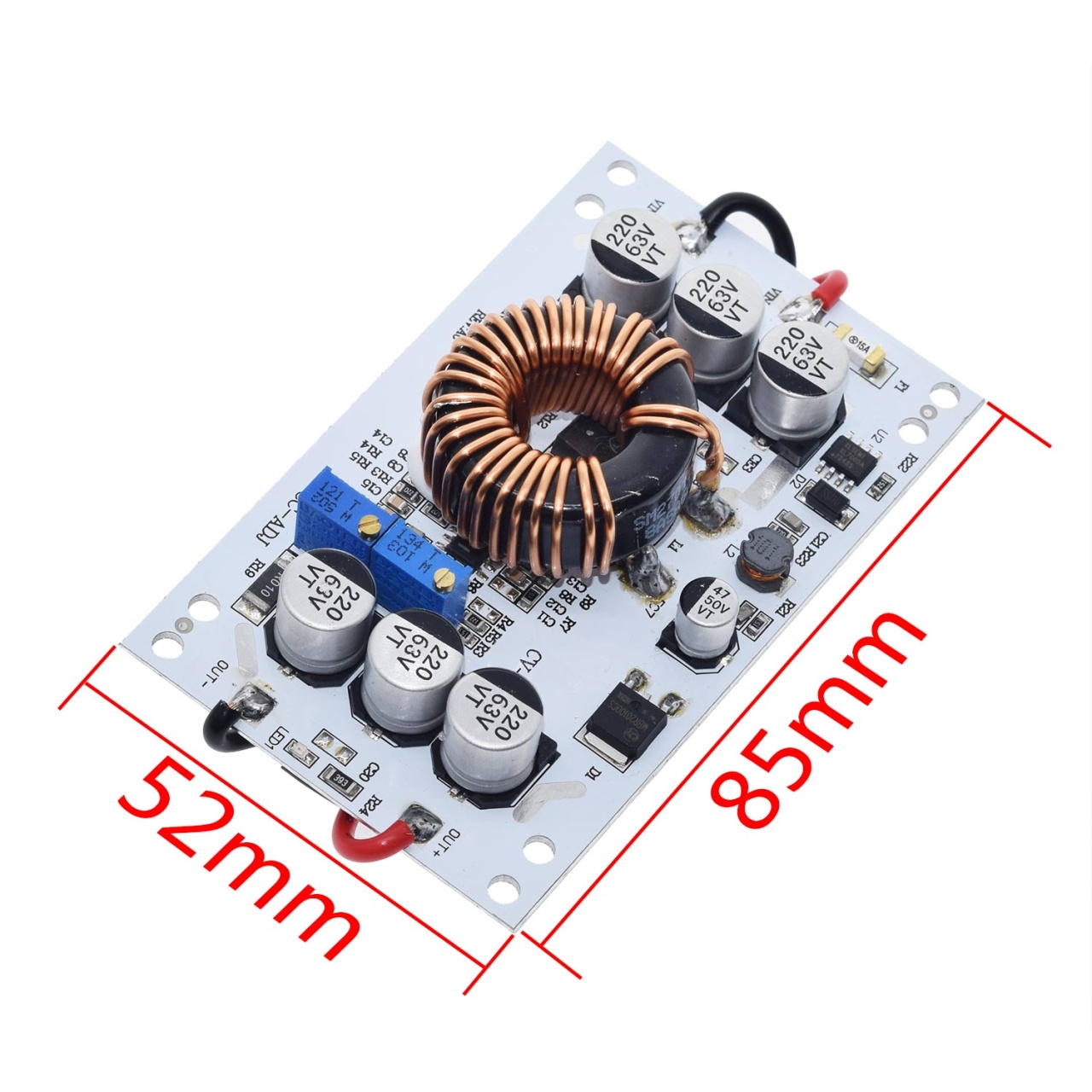

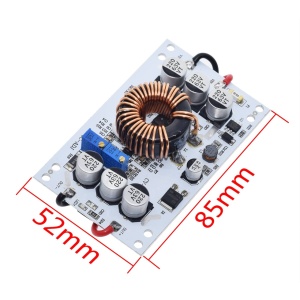

- Module size: long 85mm wide 52mm high 21mm,

- Module single weight: 80 grams.
