Generator signala SG-003A

Opis

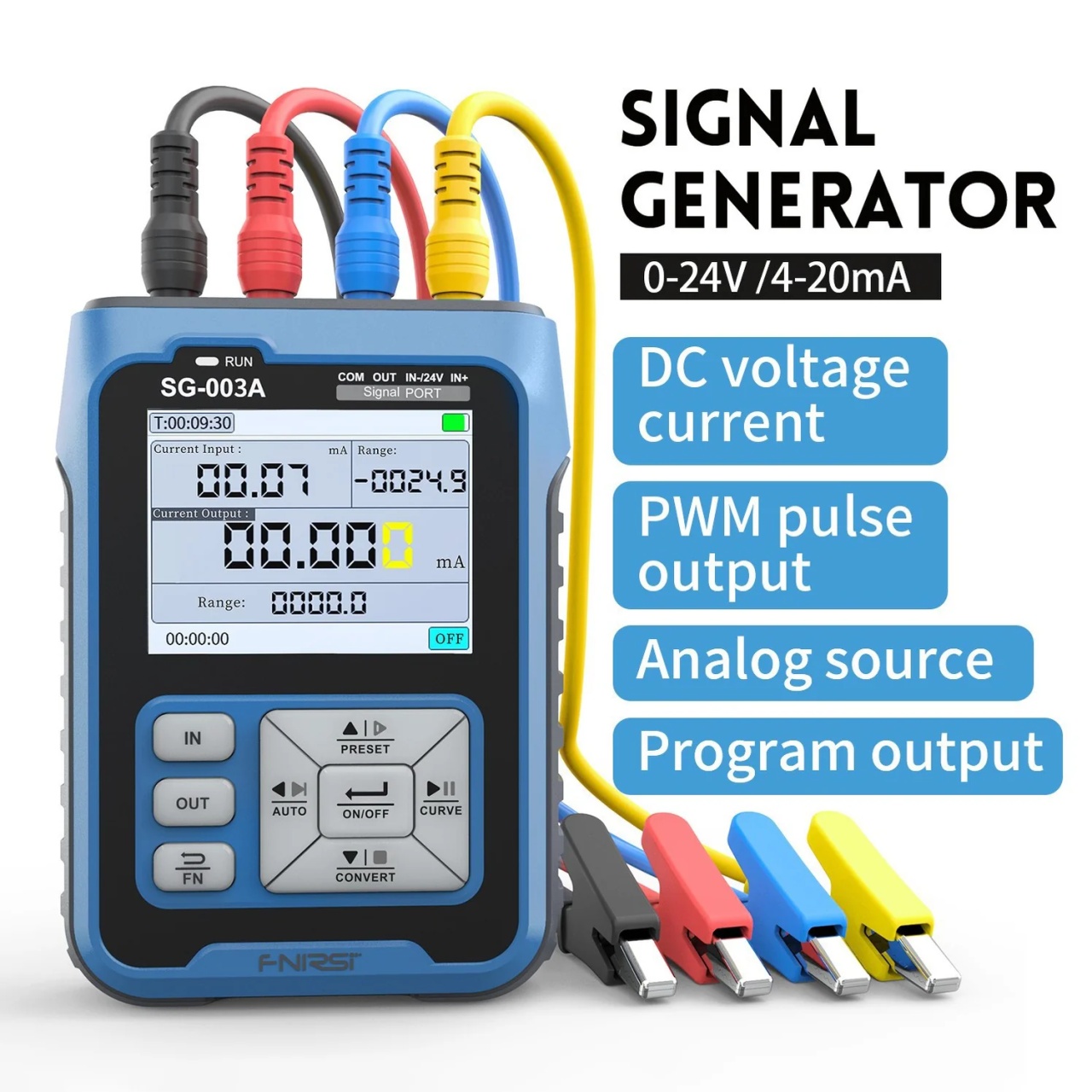

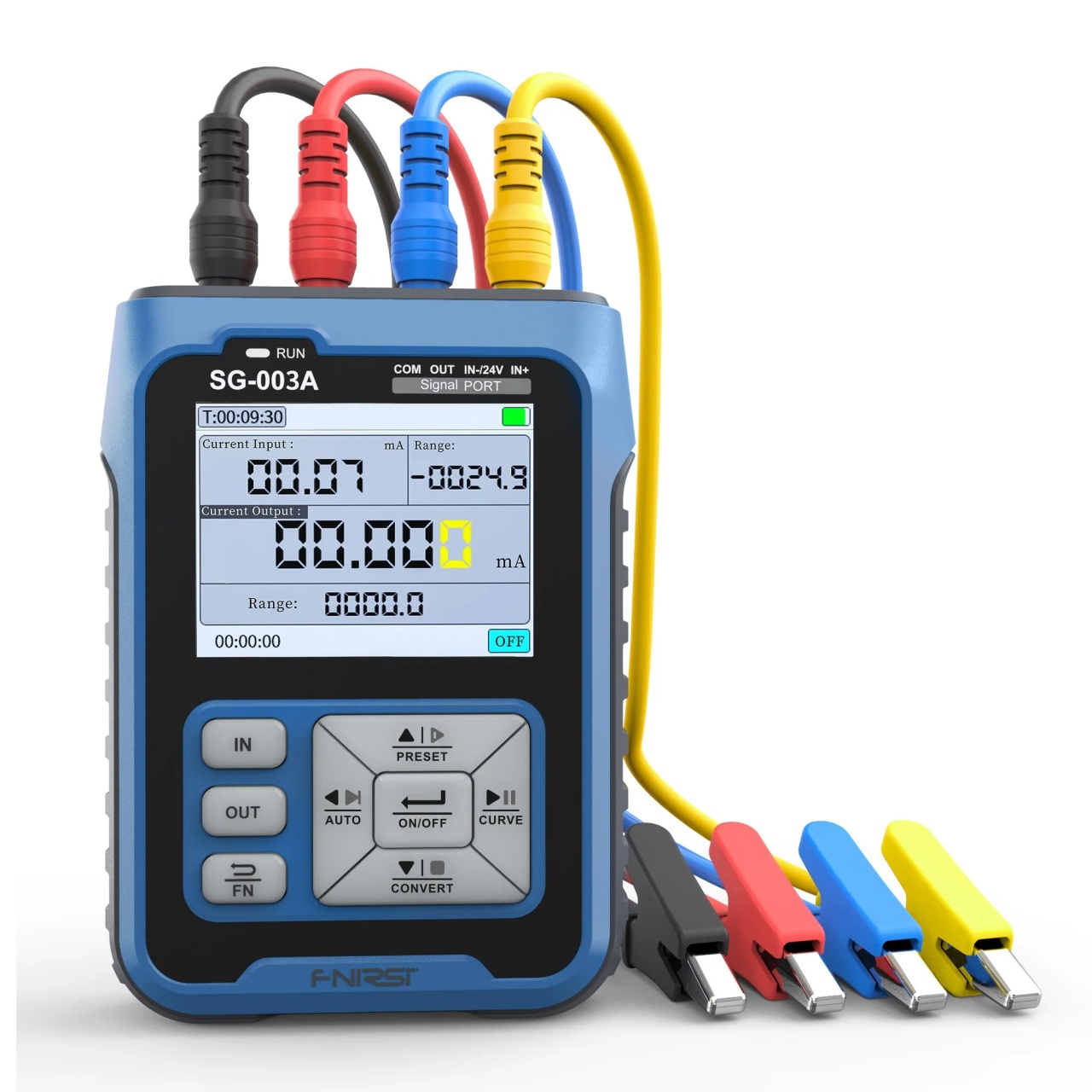

FNIRSI SG-003A signal generator is mainly used for debugging of industrial field PLC, process instrumentation, electric valve and so forth. Friendly operation interface is easy to use. The FNIRSI SG-003A signal generator is small and light but has a long standby time and high precision.Easy to carry when you go out to work. Adjustable button backlight and high-definition TFT color LCD screen make it more convenient for users to operate at night and during the day.

- Expect with the conventional signal input and output functions,

- Signals displayed as physical or engineering values, corresponding linearly,

- Voltage and current have automatic output function,it can choose a single rise,three modes of single drop and cycle,

- Four preset groups for quick output adjustment,

- With input to output conversion,voltage conversion active current mode,passive mode and current conversion voltage mode,

- The output has a custom function,the upper and lower output limits can be set arbitrarily,

- Displays input and output signal trends with adjustable sampling,

- Automatically adjusts curve within specified range over time,

- Voltage input diagram,current input diagram,the frame rate is 10 frames,

- PWM output can set frequency and duty cycle respectively,

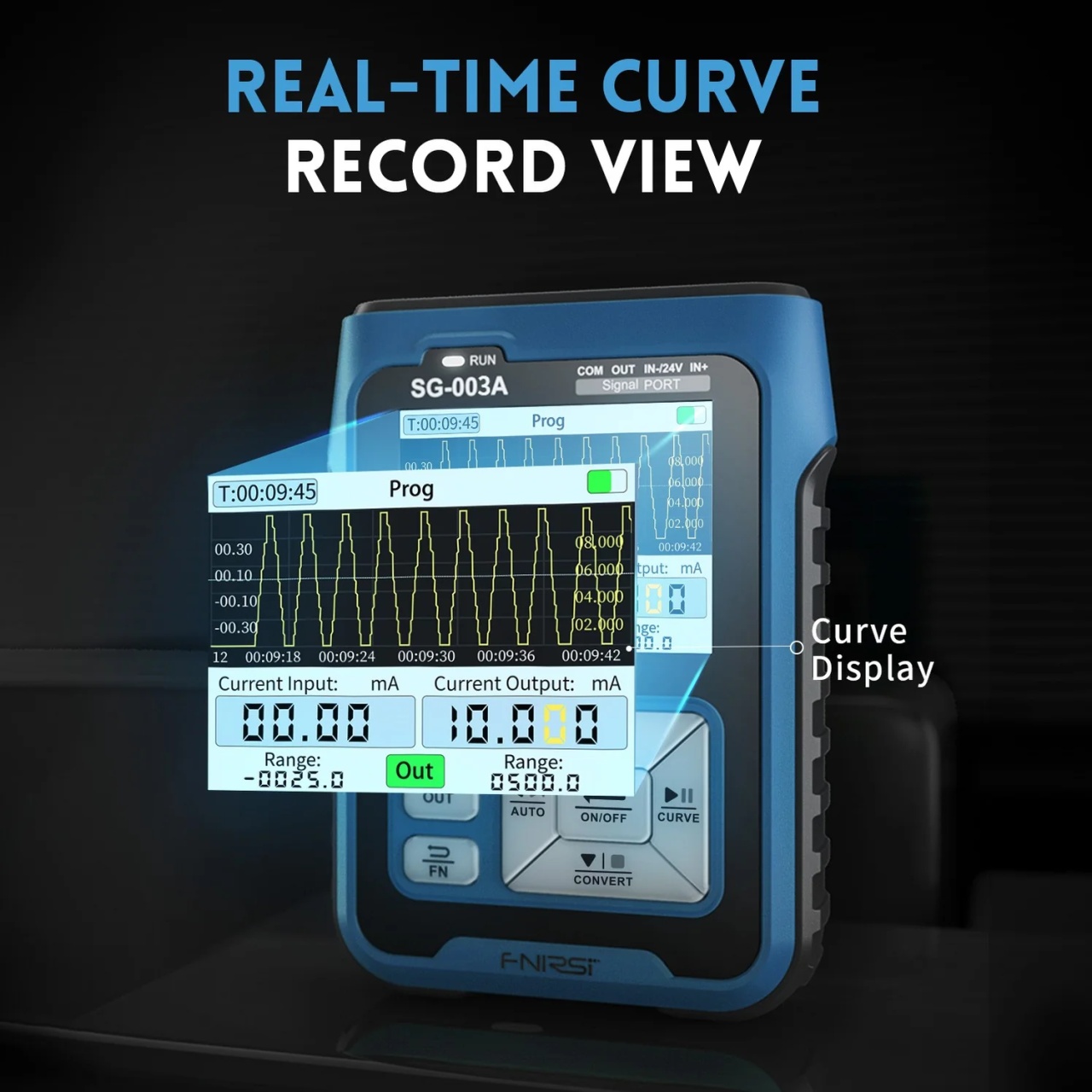

- Real-time curve:Real-time observation of changes in voltage and current,

- It is powered by a large-capacity lithium battery and is charged with a Type-c interface (5V).The capacity of the lithium battery is 3000mHA, fully charged in 4-6 hours, standby time is 26 hours, the using time varies, based on the usage(It can be 8-10 hours with 20mA continuous output),

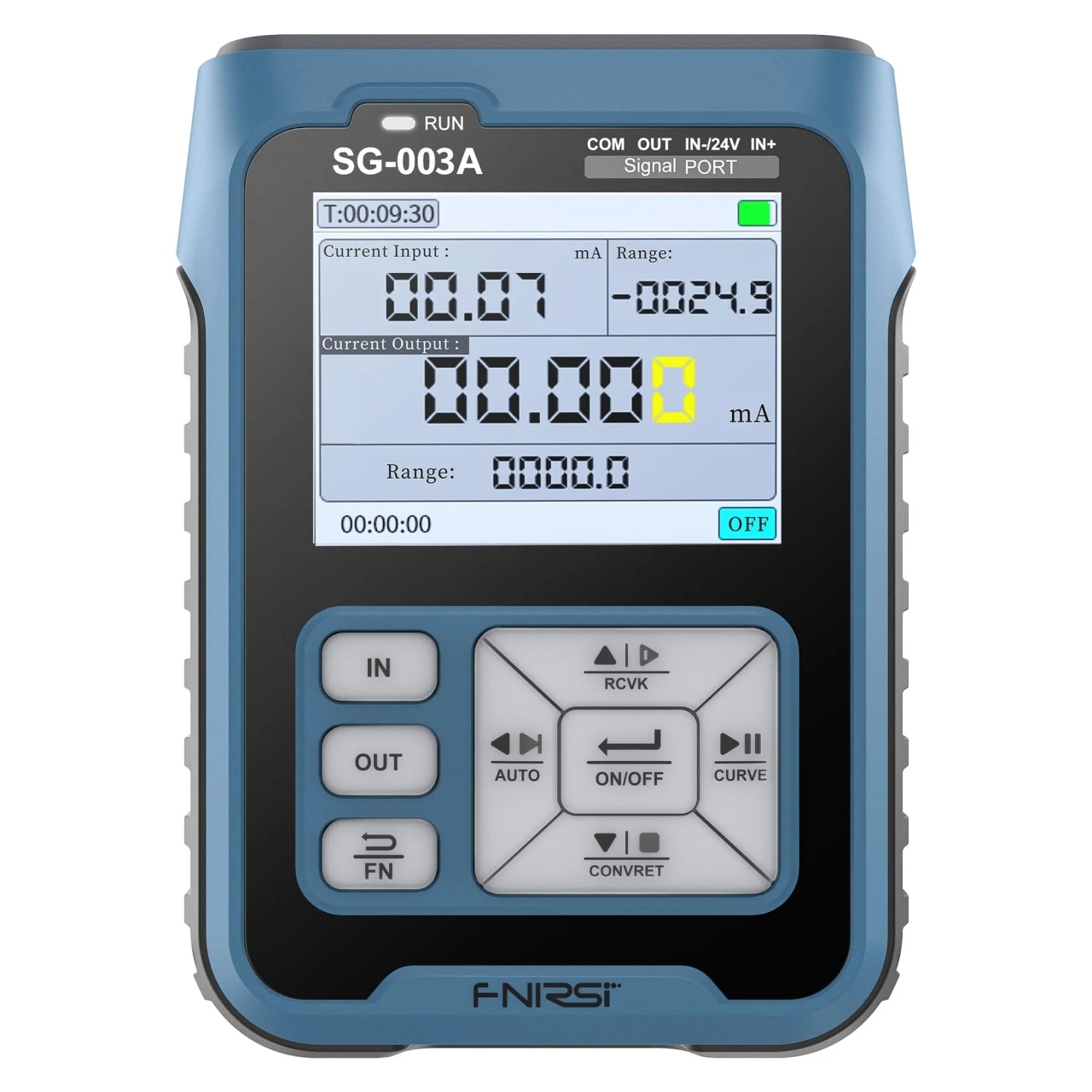

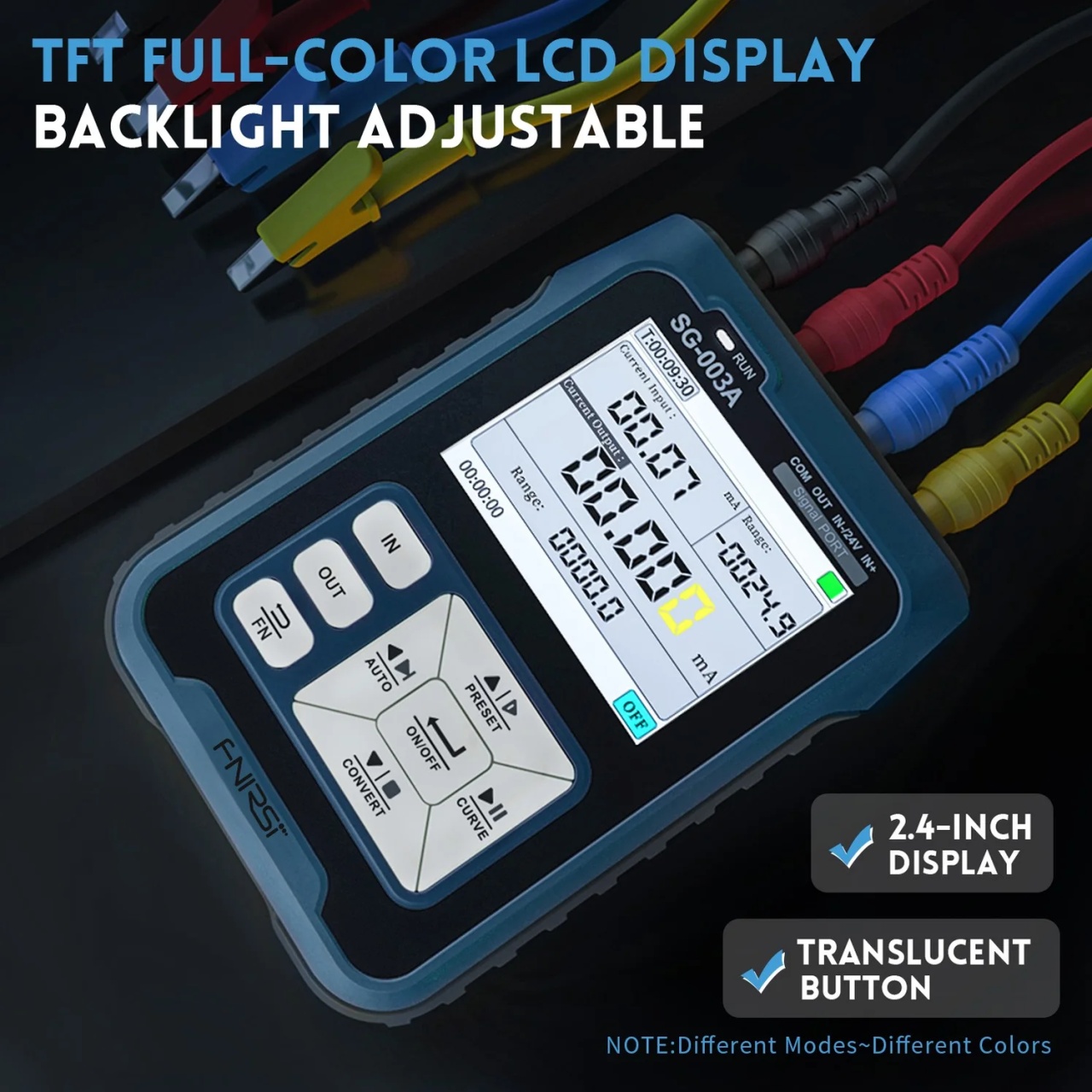

- The high-definition TFT color LCD screen makes the reading more eye-catching.The resolution is 240*320.Low power consumption,Maximum power consumption: 0.32W,

- FNIRSI SG-003A communicates via RS485 with configuration software or PLC,

- Firmware upgrade via USB emulated U disk,

- Brand: FNIRSI,

- Model: SG-003A,

- Activce Current Output: Range: 0~24mA,

- Resolution: 0.01mA,

- Precision: ±(0.1%+0.005),

- Max Load: 750Ω,

- Passive Current Output: Range: 0~24mA/Resolution: 0.01mA/Precision: ±(0.1%+0.005)/External Power Supply: 0~30V,

- Voltage output: Range: 0~24V/Resolution: 0.01V/Precision: ±(0.1%+0.005),

- 24V Loop: Range: 0~24mA/Resolution: 0.01mA/Precision: ±(0.1%+0.005),

- Frequency/PWM Output: Range: 0~9999Hz/Resolution: 5 digits/Precision: ±2%,

- Current Input: Range: 0~24mA/Resolution: 0.01mA/Precision: ±(0.1%+0.005),

- Voltage Input: Range: 0~30V/Resolution: 0.01V/Precision: ±(0.1%+0.005),

- Battery: A single 3.7V 3000mAh lithium battery power supply,

- Display Size: 2.4 Inch TFT Full Color LCD Screen,

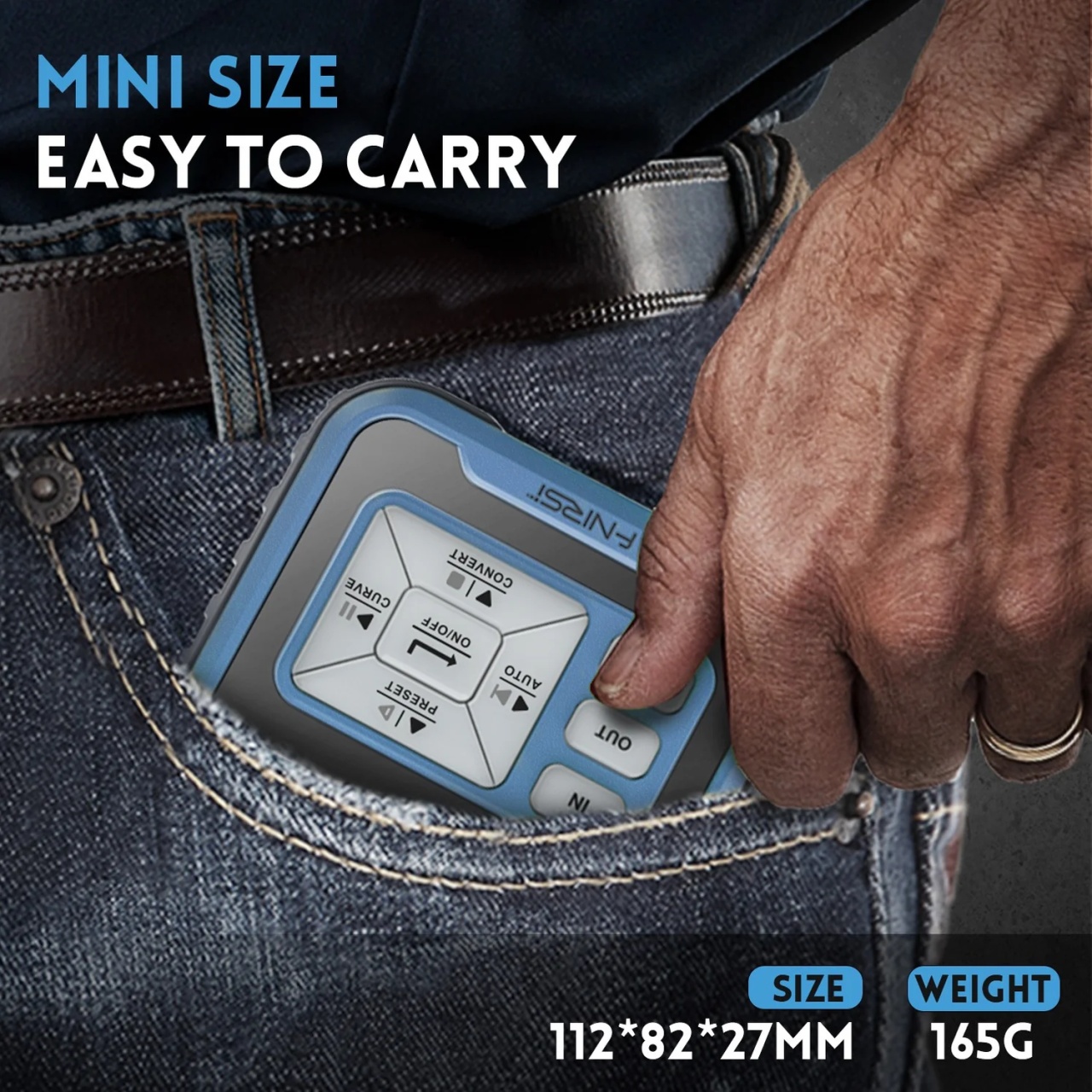

- Size: L82*W27*H112mm,

- Weight: 165g,

- Program Automatic Lift Output: Support,

- Preset Output: Support,

- Signal Linear Conversion Output: Support,

- Output Timing: Support,

- Modbus Slave: Support,

- USB Firmware Upgrade: Support,

- Real-time Curve: Support.
