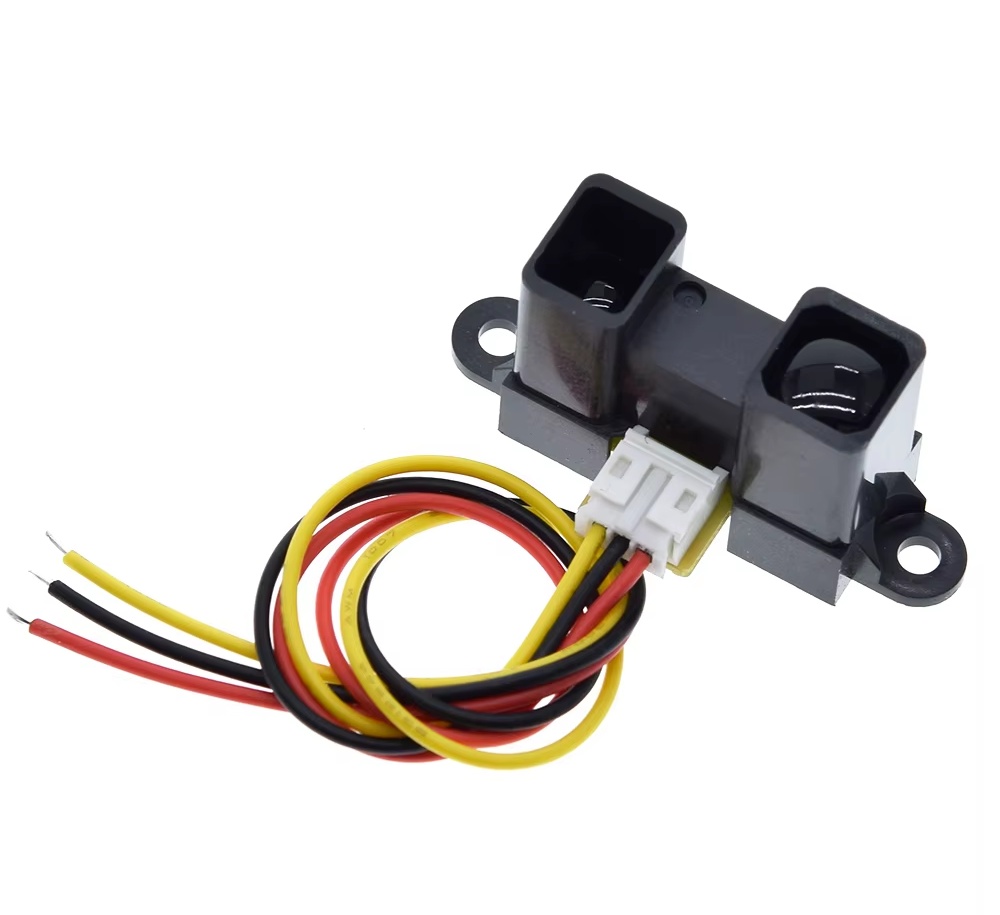

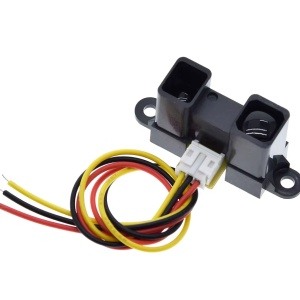

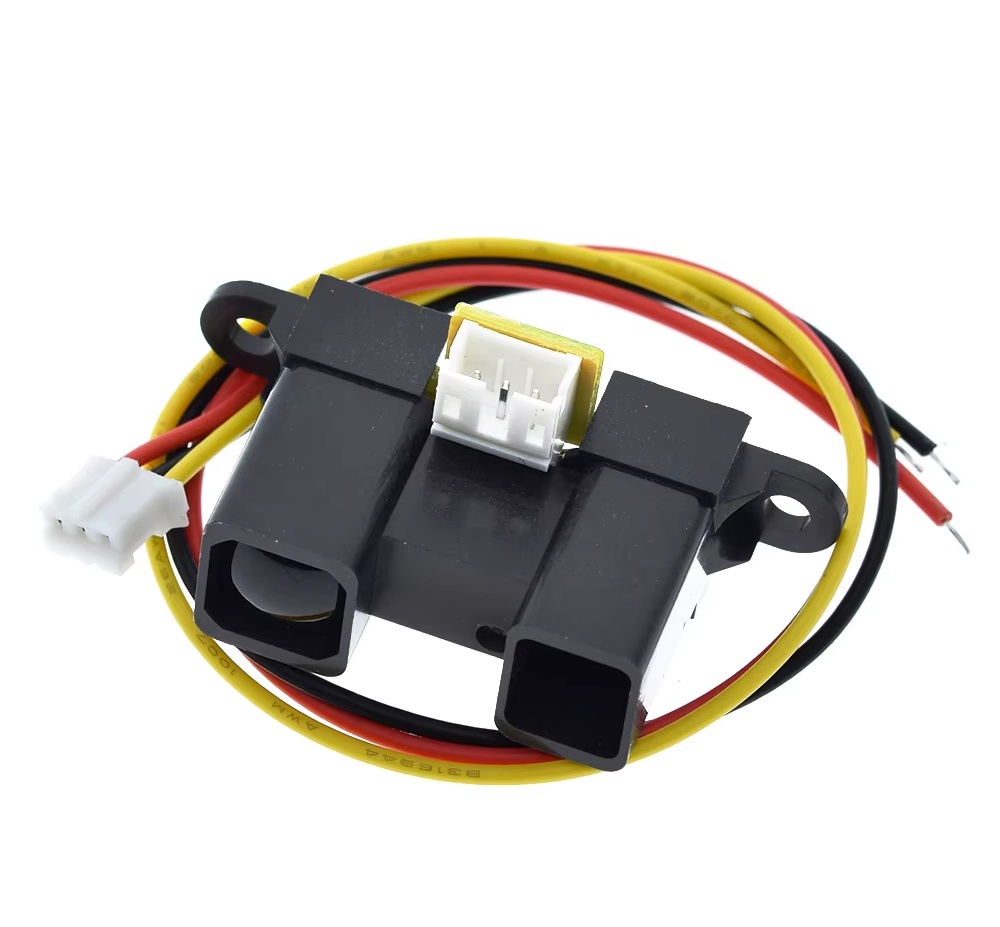

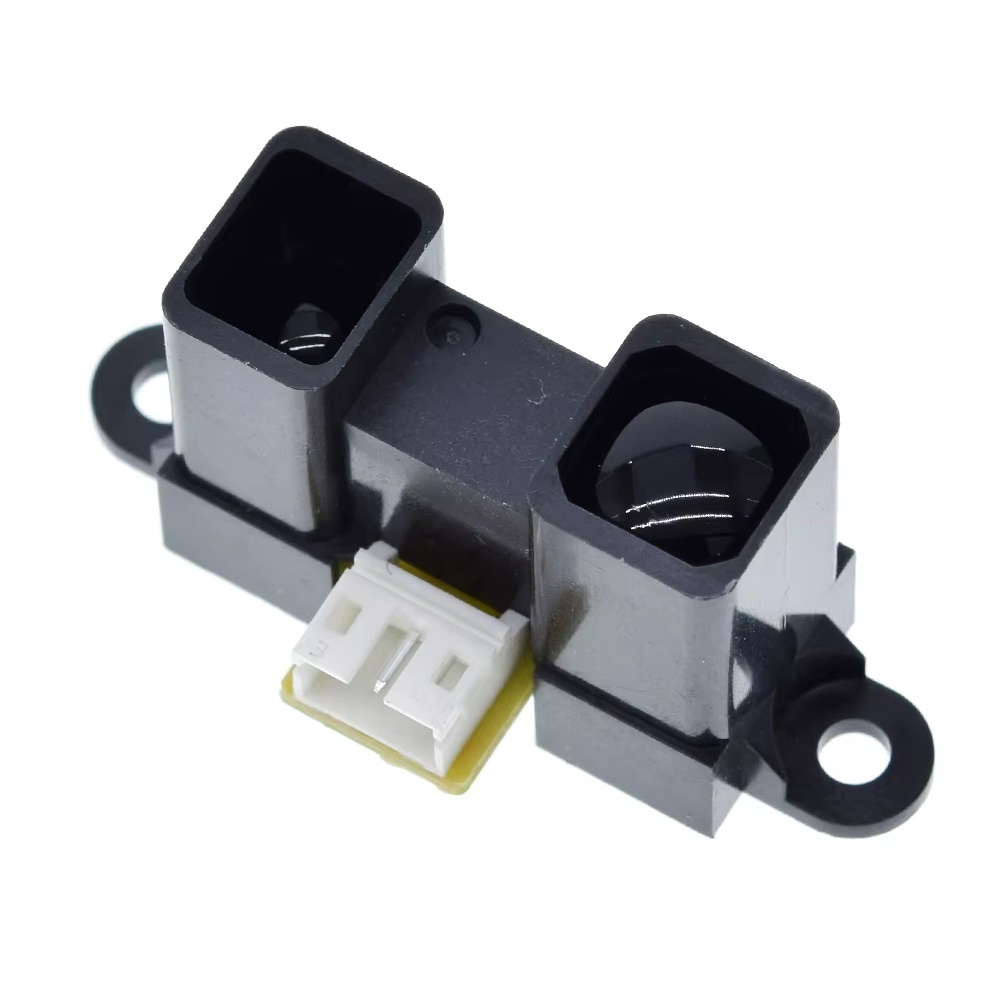

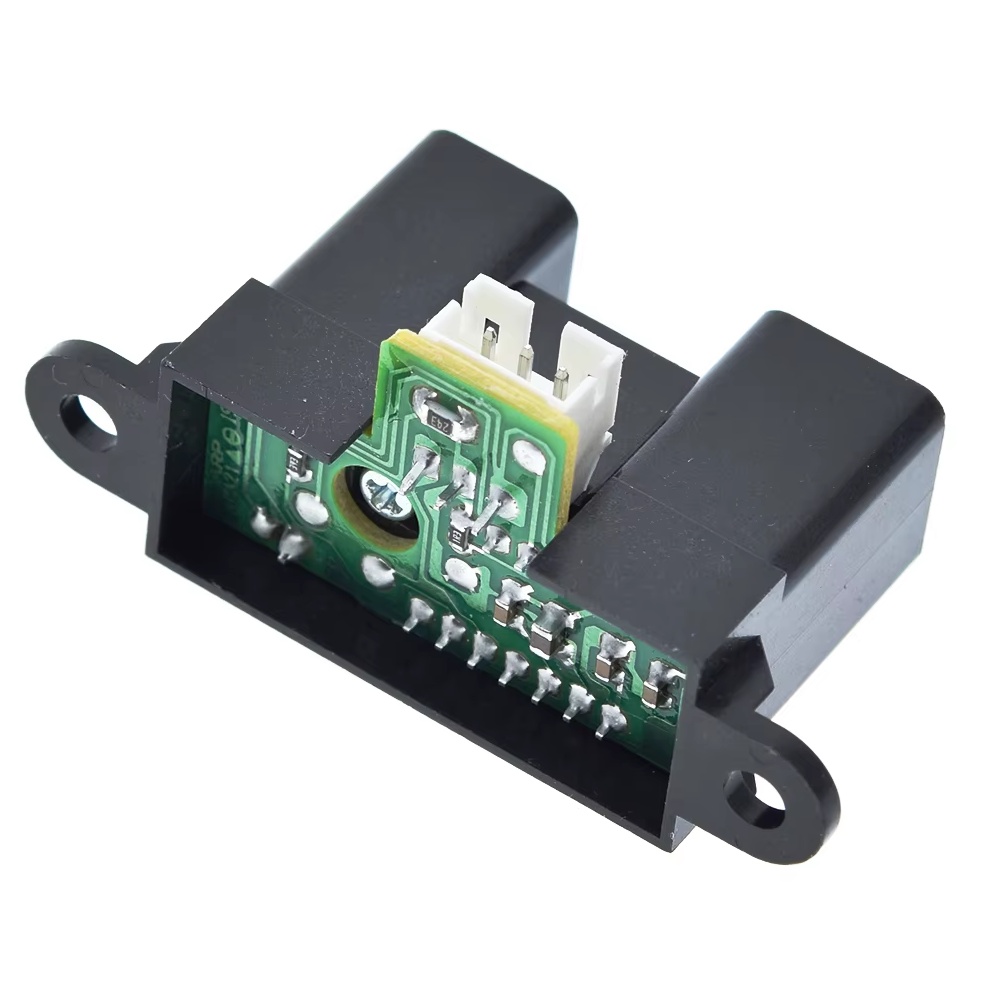

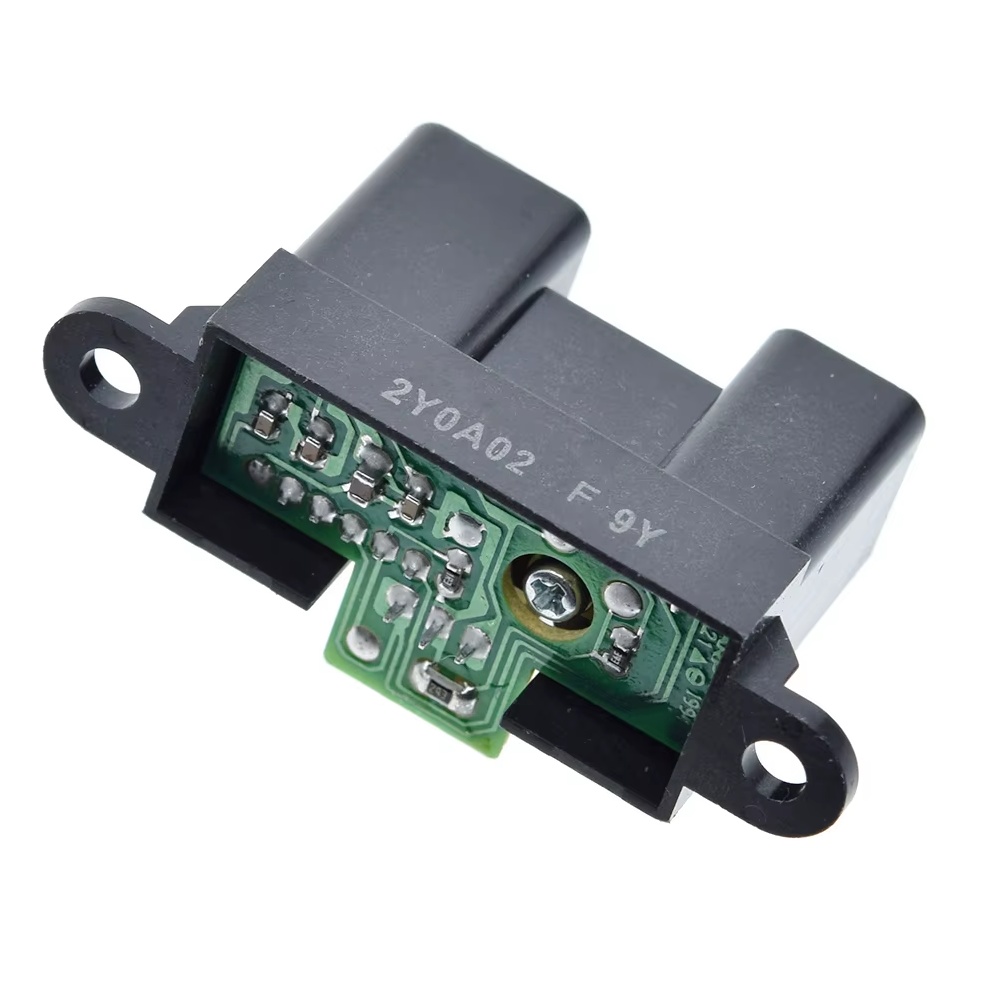

Infracrveni senzor rastojanja GP2Y0A02YK0F

Opis

- Operating voltage: 4.5 V to 5.5 V,

- Average current consumption: 33 mA (note: this sensor draws current in large, short bursts, and the manufacturer recommends putting a 10 µF capacitor or larger across power and ground close to the sensor to stabilize the power supply line),

- Distance measuring range: 20 cm to 150 cm (7.87-59.1 in),

- Output type: analog voltage,

- Output voltage differential over distance range: 2.05 V (typical),

- Update period: 38 ± 10 ms,

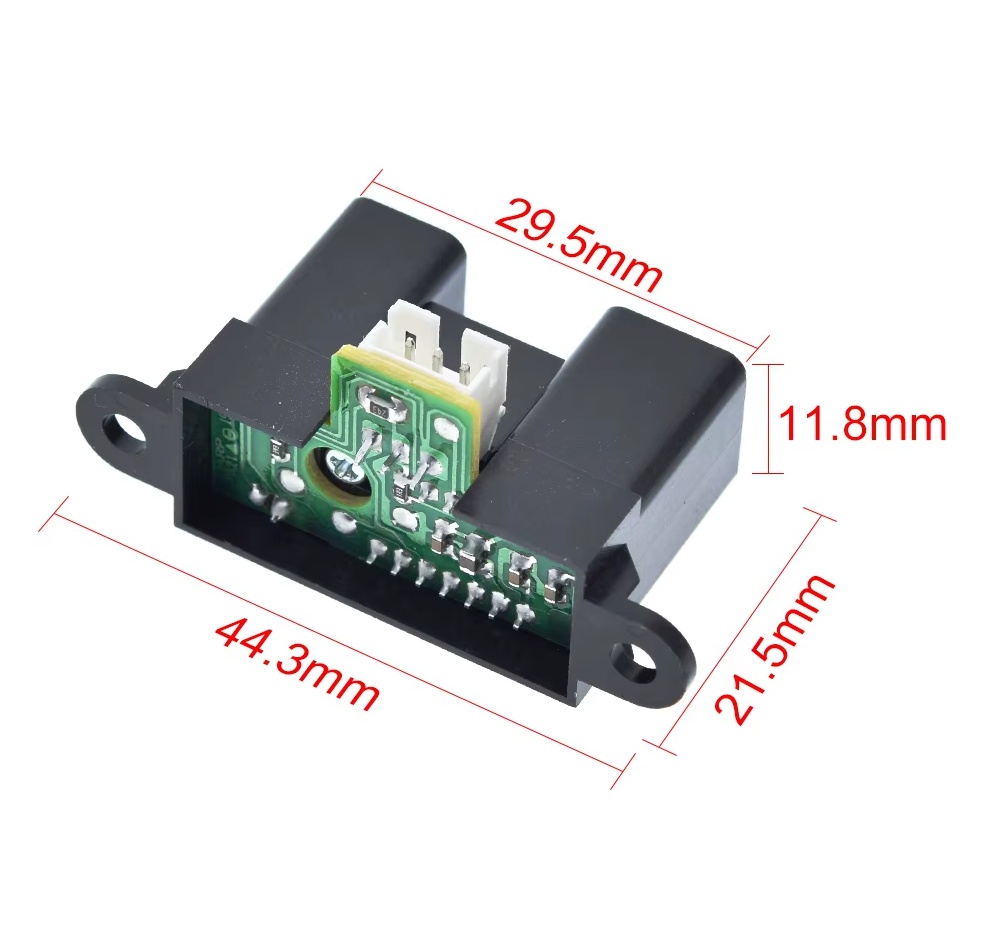

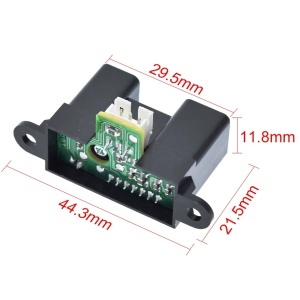

- Size: 44.5 mm × 18.9 mm × 21.6 mm (1.75″ × 0.75″ × 0.85″),

- Weight: 5 g (0.18 oz).
