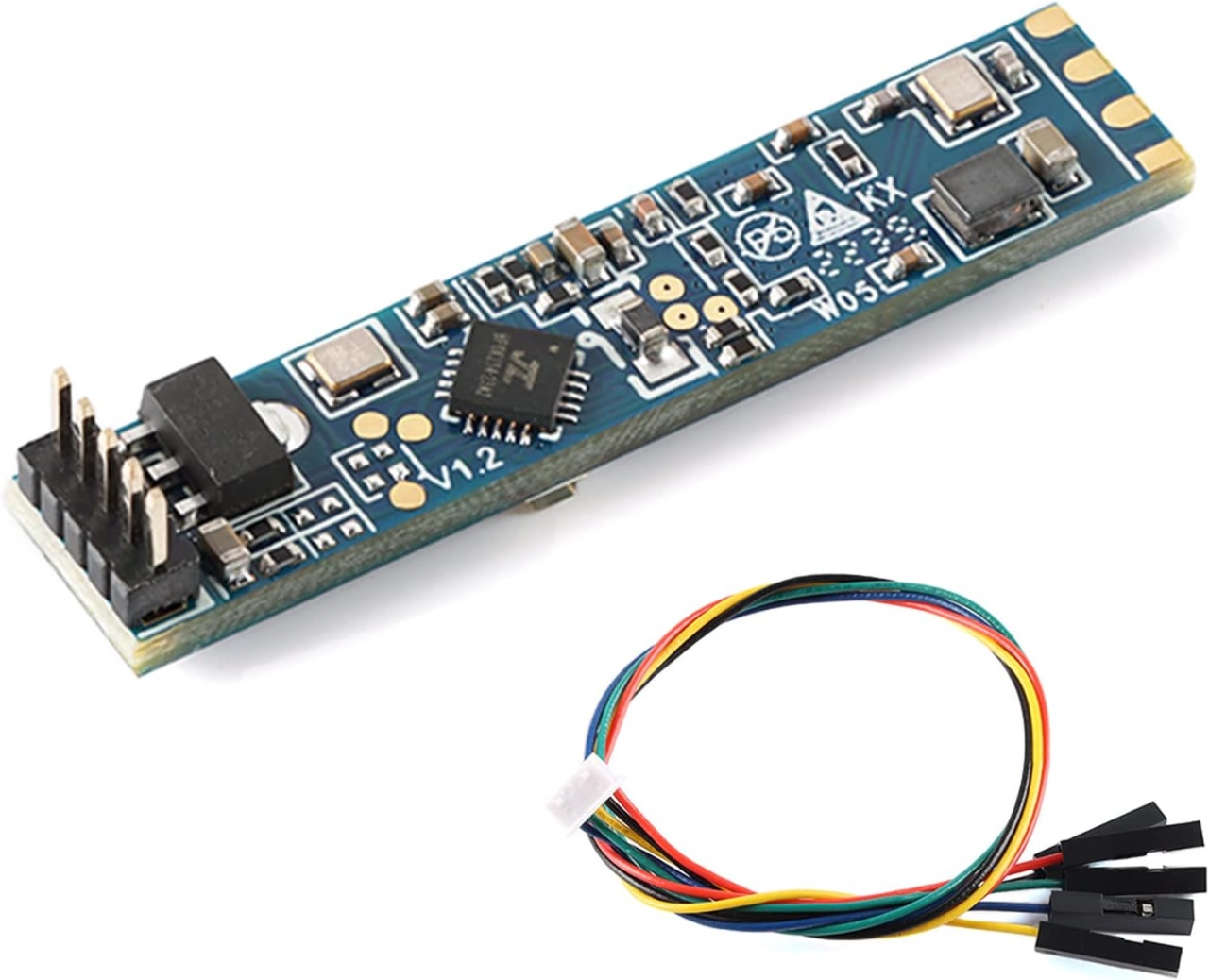

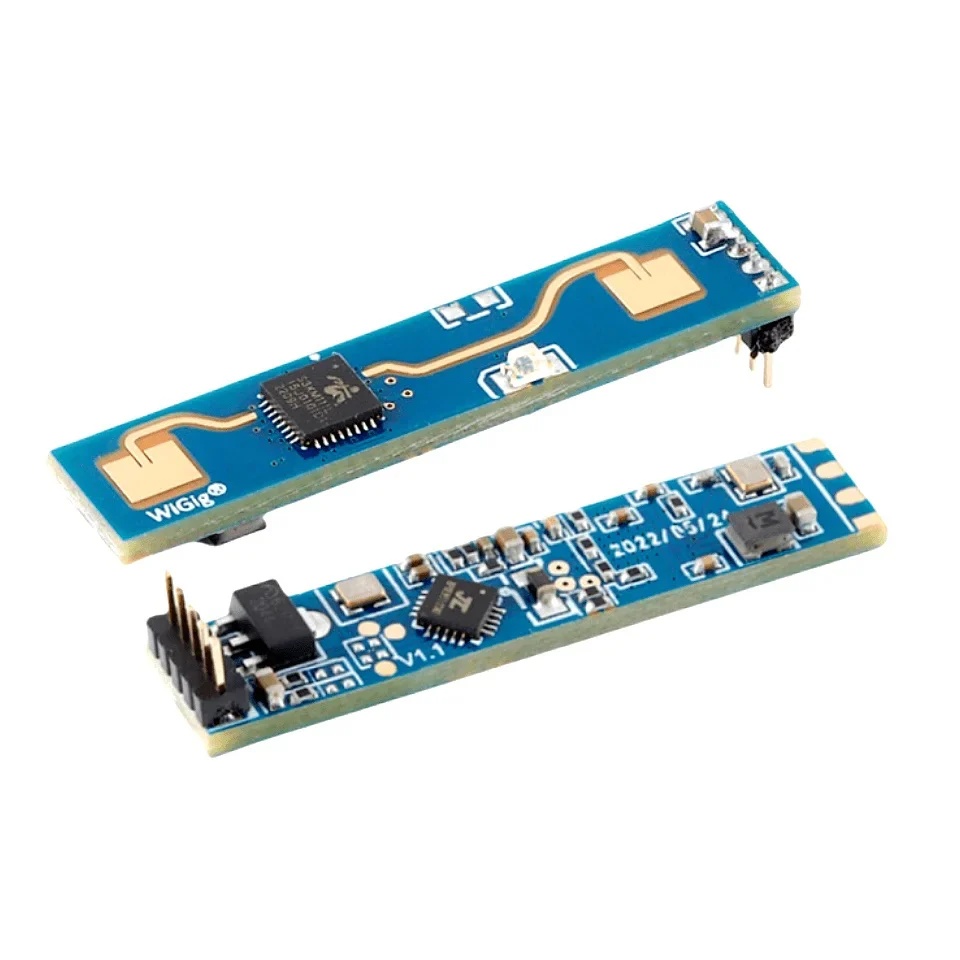

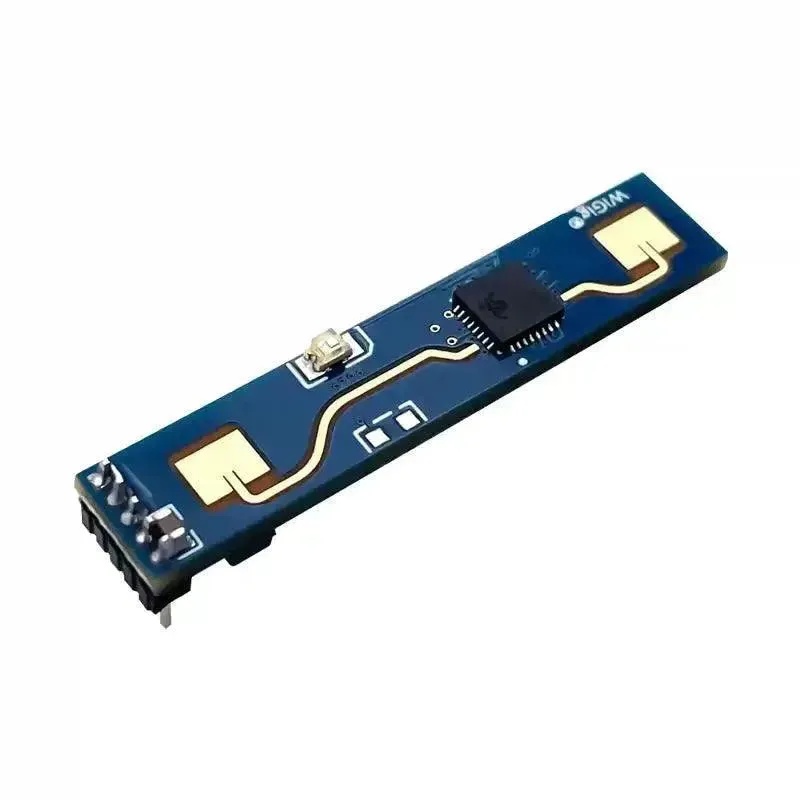

Mikrotalasni senzor pokreta HLK-LD2410B

Opis

The HLK-LD2410B is a state-of-the-art 24GHz human presence sensing module, designed for high sensitivity in detecting human movement and micro-movement within a set space. Using FMCW (Frequency Modulated Continuous Wave) radar technology, this module can identify human presence in both stationary and moving states, providing accurate real-time distance and activity data. Its Bluetooth connectivity allows for seamless integration with smartphone apps for configuration and monitoring, making it an excellent choice for smart environments. The HLK-LD2410B offers exceptional precision and adaptability. With an adjustable detection range of 0.75m to 6m and configurable sensitivity settings, it’s perfect for various indoor scenarios. Its plug-and-play design and compatibility with multiple output options, including GPIO and UART, provide flexibility for integration into intelligent devices and systems. Whether you're designing a smart home, office, or industrial application, this sensor delivers reliability and advanced functionality.

- Uses FMCW for accurate human presence detection, even in micro-movement states,

- Adjustable range from 0.75m to 6m with a +60° detection angle,

- Easily connect to your phone app for configuration and monitoring,

- Achieves a resolution of 0.75m for precise detection,

- Supports GPIO and UART outputs with serial port ASCII data,

- Operates in extreme temperatures (-40°C to +85°C) and complies with CE/FCC certification standards,

- Operates at 5V with a current of ~79mA,

- Frequency: 24G-24.25GHz,

- Modulation Method: FMCW,

- Detection Distance: 0.75m to 6m (adjustable),

- Detection Angle: +60°,

- Power Supply: 5V,

- Current: ~79mA,

- Output Level: 3.3V,

- Sweep Bandwidth: 250MHz,

- Environmental Temperature: -40°C to +85°C,

- Data Format: Serial port ASCII output,

- Interface Type: 1.27mm x 5PIN pin arrangement.
