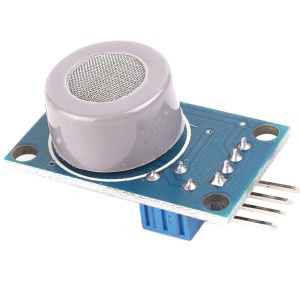

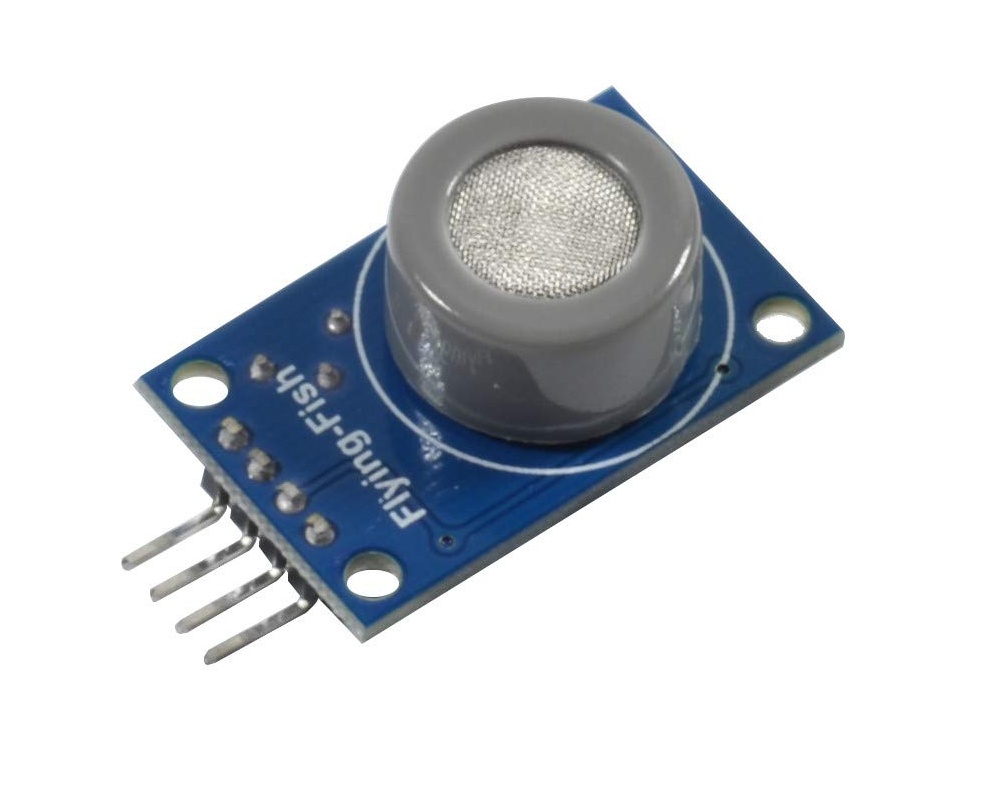

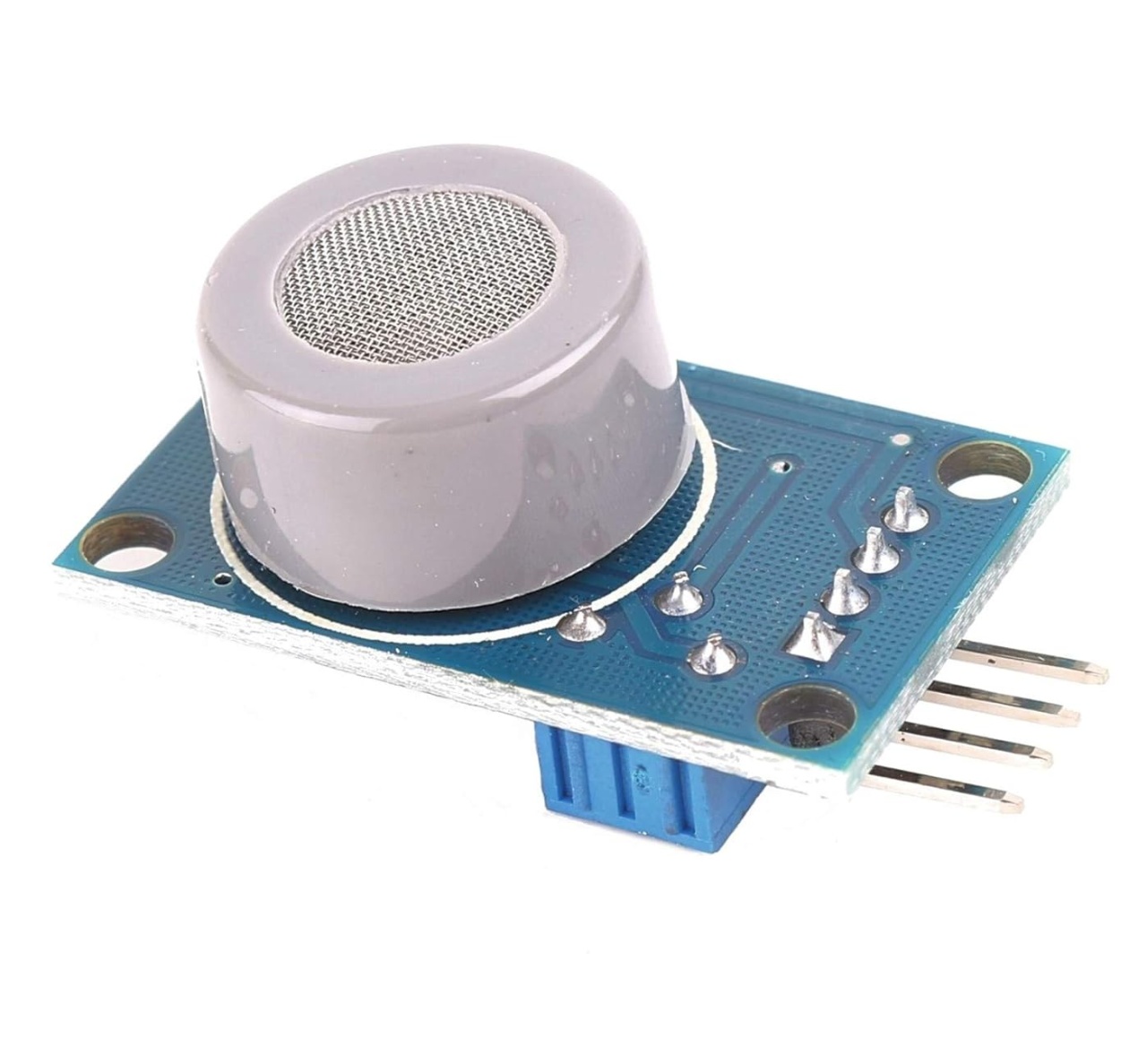

MQ-9 senzor zapaljivih gasova

Opis

MQ9 Gas Sensor is a Metal Oxide Semiconductor (MOS) type Gas Sensor of MQ Gas Sensors family involving MQ 2, MQ 4, MQ 3, MQ 135, etc. It is mainly used to detect gases like Carbon Monoxide, Methane, and Propane, etc. This MQ9 Smoke Sensor contains a sensing element, mainly aluminum-oxide based ceramic, coated with Tin dioxide (SnO2), enclosed in a stainless steel mesh. Whenever gas comes into contact with the sensing element, the resistivity of the element changes. The change is then measured to get the concentration of the gases present. It has a small heating element present which is needed to preheat the sensor to get it in the working window. It can detect LPG, Propene, Hydrogen, Carbon Monoxide, and Methane Gas concentrations. It finds uses in detecting gas leakage in pipelines, Alarm application in case of a gas leak at home as CO is a very harmful gas and can kill a person if present over 300PPM.

- Operating Voltage is +5V,

- Can be used to Measure or detect LPG, Propane, CO, and Methane,

- Analog output voltage: 0V to 5V,

- Digital Output Voltage: 0V or 5V,

- Long life and Low Cost,

- Heater consumption ≤350mW,

- The Sensitivity of Digital Output pin can be varied using the potentiometer.
