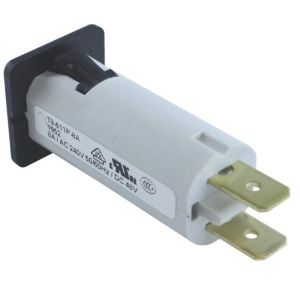

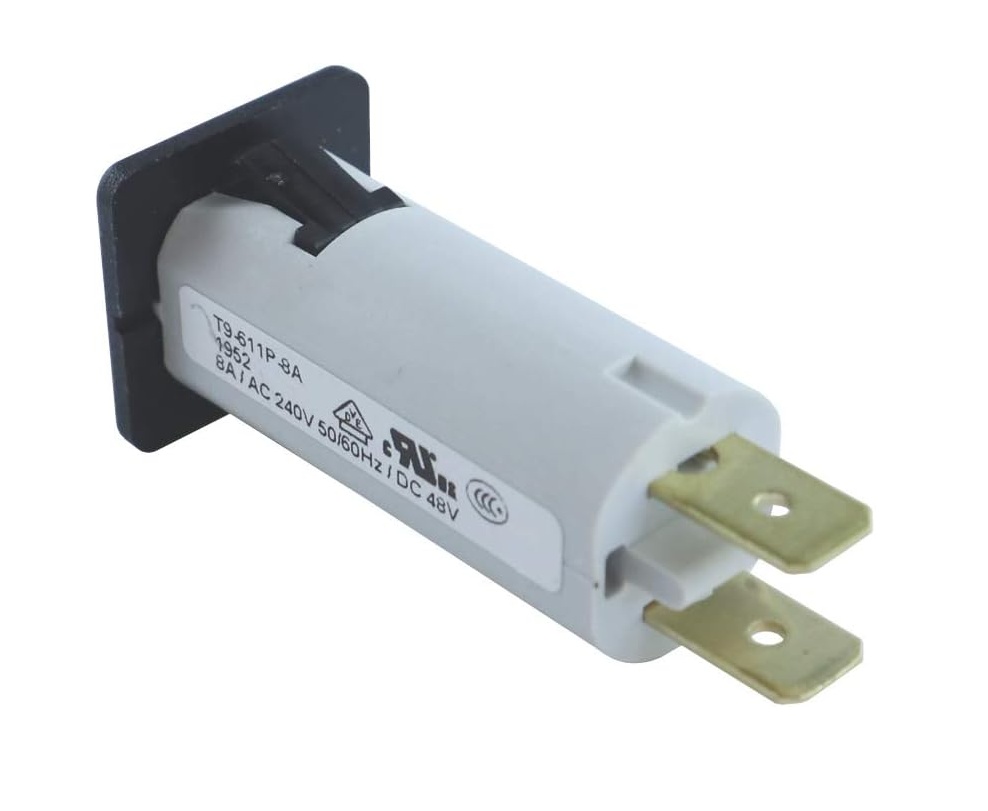

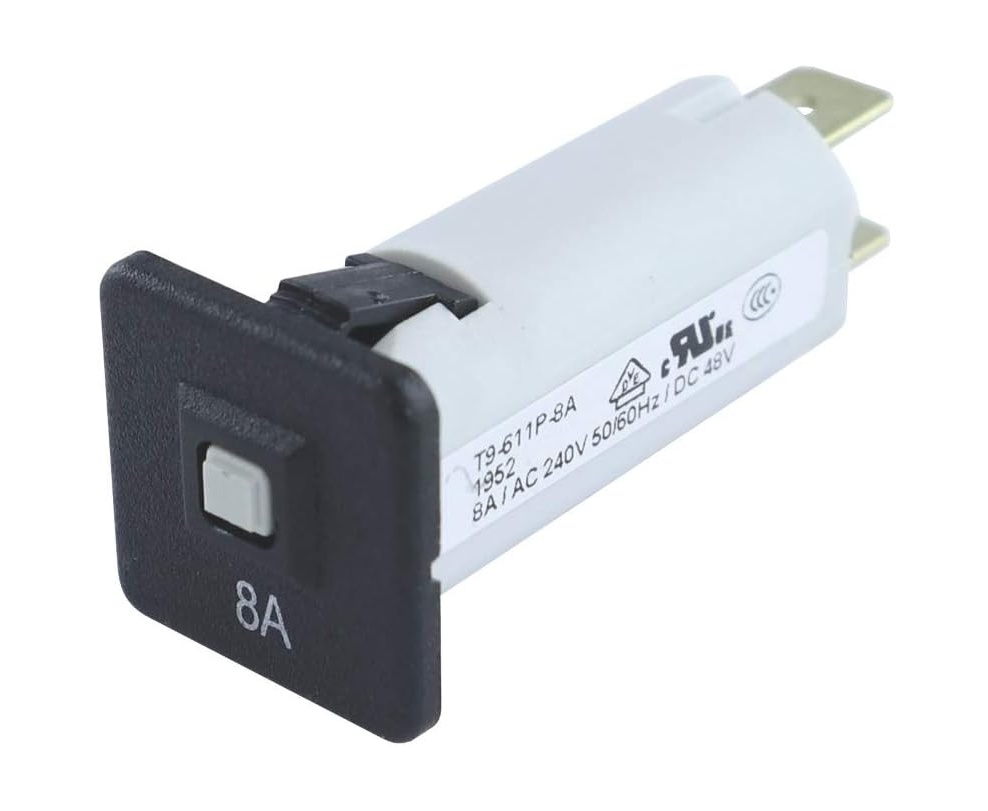

Osigurač automatski T9-611P 10A

Opis

Schurter T9-611P is 1-pole thermal device circuit breaker for installation in a 16 mm bore. Fuse holder design overload circuit breaker is universally suitable for DC and AC applications. Ideal replacement for fuse holders with safety fuse. No replacement fuse is necessary, easy to reset by pressing the white button. Suitable for use in electrical appliances, cable reels, boats, trucks, caravans, solar systems and much more.

- Nominal voltage AC: 240 V, 50/60 Hz.

- Nominal voltage DC: 48 V.

- Rated current: 10 A.

- Mounting type: snap-in

- Connection: 6.3 mm flat plug, soldering.

- Installation diameter: 16 mm.

- Installation depth: 44 mm.

- Operating temperature: -5 to +50 °C.

- Front protection: IP40.

- Overall dimensions (W x H x D): 19 x 19 x 47.4 mm.
