Programator AVR mikrokontrolera

Opis

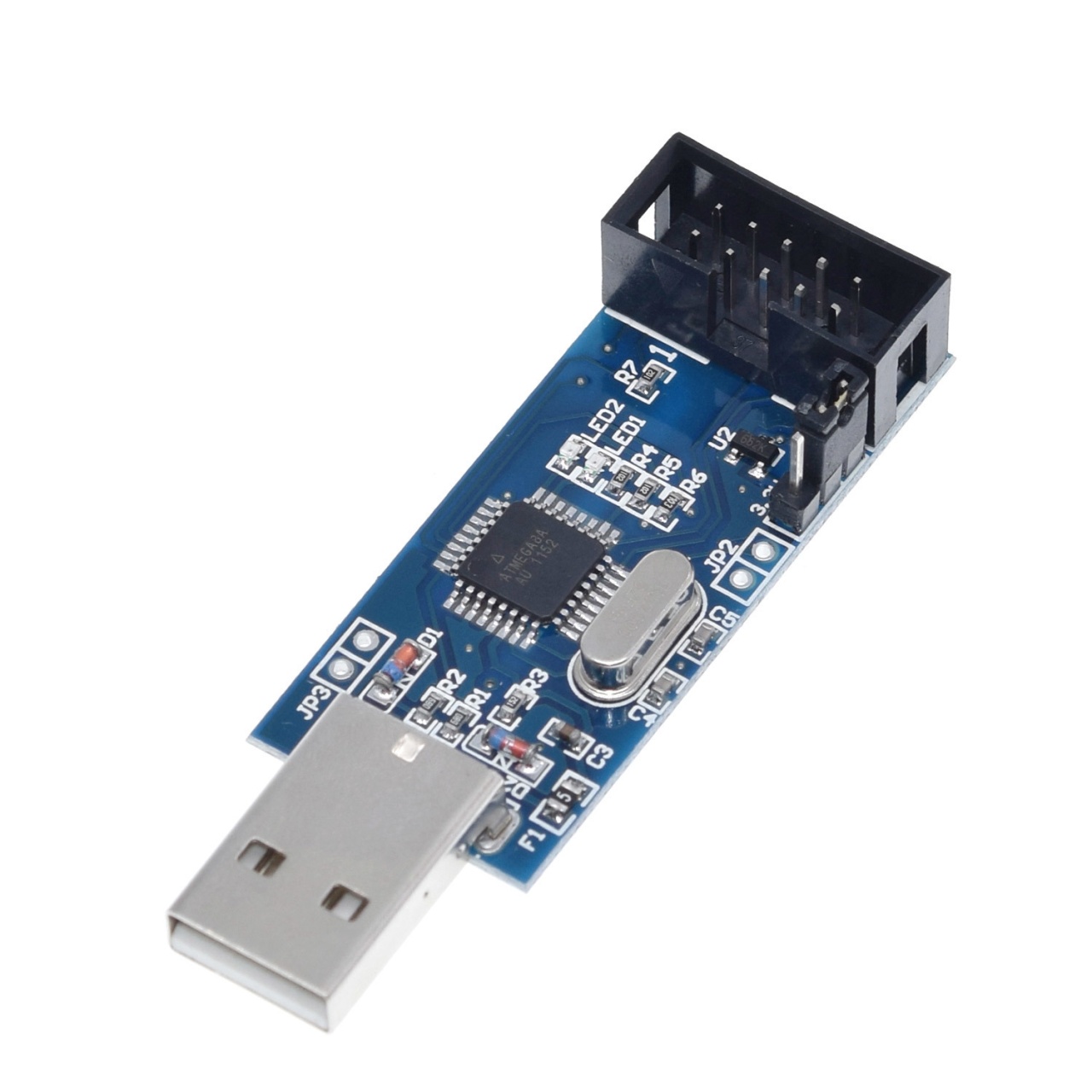

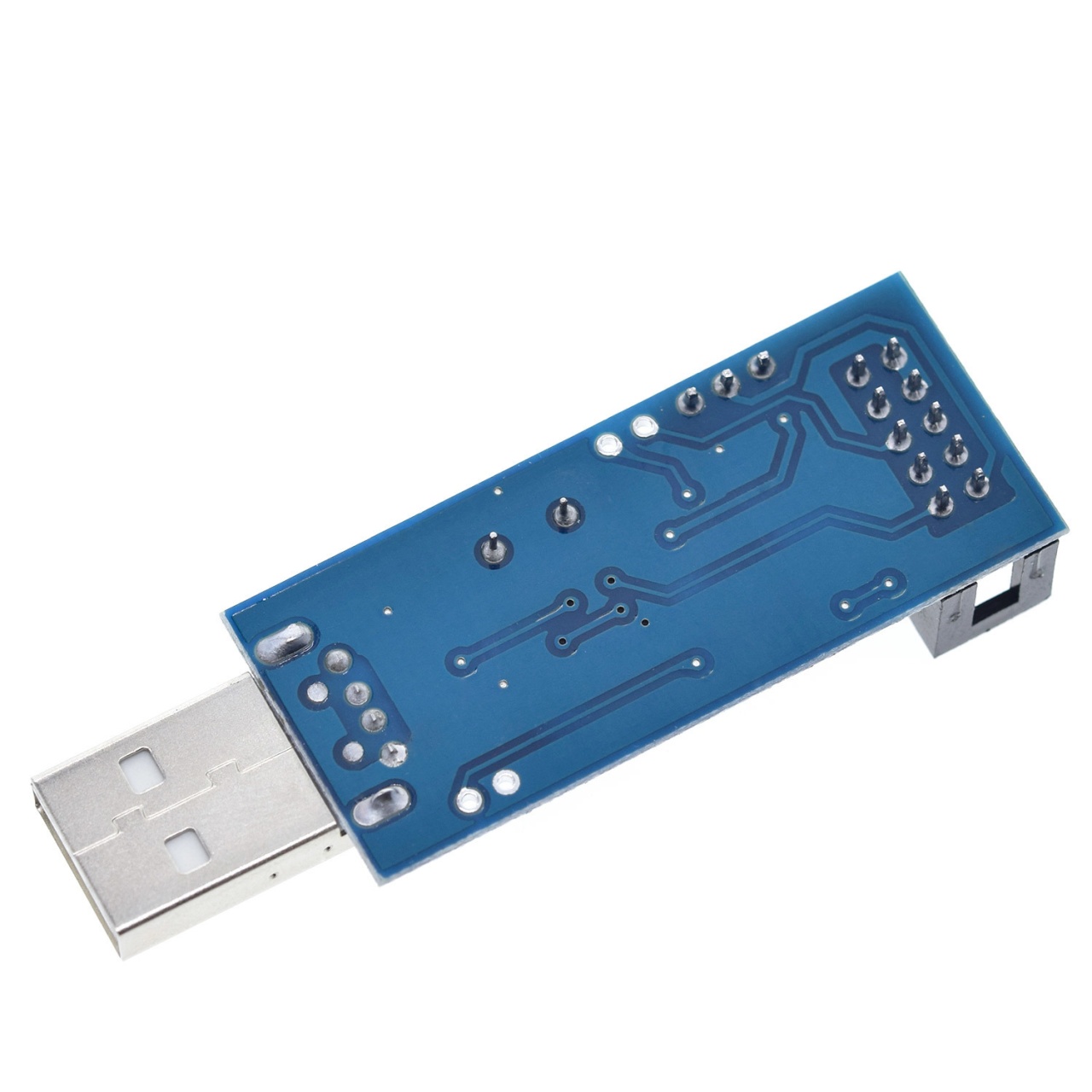

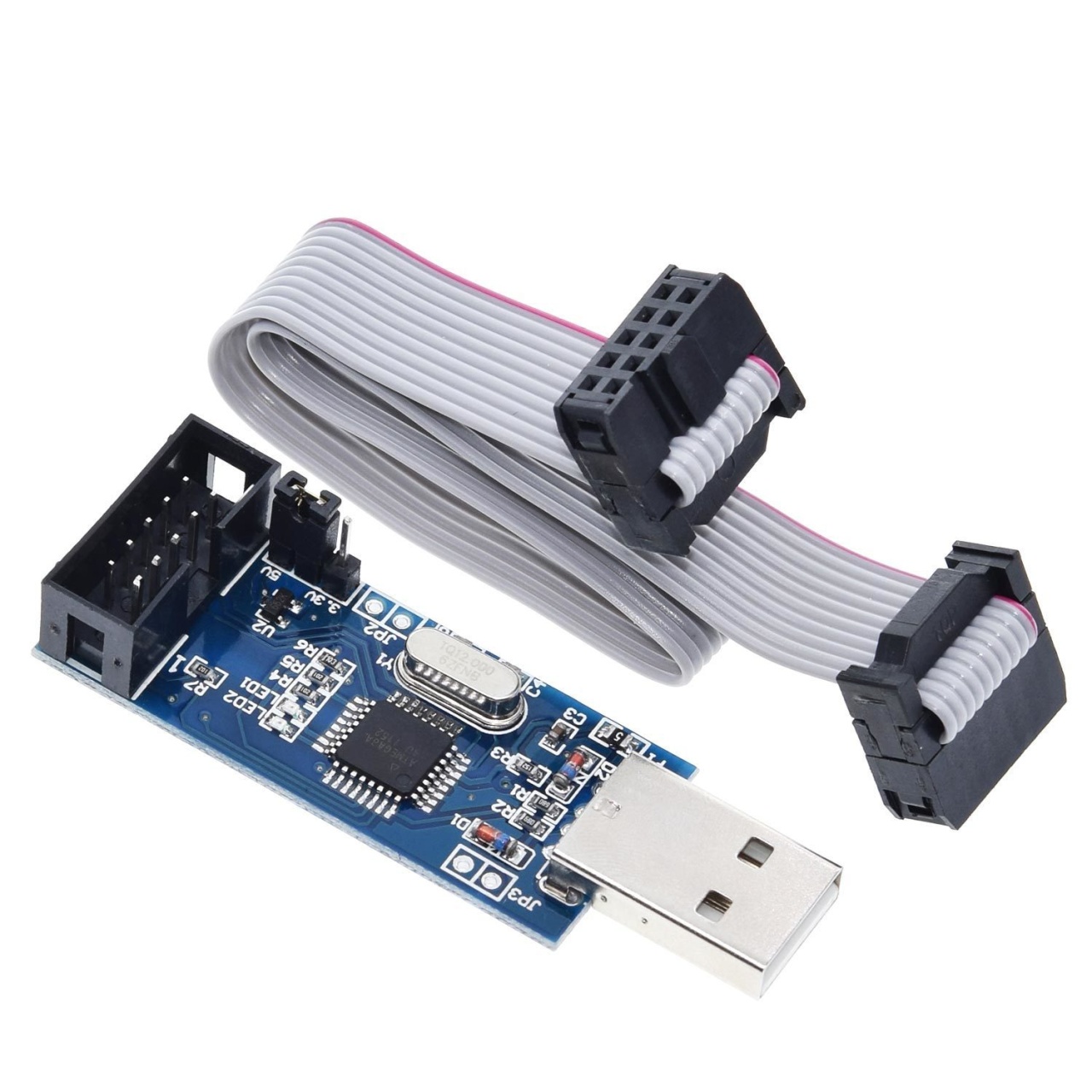

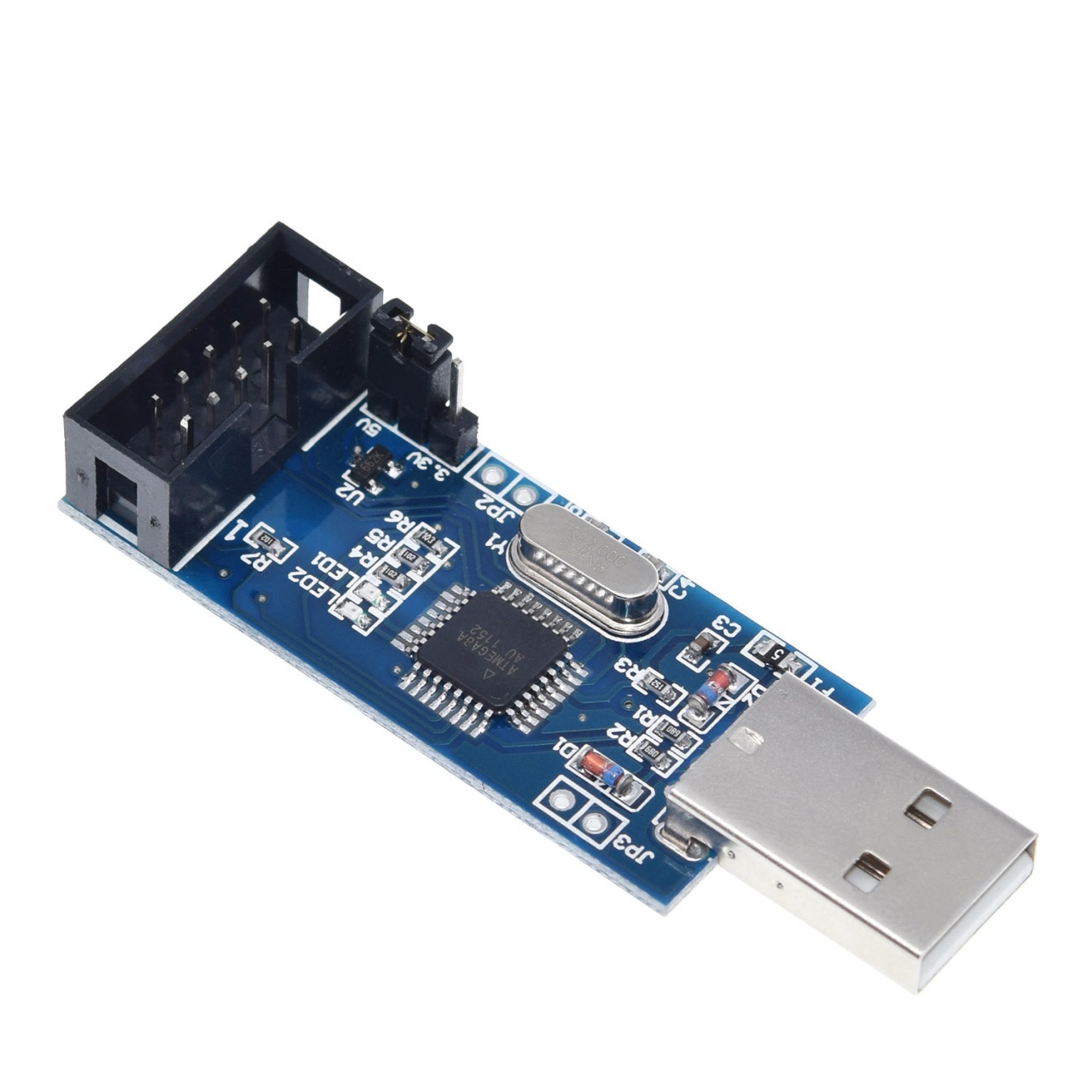

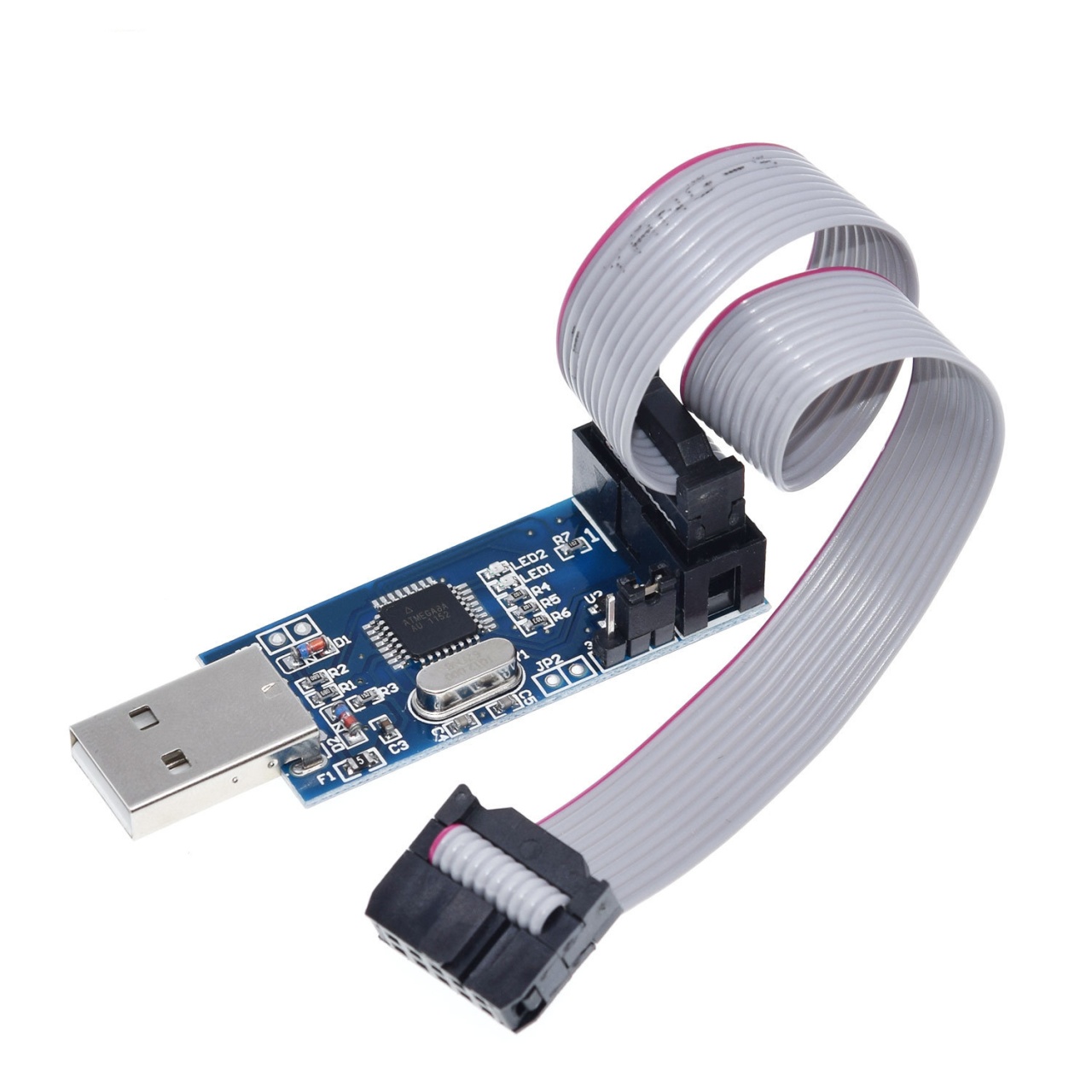

This product can be directly connected to the computer USB port, a real USB downloader product, through which it connects to the target board, can download and program the single-chip microcomputer. It is especially suitable for notebook computers, desktop computers, download and debug through USB port programming.

- Onboard ATMega8 (L) chip,

- With two indicator lights for power supply and programming,

- Onboard 500mA overcurrent protection self-recovery fuse,

- Support 5V and 3.3V power supply for the target board,

- It supports AT89S51/52 MCU,

- Support all ASP chips of AVR,

- The output port is an ATMEL standard port,

- There is a USB power supply and the target board supports a target voltage of 5V, which can be selected through the jumper cap connection,

- AUTOSPEED can automatically adjust the speed of the firmware,the downloader will automatically track the chip frequency to be programmed,and automatically change the speed to achieve automatic speed adjustment,

- Reserve MOSI,MISO,RET,SCK,VCC,GND.6PIN interface,convenient for users to connect to the target board as needed,

- The PROGRAMMING programming interface is reserved,and users can upgrade the downloader firmware by themselves,

- Supply Voltage:DC 5V-3.3V,

- Programming Software:AVR_fighter,PROGISP1.66,PROGISP1.67,PROGISP1.68,

- Work Temperature:-25℃…+85℃,

- Work Humidity:5%-95%RH,

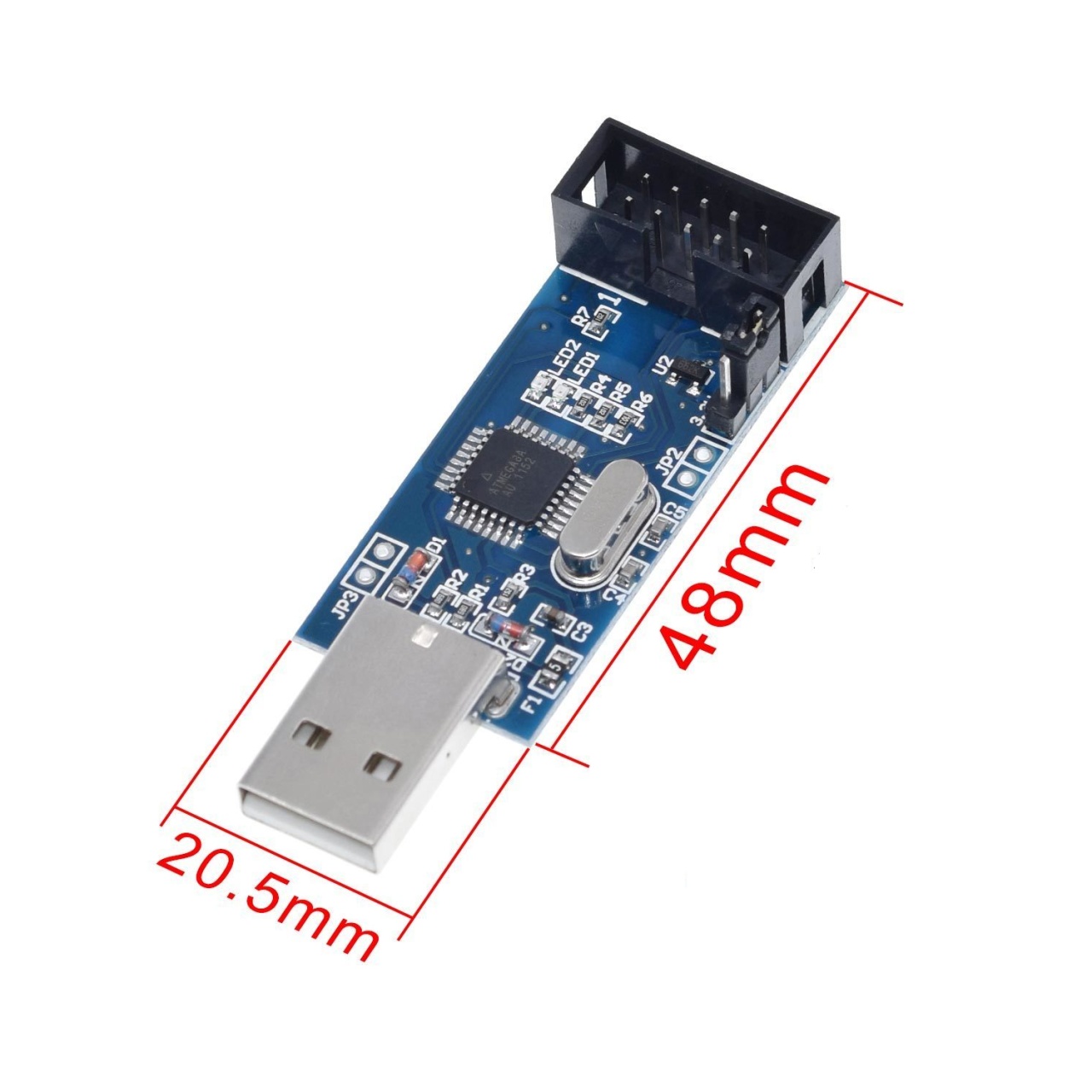

- Size:68*21*15mm.
