Raspberry Pi Pico PicoGo Mobile Robot

Opis

Smart robot is always the favorite project of electronic enthusiasts, and there've been several robots based on Raspberry Pi Zero W, 3B+, 4B in Waveshare's product line. Now, here comes the Pico version: PicoGo!

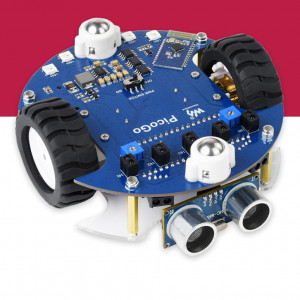

The PicoGo is a smart mobile robot based on Raspberry Pi Pico, it includes ultrasonic module, LCD module, Bluetooth module, line following module, and obstacle avoidance module, all these functions are highly integrated for easily achieving IR obstacle avoidance, auto line following, Bluetooth/IR remote control, and more. With various advanced features, it will help you fast get started with smart robot design and development.

PicoGo smart mobile robot features:

• Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
• Battery protection circuit: over charge/discharge protection, over current protection, short circuit protection, reverse proof, more stable and safe operating
• Recharge/Discharge circuit, allows programming/debugging concurrently while recharging
• 5-ch infrared sensor, analog output, combined with PID algorithm, stable line tracking

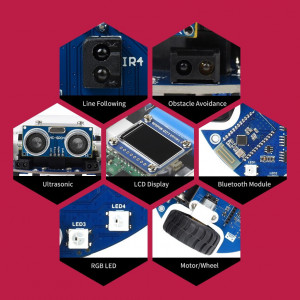

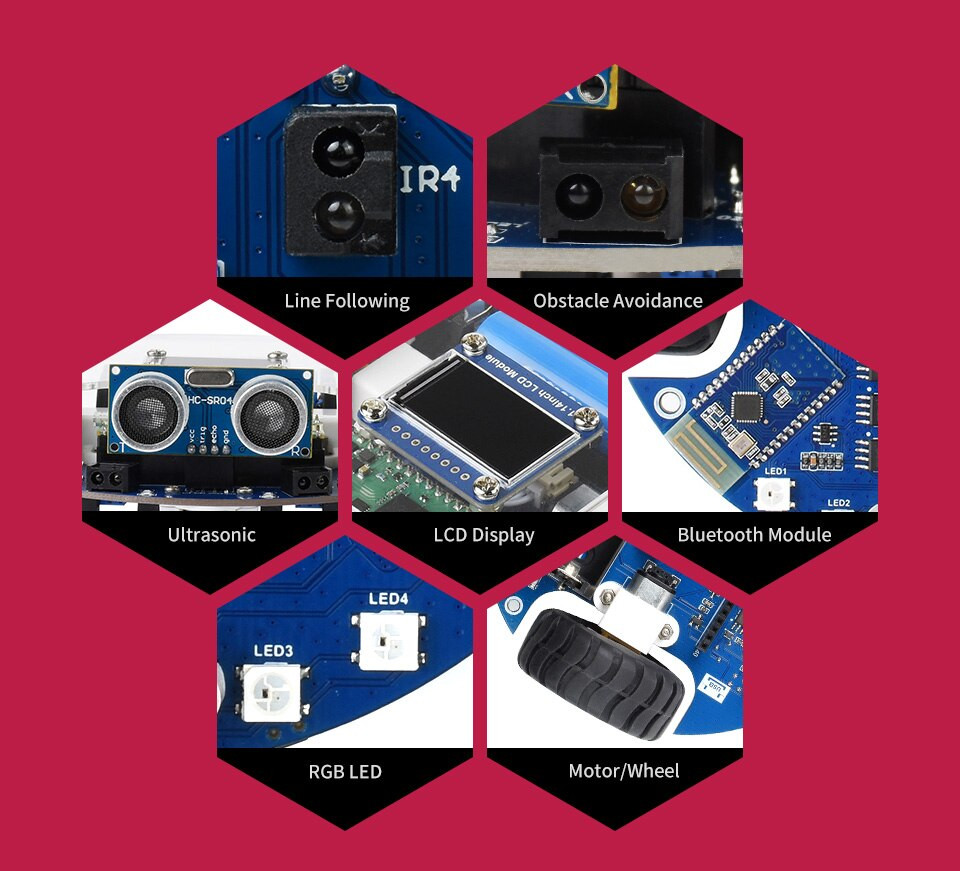

• Onboard multiple smart robot sensors like line tracking, obstacle avoidance, no more messy wiring
• 1.14inch IPS colorful LCD display, 240 x135 pixels, 65K colors

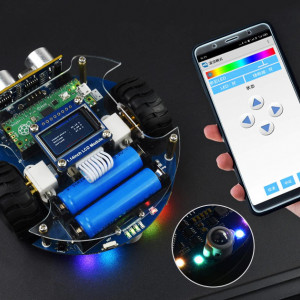

• Integrates Bluetooth module, allows teleoperations like robot movement, RGB LED display color, buzzer, etc. by using mobile phone APP
• N20 micro gearmotors, with metal gears, low noise, high accuracy
• Colorful RGB LED, pretty cool!

Raspberry Pi Pico controller board features:

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom

Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

264KB of SRAM, and 2MB of on-board Flash memory

USB 1.1 with device and host support

Low-power sleep and dormant modes

Drag-and-drop programming using mass storage over USB

Powered by 2x 14500 Li-ion batteries (NOT included), supports running while recharging, with multiple battery protection circuits including over charge/discharge protection, over current protection, short circuit protection, and reverse proof, together with battery life indicator and battery voltage monitor, more stable and safe operating

PACKAGE CONTENT

Weight: 0.359 kg

Note: this product requires two 14500 batteries to work, which are NOT included and should be purchased separately.

OPTIONS Raspberry Pi Pico (pre-soldered header) x1

PicoGo base board x1

PicoGo acrylic panel x1

1.14inch LCD Module x1

Ultrasonic sensor x1

OPTIONS 5V 3A power supply x1

IR remote controller x1

USB-A to micro-B cable 1.2m x1

PH2.0 8Pin cable 5cm opposite side headers x1

Mini cross wrench sleeve x1

Screwdriver x1

Screws and standoffs pack x1
