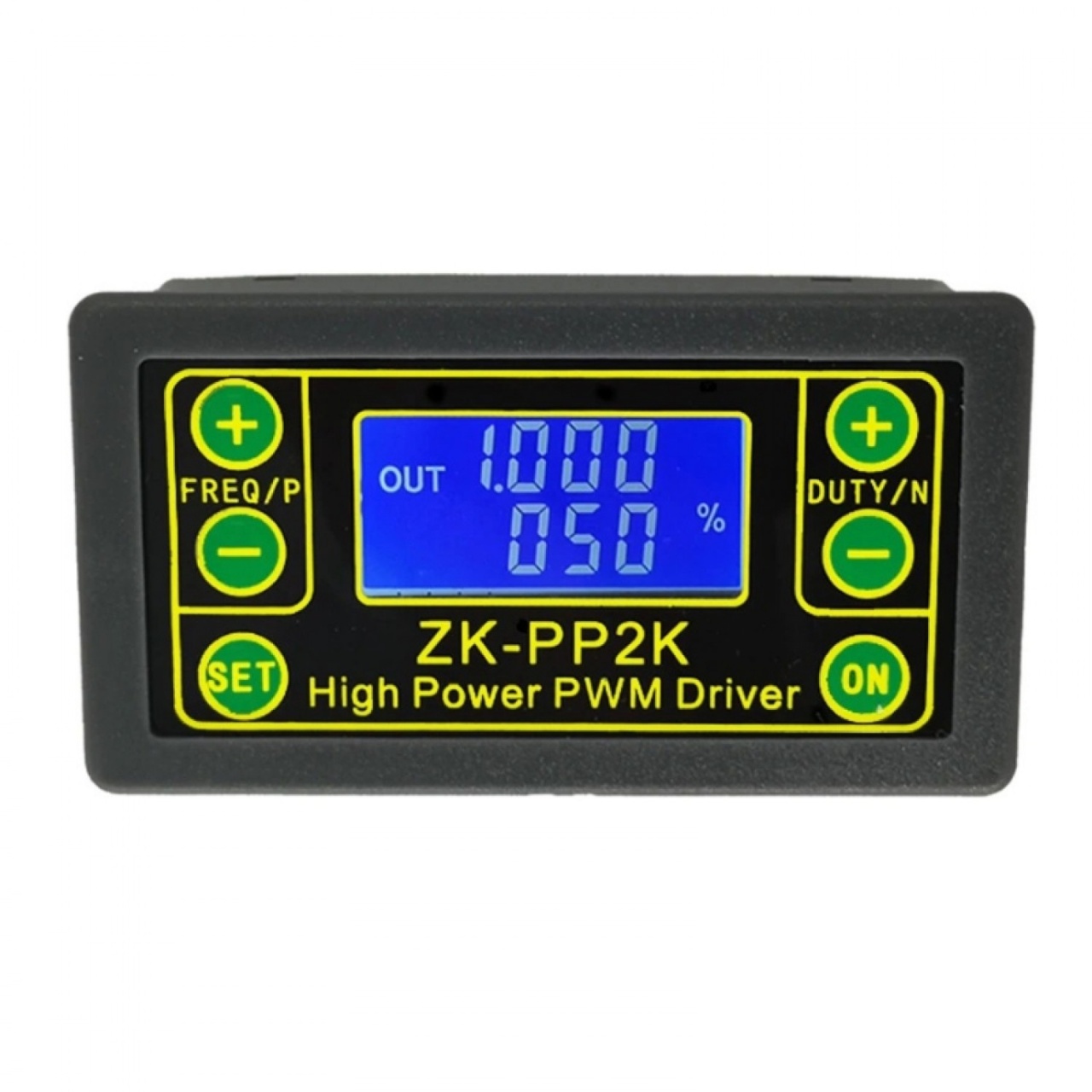

Regulator brzine DC motora ZK-PP2K

Opis

- Can directly drive LED, motor, solenoid valve and other loads,

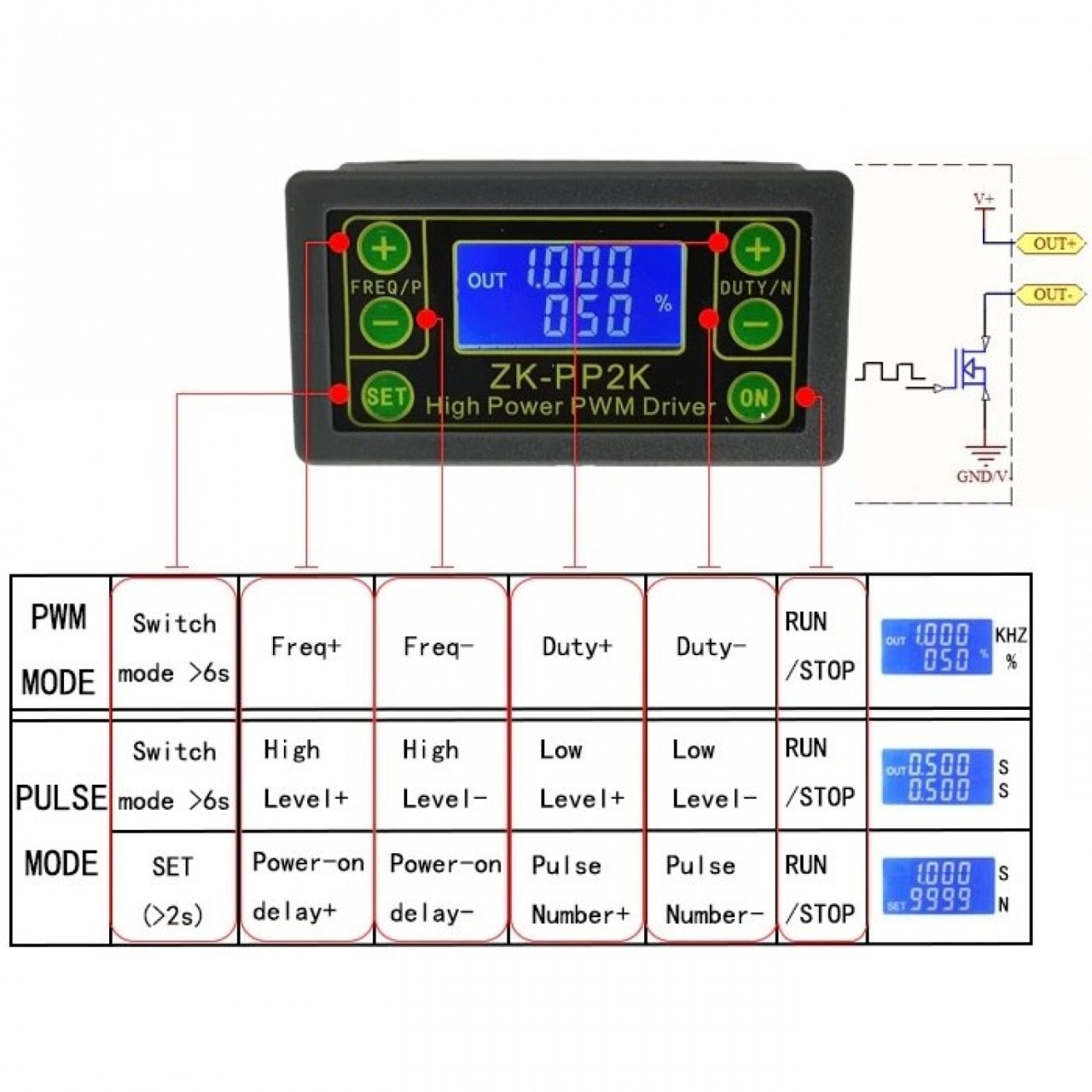

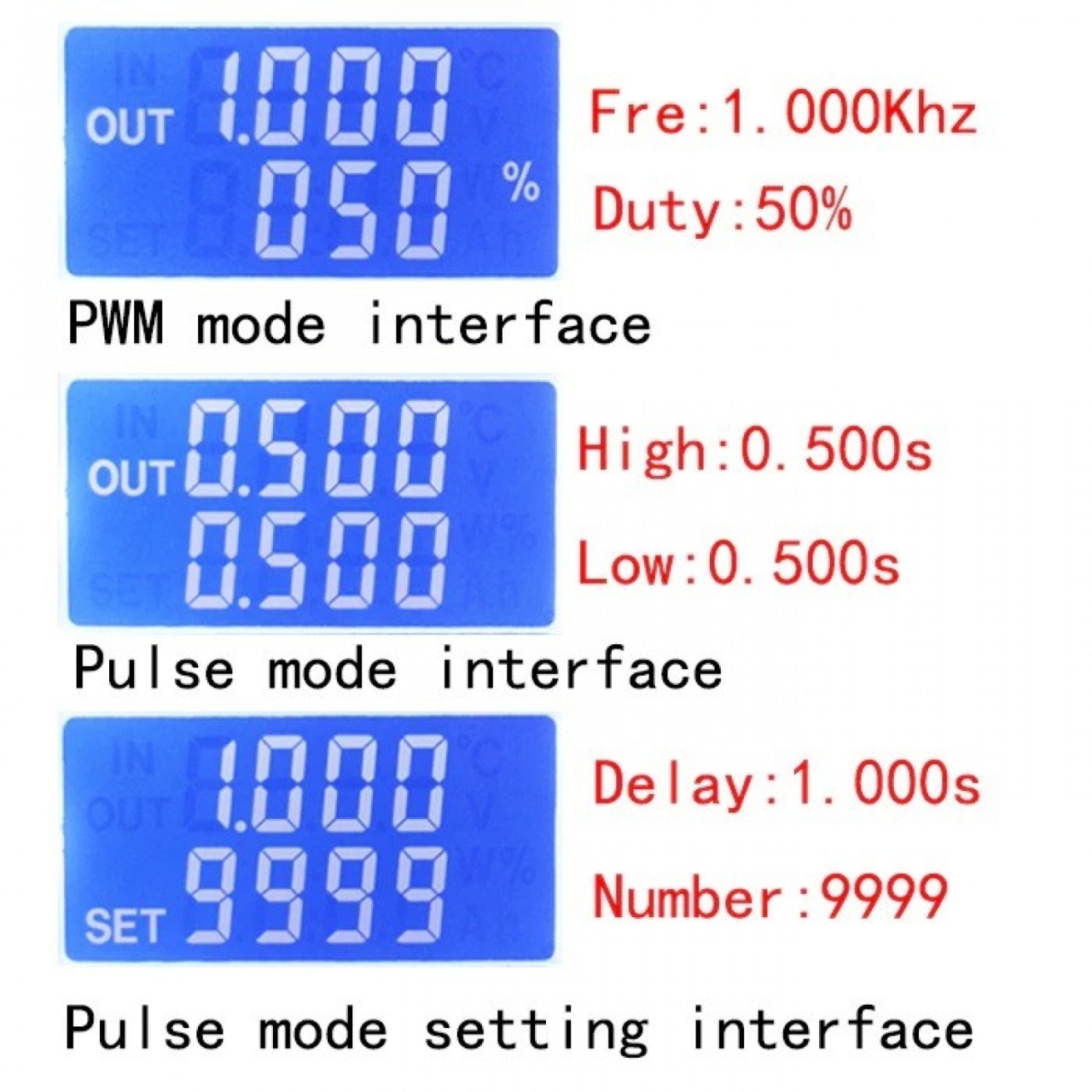

- Two modes can be selected: PWM mode - frequency (continuous), duty cycle. Note that the number of pulses cannot be set in this mode, and the pulse is always emitted. PULSE pulse mode - positive pulse width time, negative pulse width time, power-on delay start time, and number of pulses are adjustable,

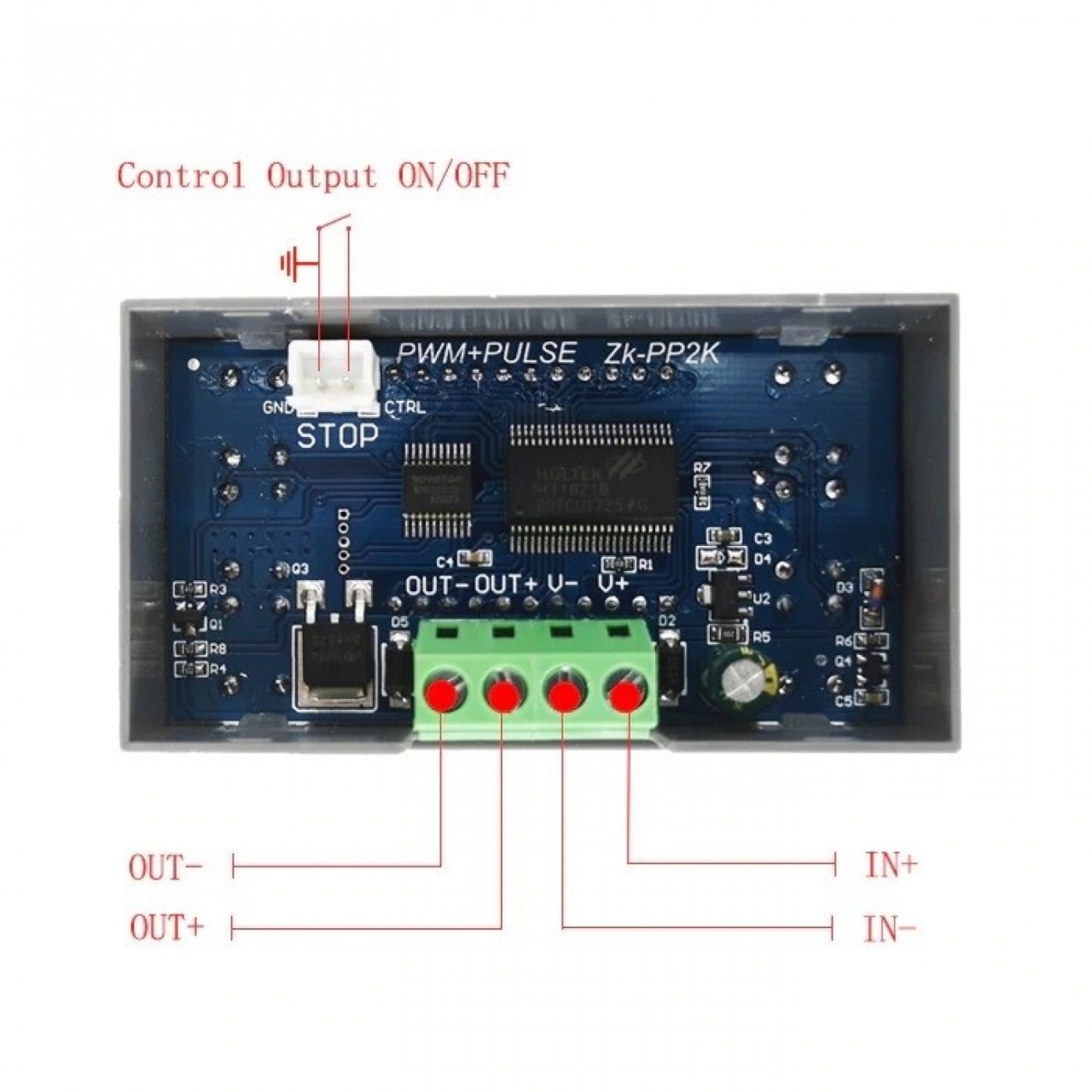

- With start and stop button, can control the output and stop of the signal,

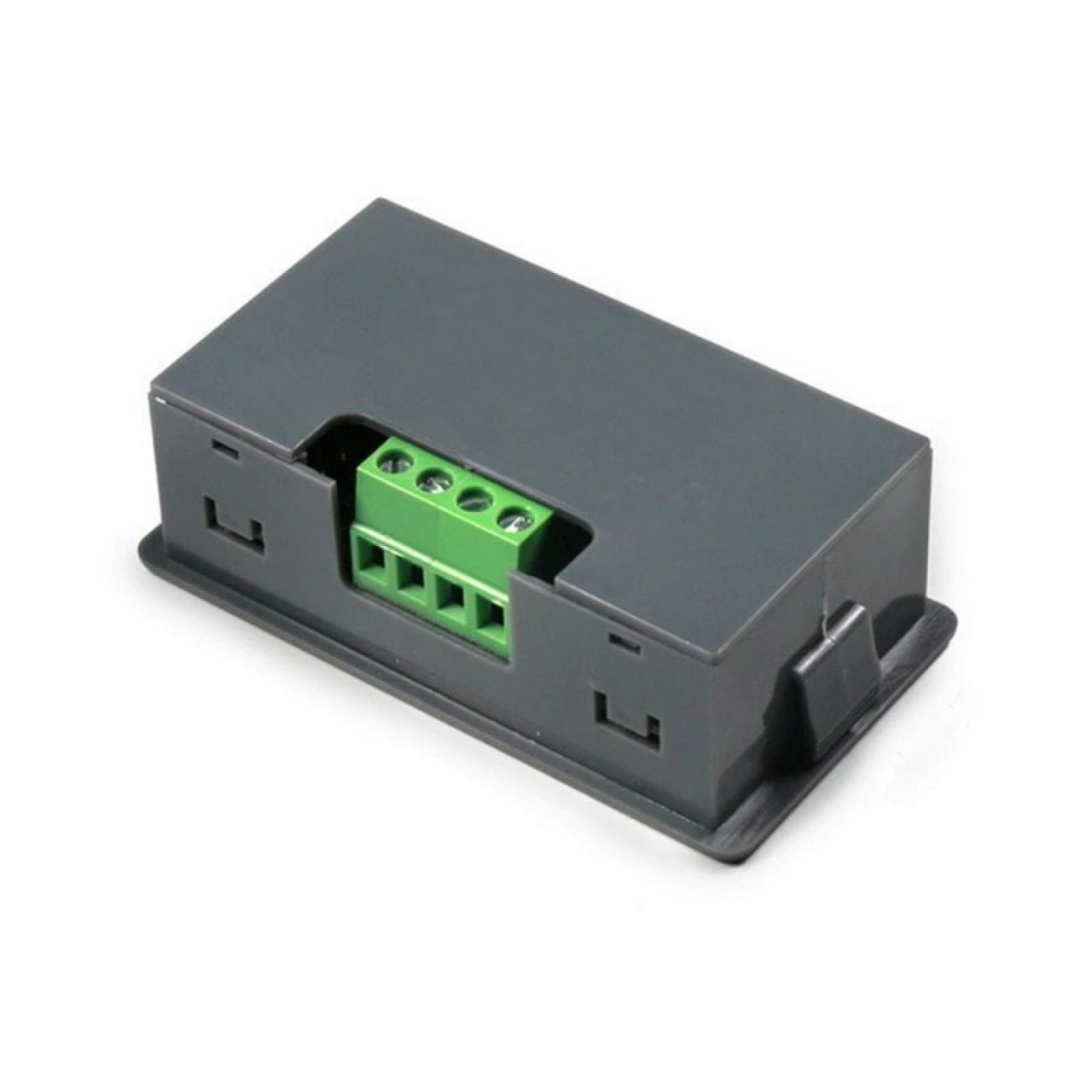

- Wide voltage input 3.3-30V, 5.08mm terminal wiring,

- Working voltage: 3.3~30V (note that the positive and negative poles Should not be reversed, otherwise it may burn out),

- Frequency range: 1Hz~150KHz, the accuracy is about 2%. Motor speed control generally chooses 20KHZ,

- Duty cycle range: 0-100%, 1% stepping,

- Number of pulses: 1-9999, or infinite (display '----' stands for infinity),

- Delay output time: 0.000s-9999s, the minimum can be set 1ms,

- Positive and negative pulse width length: 0.000s-9999s, the minimum can be set 1ms,

- Output load capacity: less than 8A (MOS switch tube),

- Output amplitude: The amplitude is equal to the supply voltage (OUT+ is directly connected to the V+ module),

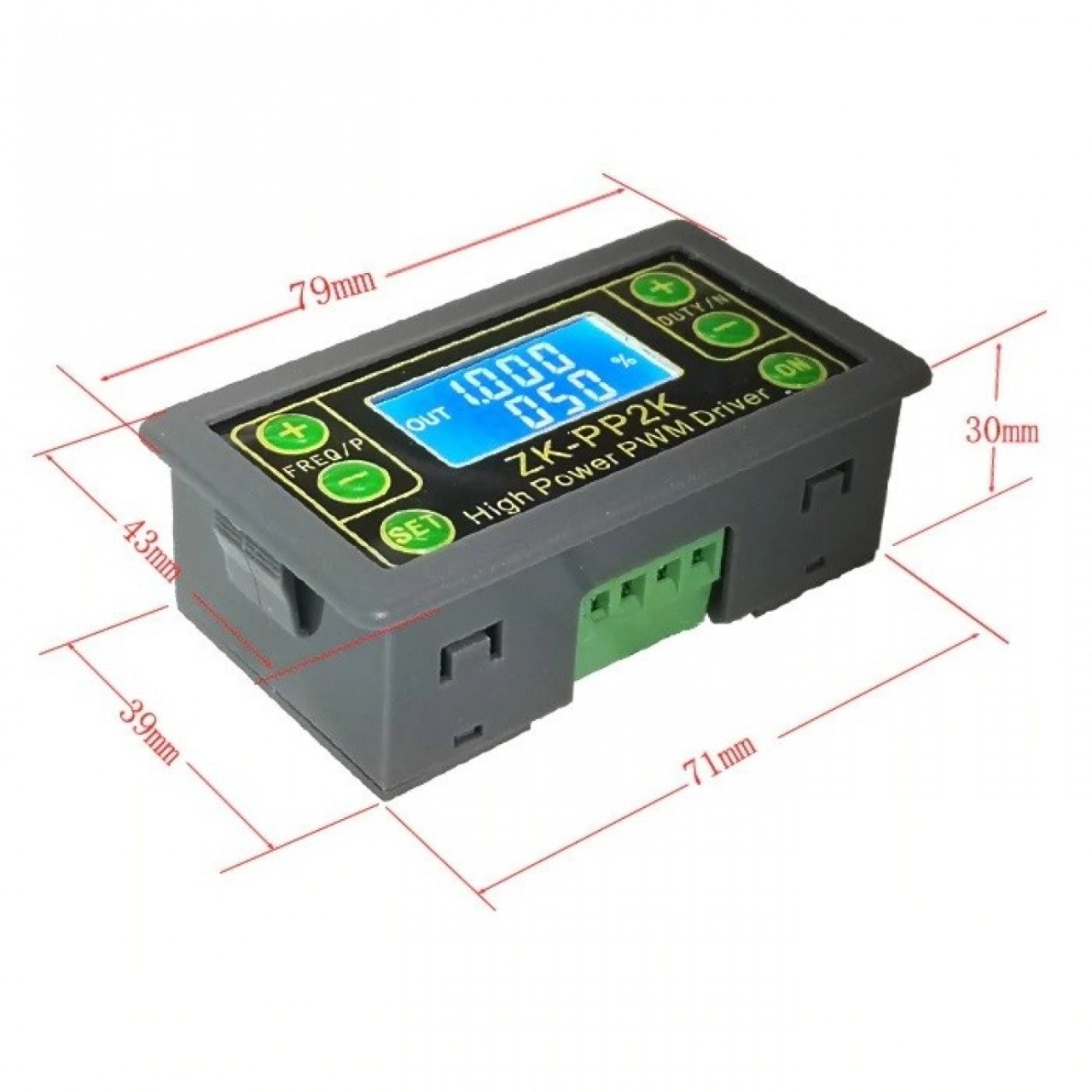

- Product size: 79mm*43mm*30mm,

- Product Weight: 42g.
