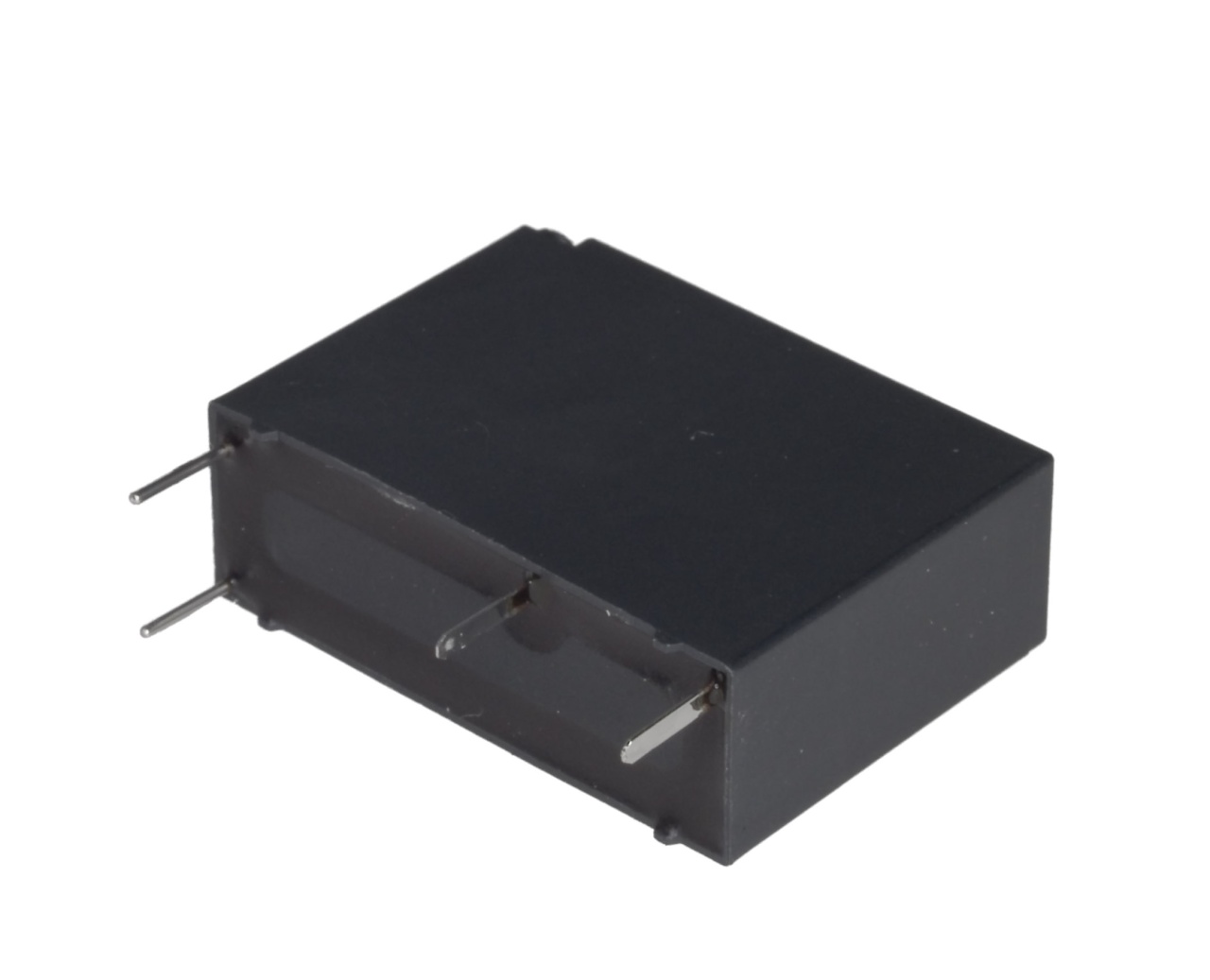

Rele ALDP124

Opis

- Category: Miniature Electromagnetic Relays,

- Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 5A,

- Type of relay: electromagnetic,

- Contacts configuration: SPST-NO,

- Rated coil voltage: 24V DC,

- Contact current max.: 5A,

- AC contacts rating @R: 5A / 277V AC,

- DC contacts rating @R: 3A / 30V DC,

- Manufacturer series: LD-P,

- Relay variant: miniature,

- Mounting: PCB,

- Coil resistance: 2.88kΩ,

- Body dimensions: 20.5x7.2x15.3mm,

- Coil power consumption: 200mW,

- Mechanical durability: 5000000 cycles,

- Operating temperature: -40...85°C,

- Contact material: AgNi,

- Coil current: 8.3mA,

- Switched voltage: max. 30V DC; max. 277V AC,

- Coil voltage min.: 18V DC.
