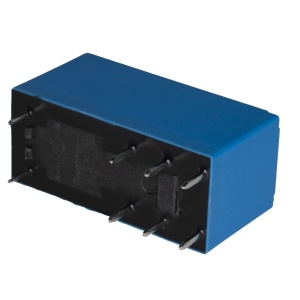

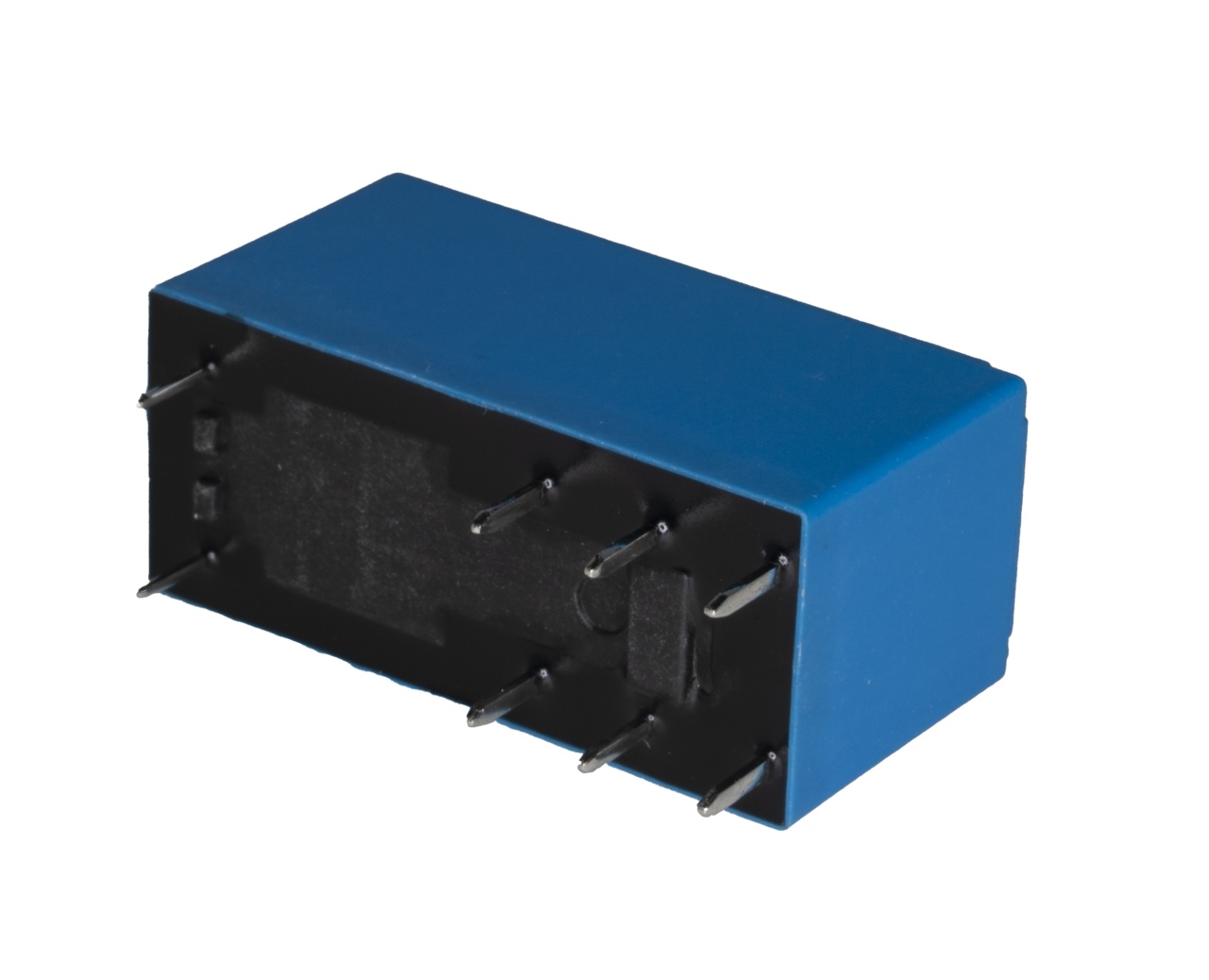

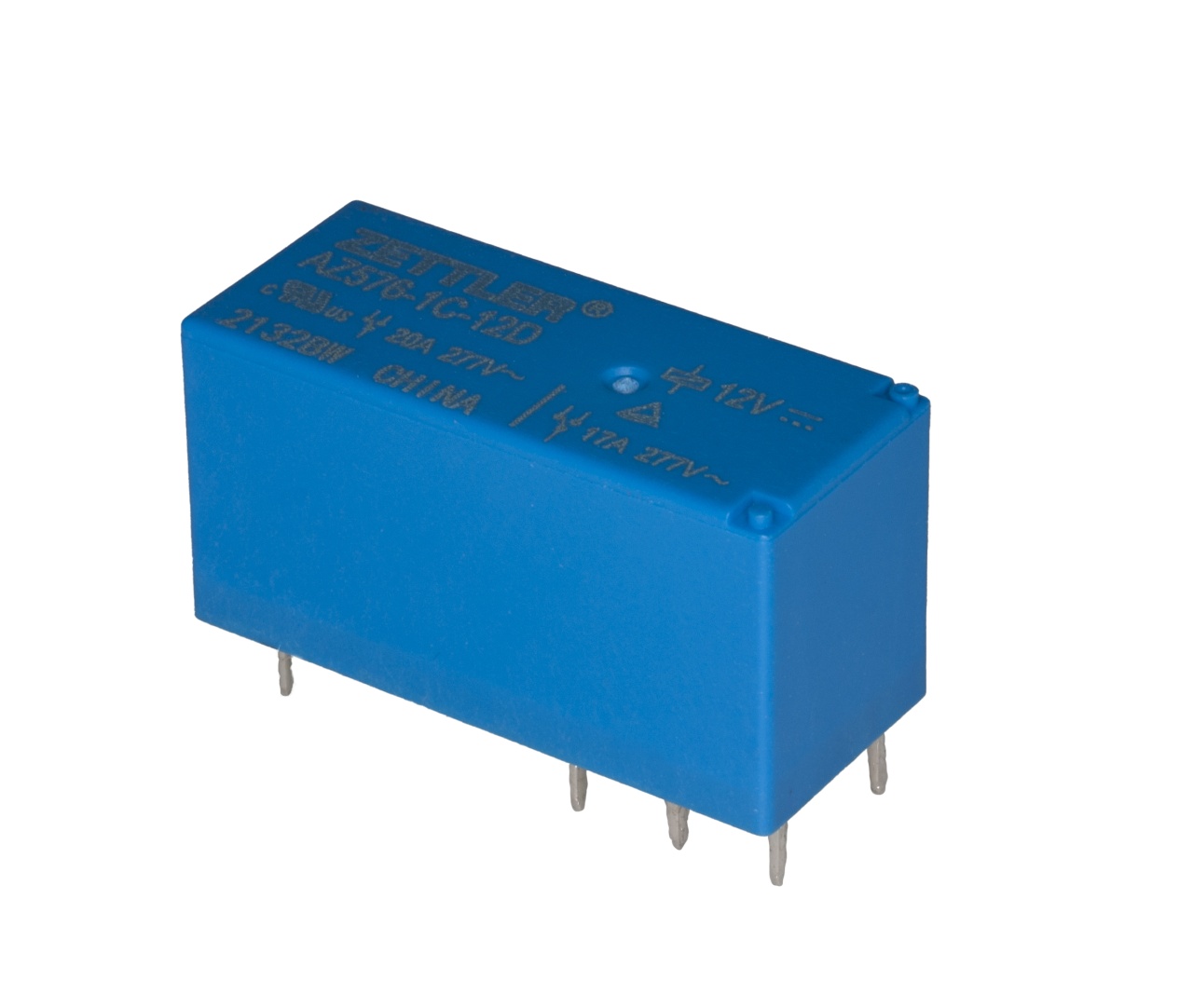

Rele AZ576-1C-12D

Opis

- Manufacturer: American Zettler,

- Series: AZ576,

- Mounting Type: Through Hole,

- Coil Voltage: 12VDC,

- Contact Form: SPDT (1 Form C),

- Contact Rating (Current): 20A,

- Switching Voltage: 277VAC, 30VDC - Max,

- Load - Max Switching: 5540VA, 510W,

- Coil Current: 33.3 mA,

- Coil Type: Non Latching,

- Termination Style: PC Pin,

- Seal Rating: Sealed - Flux Protection,

- Coil Insulation: Class F,

- Must Operate Voltage: 9VDC,

- Must Release Voltage: 0.6 VDC,

- Operate Time: 15 ms,

- Release Time: 8 ms,

- Operating Temperature: -40°C ~ 105°C,

- Contact Material: Silver Tin Oxide (AgSnO),

- Relay Type: General Purpose,

- Coil Resistance: 360 Ohms.
