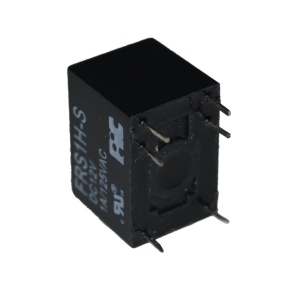

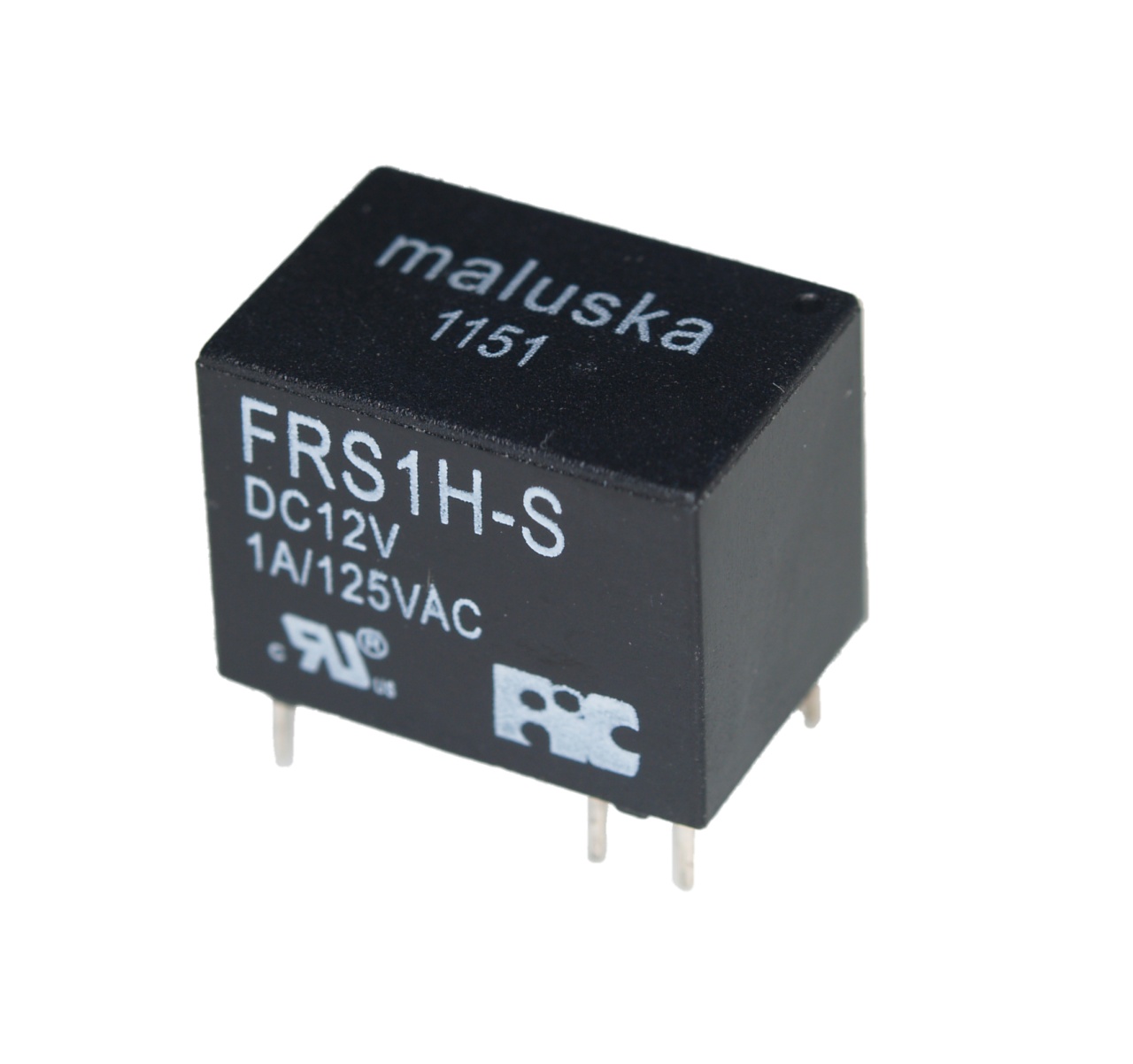

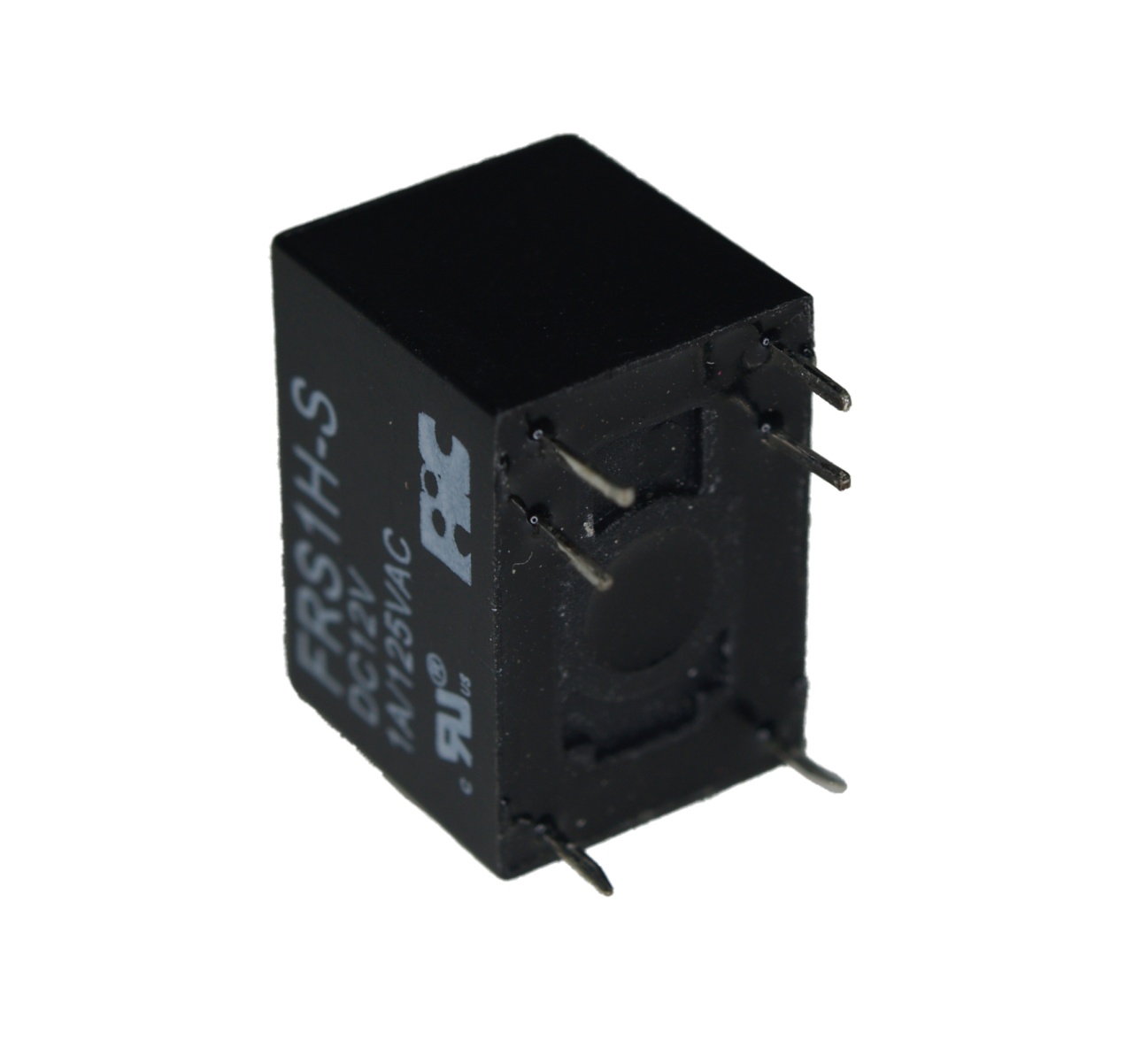

Rele FRS1H24

Opis

- Manufacturer: FORWARD INDUSTRIAL CO.,

- Type of relay: electromagnetic,

- Contacts configuration: SPDT,

- Rated coil voltage: 24V DC,

- Contact current max.: 1A,

- AC contacts rating @R:  (at resistive load) at resistive load 1A / 125V AC,

- DC contacts rating @R:  (at resistive load) at resistive load 1A / 30V DC,

- Manufacturer series: FRS1,

- Switched voltage: max. 60V DC, max. 220V AC,

- Relay variant:  subminiature,

- Mounting: PCB,

- Coil resistance: 2800Ω,

- Body dimensions: 16x11x11.5mm,

- Coil power consumption:  200mW,

- Operating temperature: -25...75°C,

- Contact resistance: 50mΩ,

- Contact material: silver,

- Terminal pitch: 2.54mm,

- Coil current: 8.6mA.
