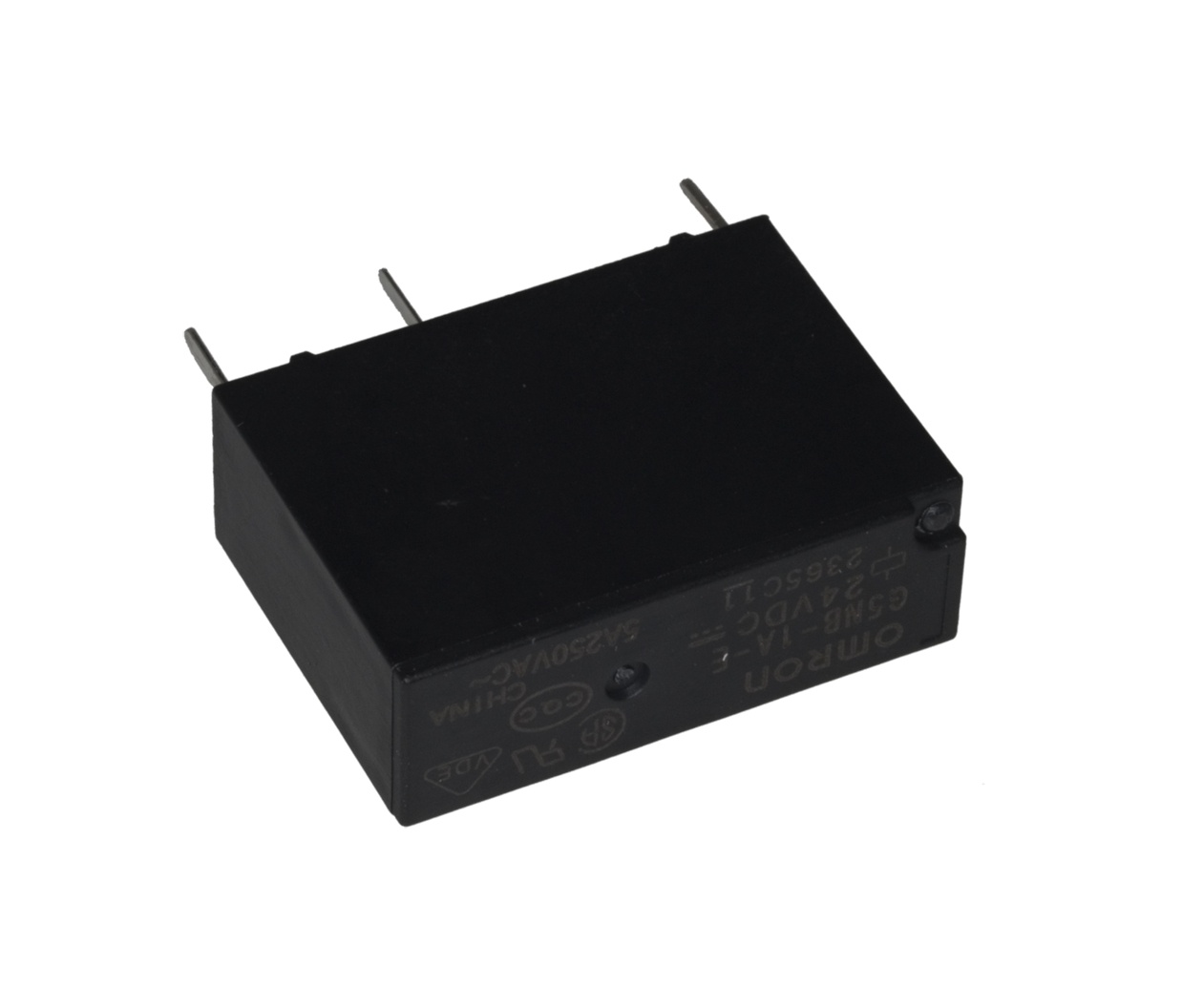

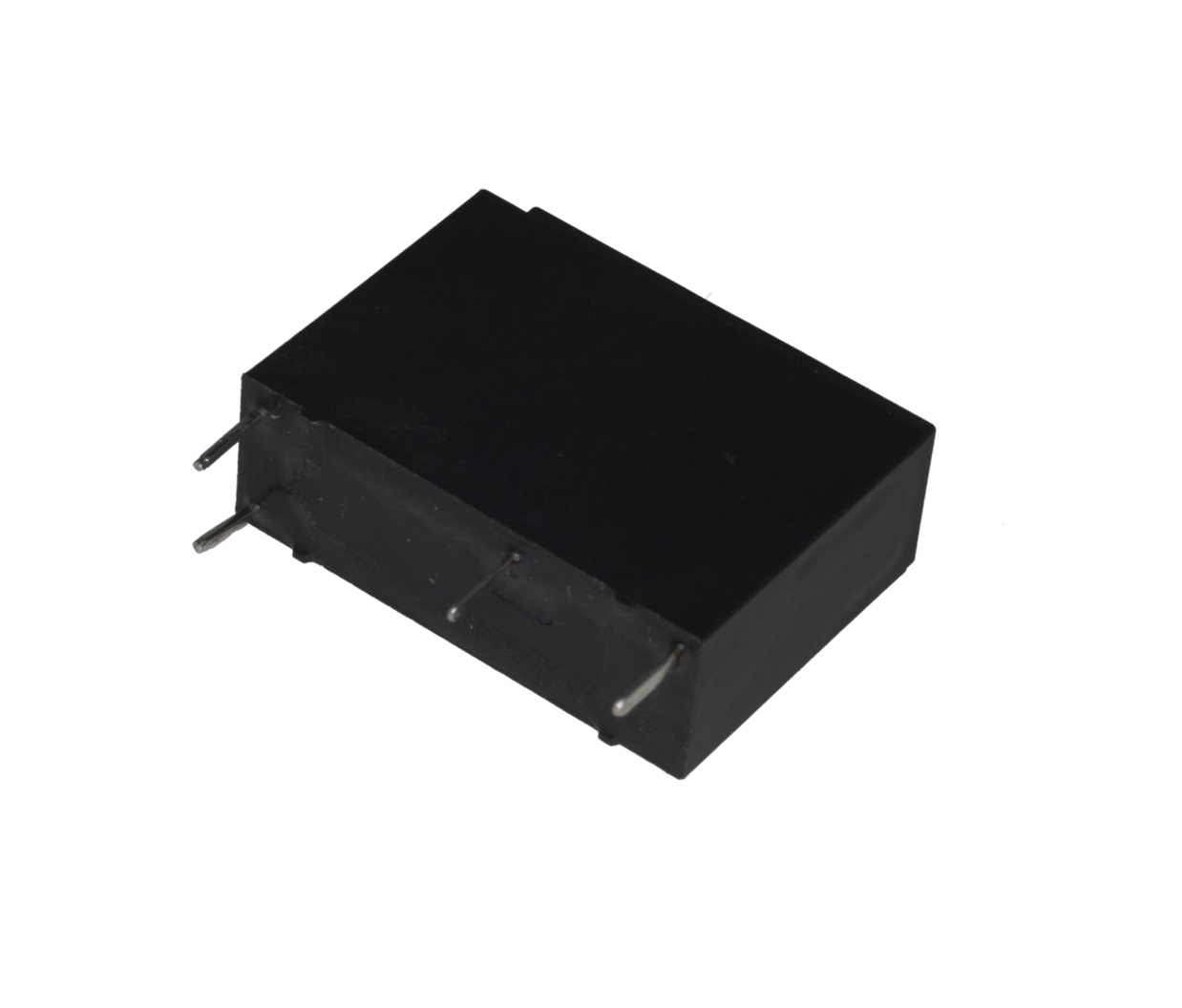

Rele G5NB1AE-24

Opis

- Category: Miniature Electromagnetic Relays,

- Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 5A,

- Type of relay: electromagnetic,

- Contacts configuration: SPST-NO,

- Rated coil voltage: 24V DC,

- Contact current max.: 5A,

- AC contacts rating @R: 5A / 250V AC,

- DC contacts rating @R: 3A / 30V DC,

- Manufacturer series: G5NB,

- Switched voltage: max. 30V DC; max. 250V AC,

- Relay variant: miniature,

- Mounting: PCB,

- Coil resistance: 2.88kΩ,

- Operate time: 10ms,

- Body dimensions: 20.5x7.2x15.3mm,

- Release time: 10ms,

- Operating temperature: -40...70°C,

- Contact resistance: 100mΩ,

- Coil current: 8.3mA,

- Enclosure description: standard seal,

- Coil power consumption: 200mW,

- Terminal pitch: 7mm.
