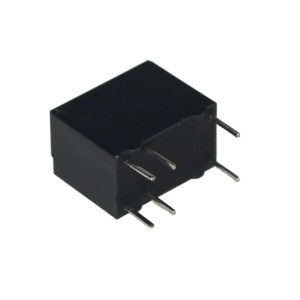

Rele G5V1-5

Opis

- Category: Miniature Electromagnetic Relays,

- Description: Relay: electromagnetic; SPDT; Ucoil: 5VDC; Icontacts max: 1A; G5V-1,

- Type of relay: electromagnetic,

- Contacts configuration: SPDT,

- Rated coil voltage: 5V DC,

- Contact current max.: 1A,

- AC contacts rating @R: 0.5A / 125V AC,

- DC contacts rating @R: 1A / 24V DC,

- Manufacturer series: G5V-1,

- Switched voltage: max. 60V DC; max. 125V AC,

- Relay variant: subminiature,

- Mounting: PCB,

- Coil resistance: 166.7Ω,

- Body dimensions: 12.5x7.5x10mm,

- Coil power consumption: 150mW,

- Operating temperature: -30...70°C,

- Terminal pitch: 2.54mm,

- Coil current: 30mA,

- Contact resistance: 100mΩ.
