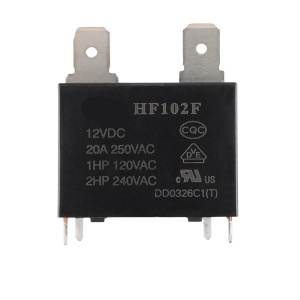

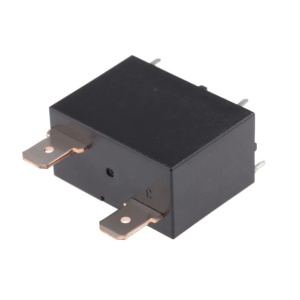

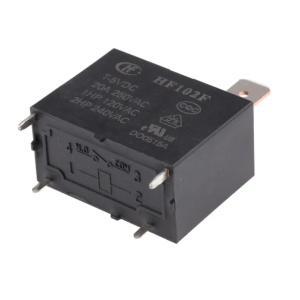

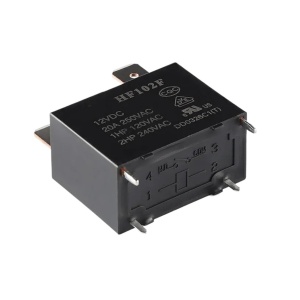

Rele HF102F-24VDC

Opis

- Coil Voltage: 24V dc,

- Contact Configuration: SPST,

- Mounting Type: PCB Mount,

- Switching Current: 25A,

- Number of Poles: 1,

- Latching: No,

- Terminal Type: Through Hole,

- Maximum Switching Voltage AC: 250V ac,

- Maximum Switching Voltage (AC): 250V ac,

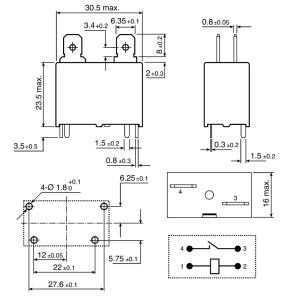

- Length: 30.5mm,

- Coil Resistance: 640Ω,

- Coil Power: 900mW,

- Maximum Operating Temperature: +85°C,

- Isolation Coil To Contact: 4.5kV ac,

- Depth: 16mm,

- Contact Material: Silver Alloy,

- Standards Met: CQC, CULus, RoHS Compliant,

- Minimum Operating Temperature: -25°C,

- Height: 33.5mm,

- Life:100000 (Electrical) cycles, 2000000 (Mechanical) cycles,

- Maximum Switching Power AC: 6.25 kVA,

- Application: Power,

- Country of Origin: China.
