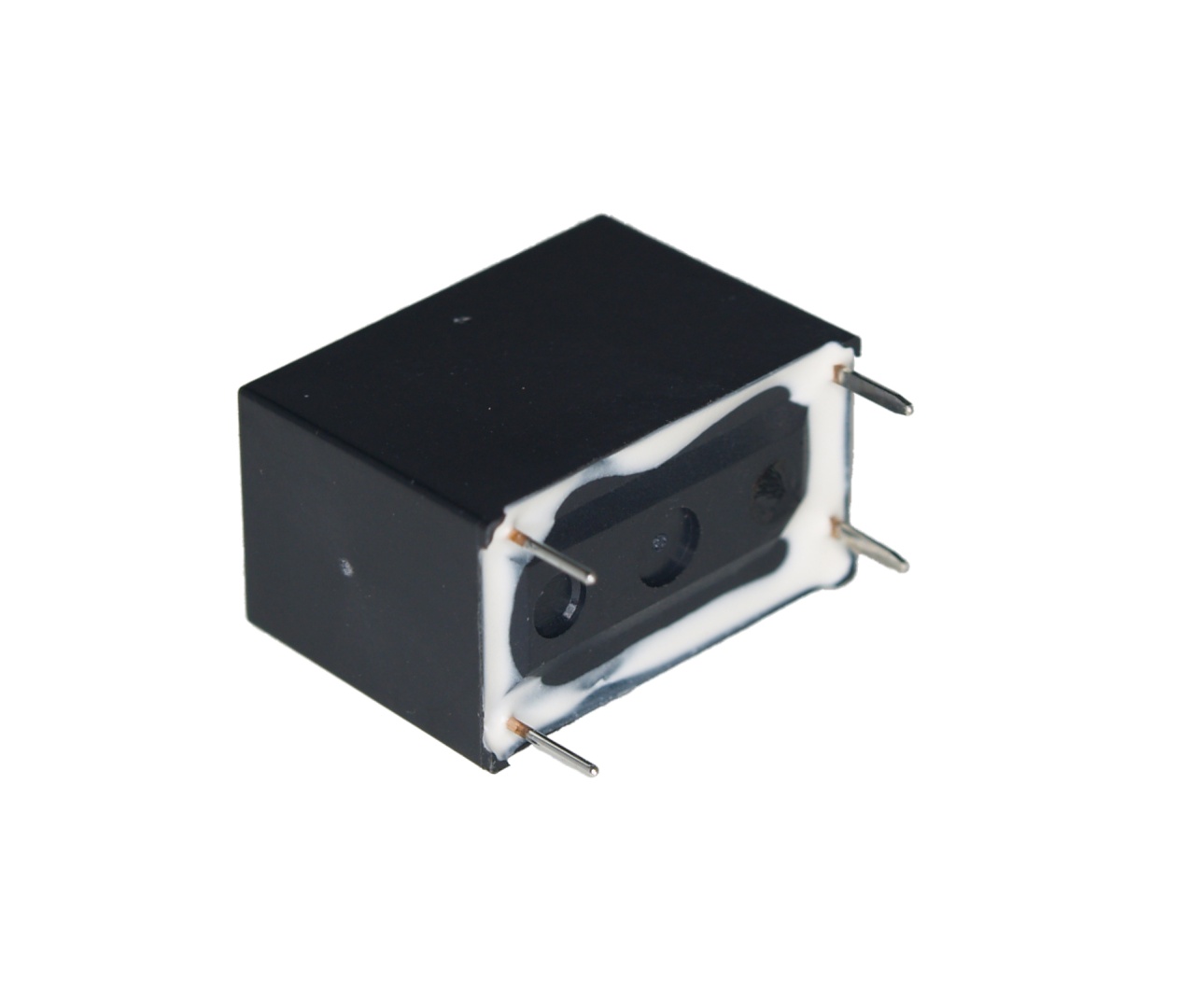

Rele JV05S-KT

Opis

- Manufacturer (Brand): Takamisawa,

- Contact Form: SPST-NO,

- Max. Switching Current: 5A,

- Coil Voltage: 5VDC,

- Type: Power,

- Coil Resistance: 125 Ohm,

- Coil Power: 200 mW,

- Max. Switching Power: 1250VA/150W,

- Max. Switching Voltage: 250VAC/150VDC,

- Dielectric Strength (between coil and contacts): 5000VAC,

- Operate/Release time: 8ms/4ms,

- Dimensions: 17,5x10x12,5mm,

- Contact Material: Ag alloy,

- Description: medium load control, high sensitivity,

- Series: JV,

- RoHS: Yes.
