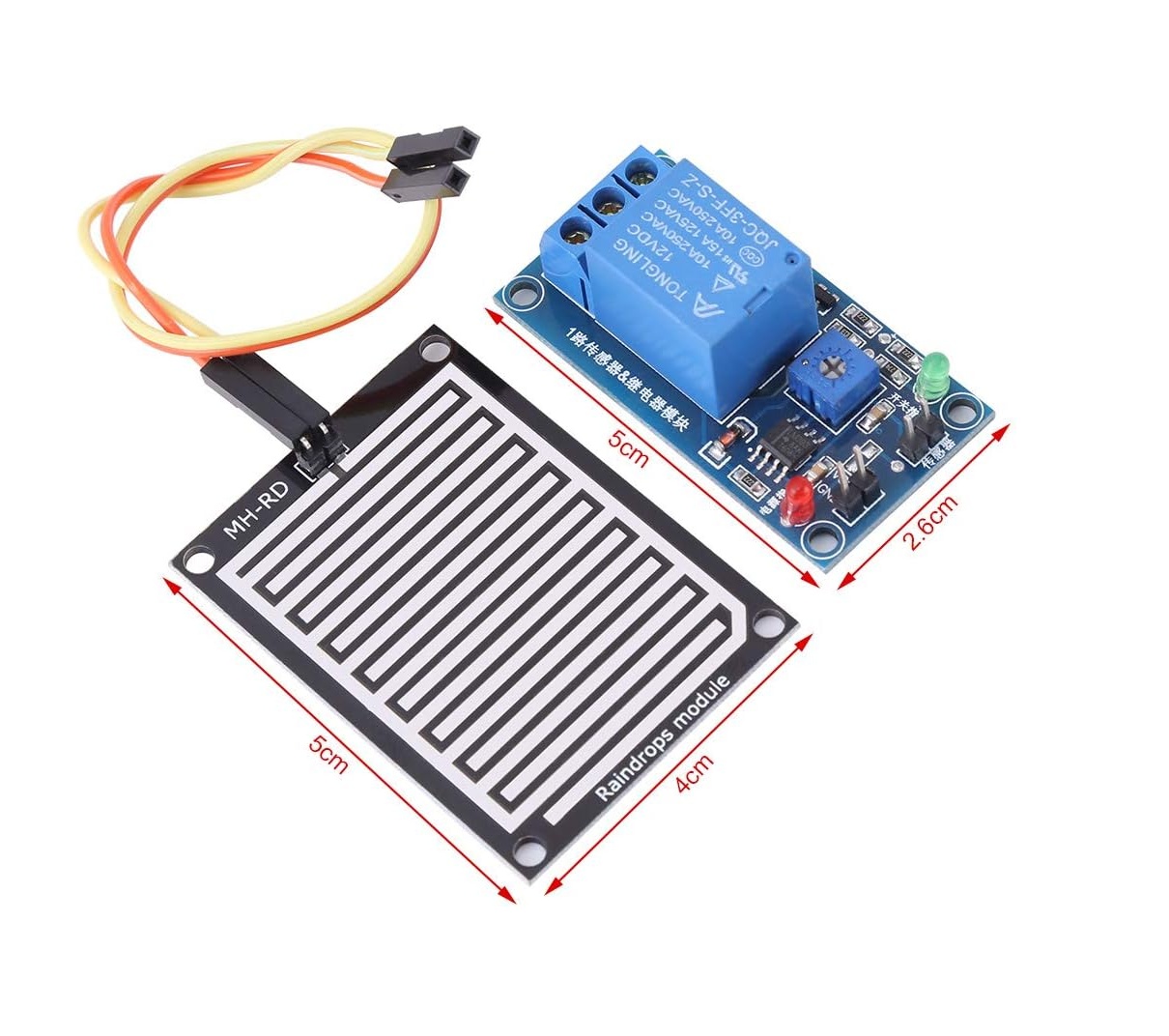

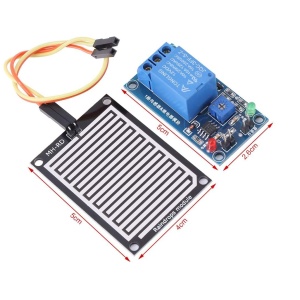

Relejni modul sa senzorom kiše

Opis

- Arduino robot kit, rain, rain, plant leaf moisture sensor, can be used to monitor a variety of weather conditions, and directly output with a relay to control the start and shutdown of the motor,

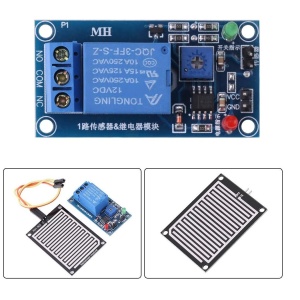

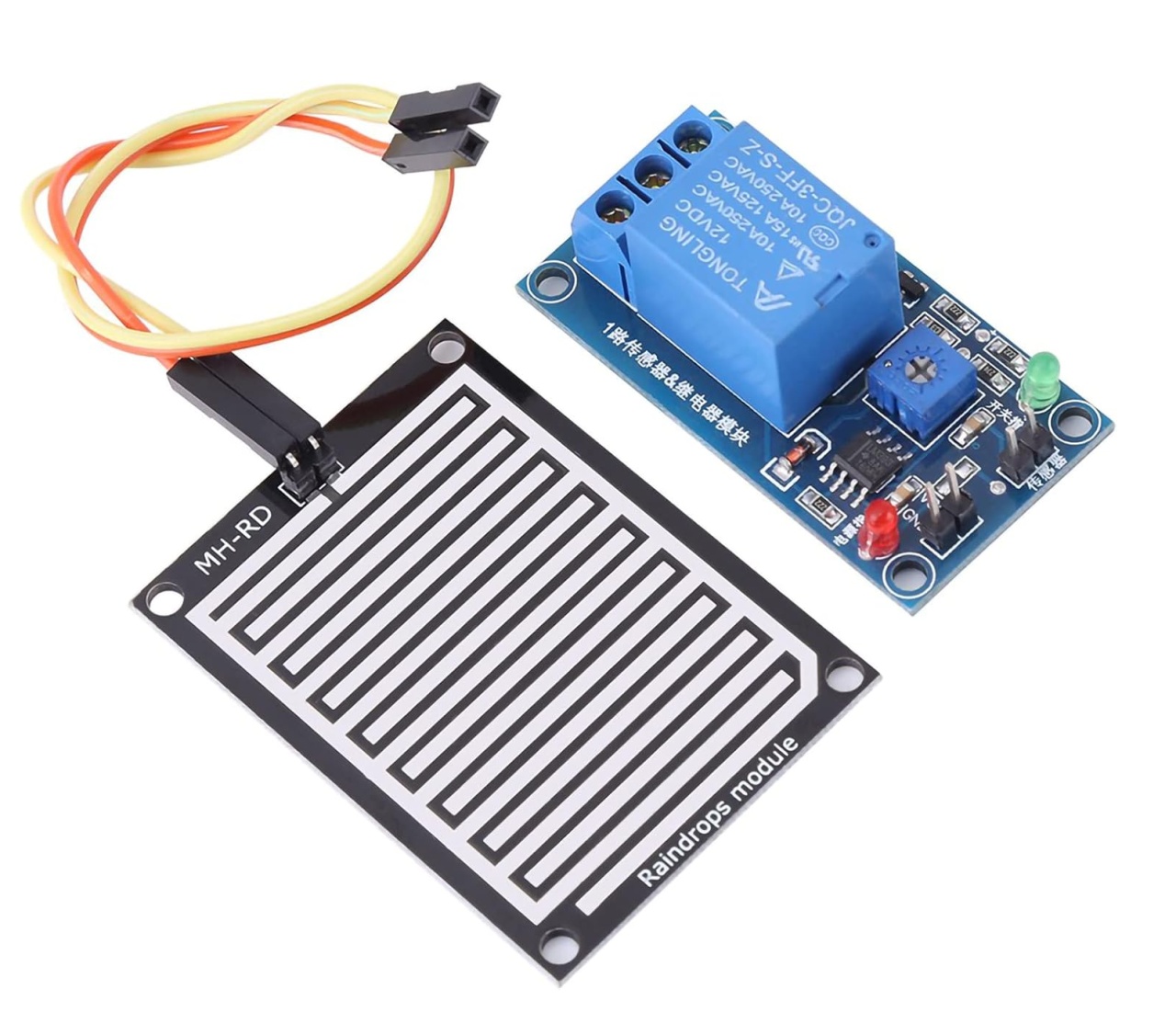

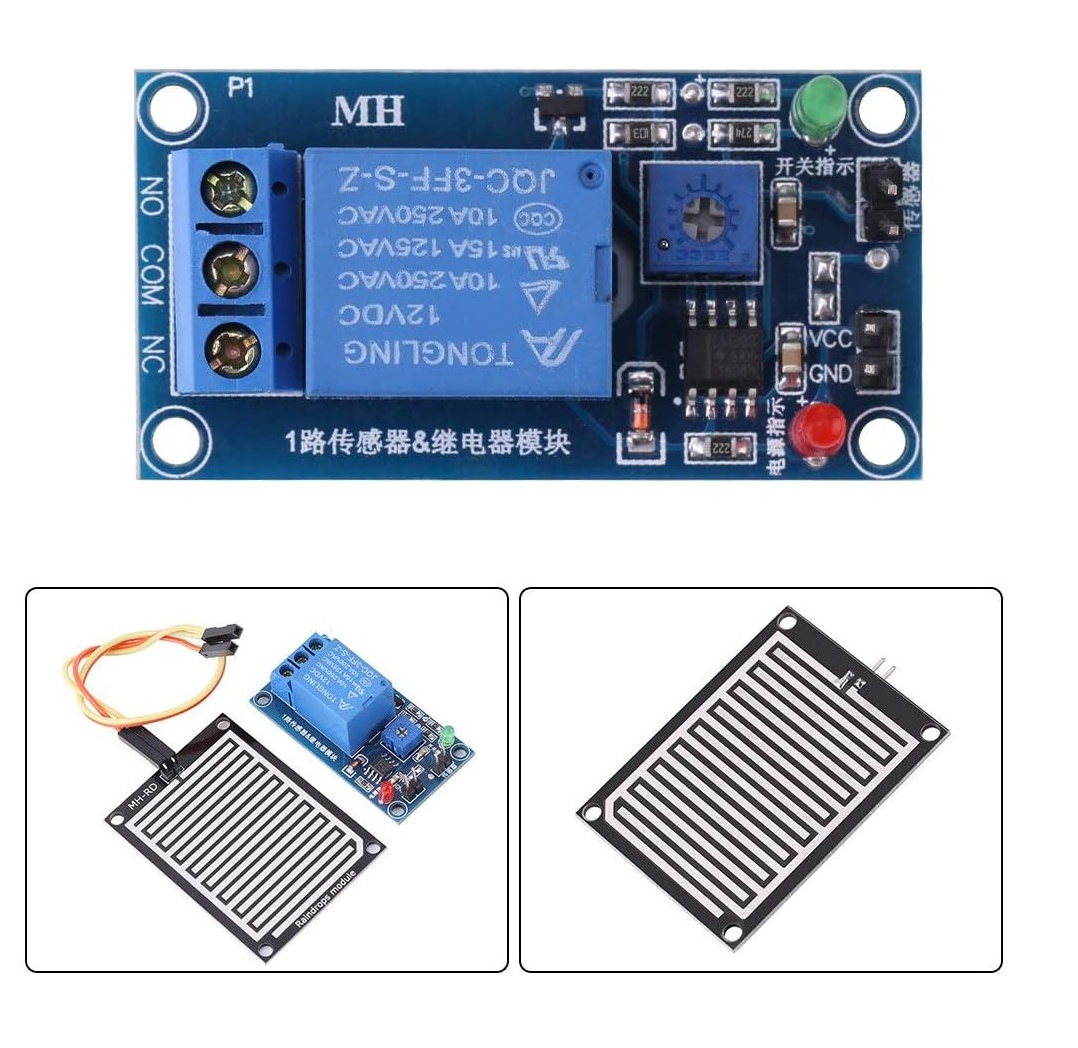

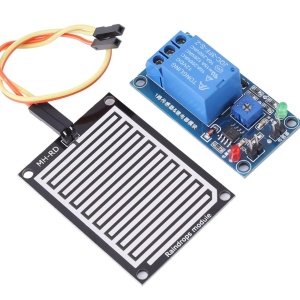

- The sensor adopts high quality FR-04 double-sided material, large area 5.0*4.0CM, and its surface is treated with nickel plating, which has superior performance in terms of oxidation resistance, conductivity, and life,

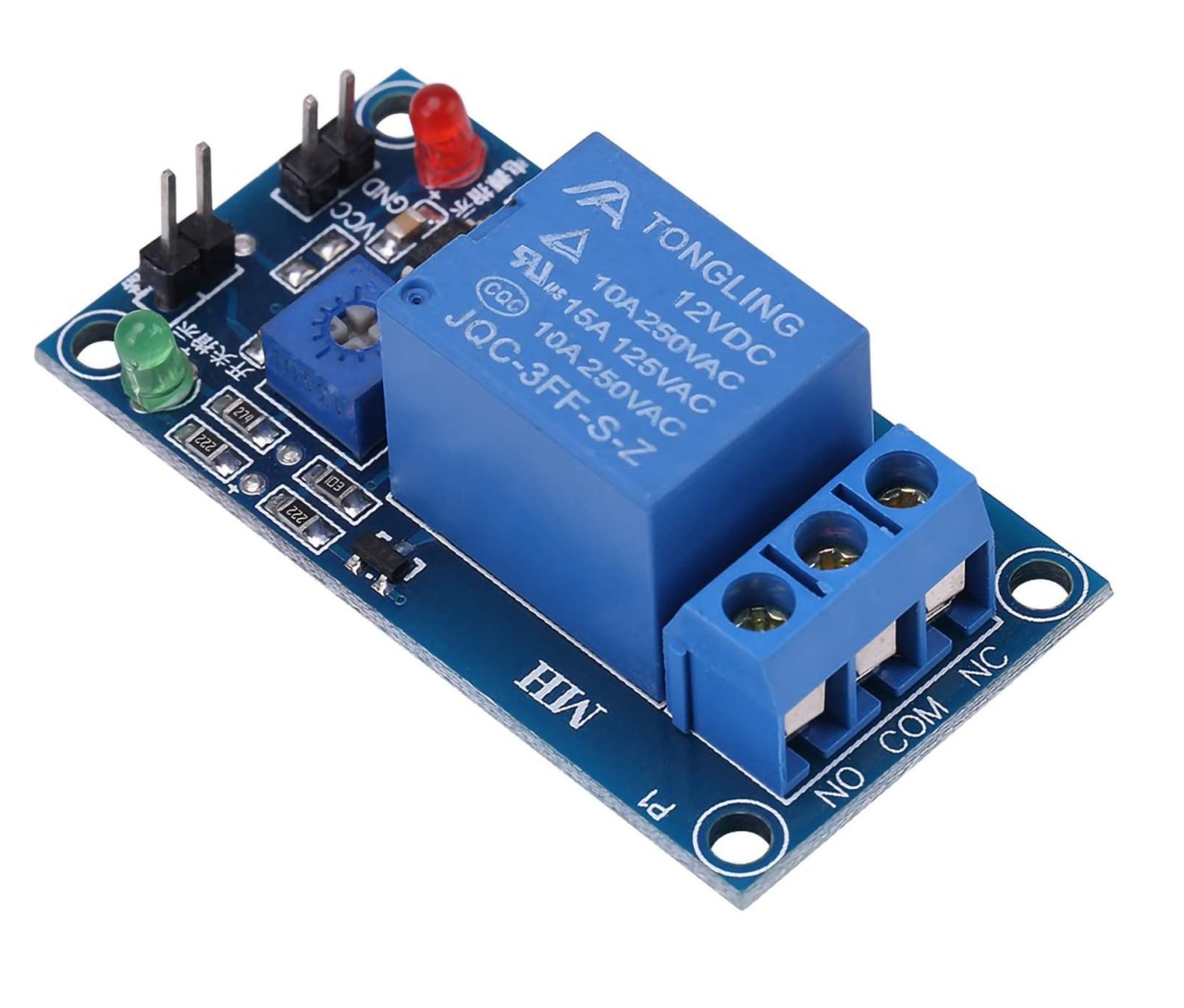

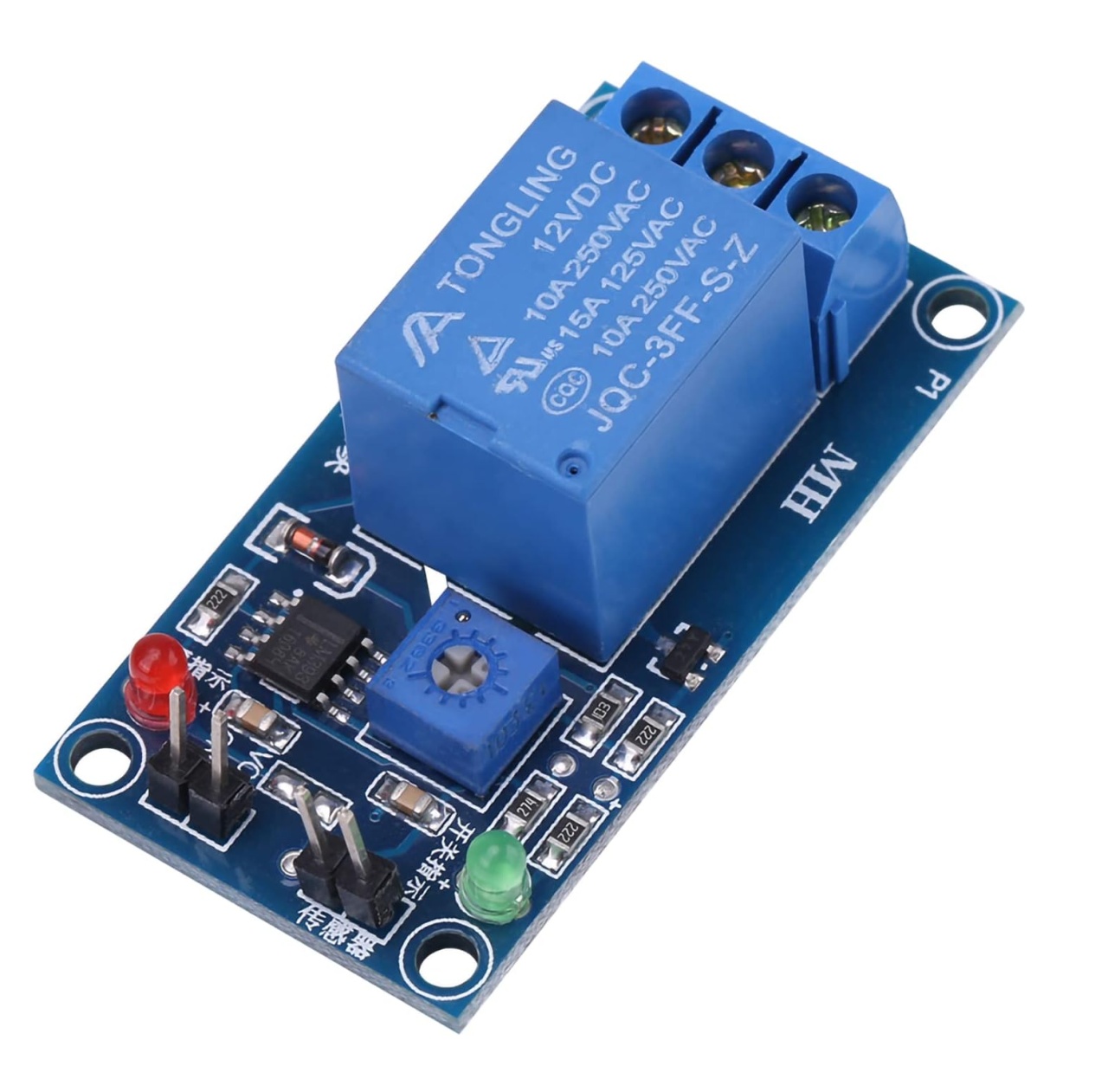

- The module is directly equipped with high power relay to control the load directly,

- The power distribution position adjusts the sensitivity and controls the relay opening when the moisture content is different,

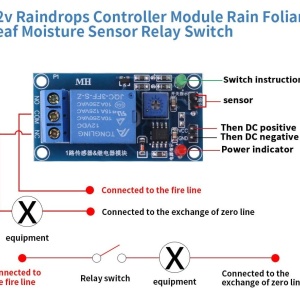

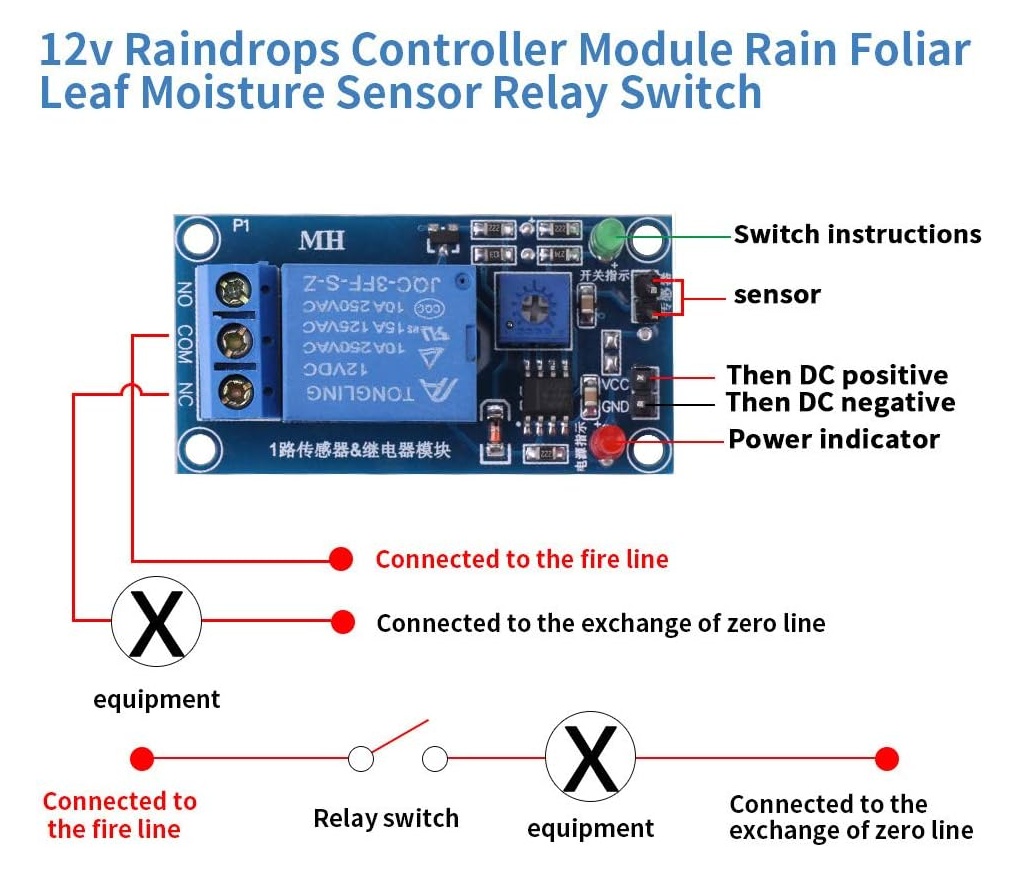

- When power is connected, the power indicator light is turned on, and there is no water drop on the sensor board, the relay is closed and the associated equipment is started, the switch indicator light is turned on, a drop of water falls, the relay is turned off, and the switch indicator light is turned off,

- Module power supply: 12V,

- During silence: 5-12mA,

- Relay load capacity: 250V 10A (AC) 30V 10A (DC).
