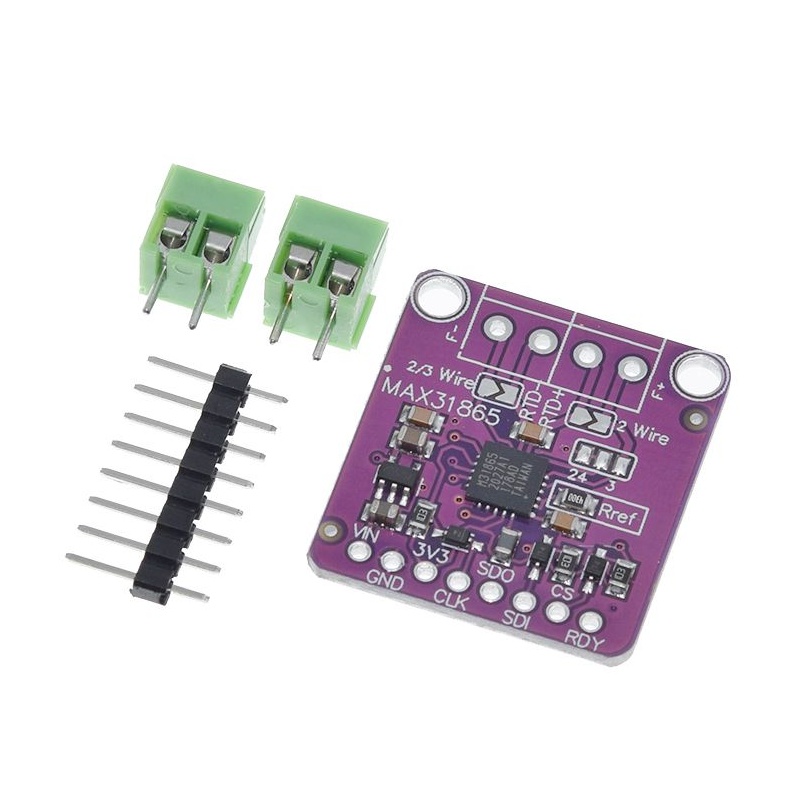

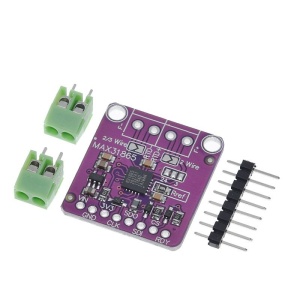

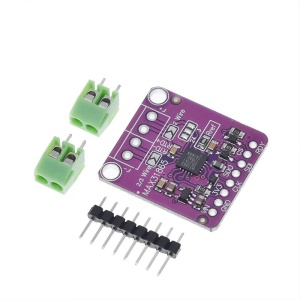

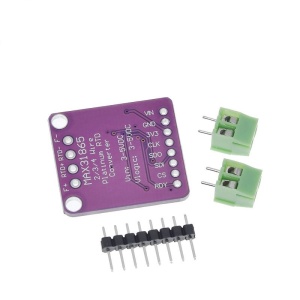

Senzor temperature MAX31865

Opis

- Max31865 Amplifier,

- Similar Adafruit MAX31865,

- MAX31865 Module for PT100,

- Performs temperature sensor readings,

- Amplifies probe output values,

- Works with 2, 3 or 4-wire probes,

- Automatic temperature compensation,

- High precision,

- Allows you to change the settings on the board,

- Factory configured for PT100,

- Comes with terminals and pin bar,

- Supply Voltage: 3-5VDC,

- Logic Voltage: 3-5VDC,

- Reference Resistor: 430ohms (431/4031),

- Simple resistance conversion: From platinum RTD to digital value,

- Supports platinum RTDs: From 100Ω to 1kΩ (at 0°C) (PT100 to PT1000 if changing the resistor),

- Compatible with sensor connections: 2, 3 and 4 wires,

- Interface: SPI,

- Resolution: 15-bit ADC,

- Nominal temperature resolution 0.03125°C,

- Error Margin: ± 0.5°C,

- Max. conversion time: 21ms,

- Dimensions (LxWxD): 28x25x2mm,

- Weight: 5g.
