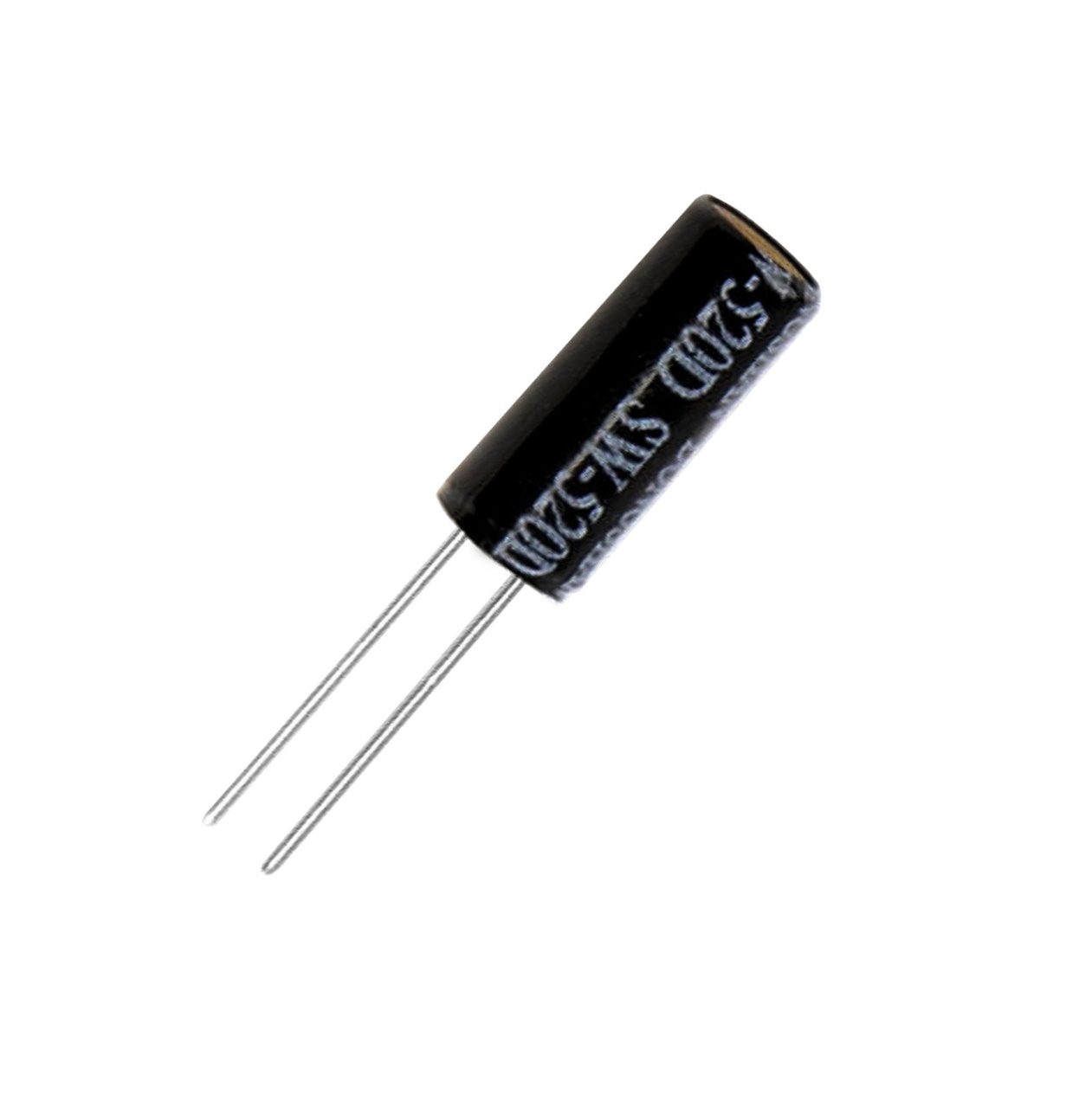

Senzor vibracije SW-520D

This SW-520D basic tilt switch can easily be used to detect orientation. Inside the can is a ball that make contact with the pins when the case is upright. Tilt the case over and the balls don’t touch, thus not making a connection. There are numerous uses for these basic sensors, but keep in mind you might need to use some debouncing code, as the sensor isn’t immune to small vibrations and such.

- Model: SW-520D,

- Max Current : 20mA,

- Max voltage : 12V,

- Conductive time : 2ms,

- Closed resistance :< 10M ohm,

- Open resistance : > 10M ohm,

- Total Size: 23 x 5.2mm/0.9″ x 0.2″(L*D),

- Lead Size: 10 x 0.6mm/0.4″ x 0.024″(L*D),

- Material: Metal, PVC,

- SW-520D is roll ball type tilt switch.
