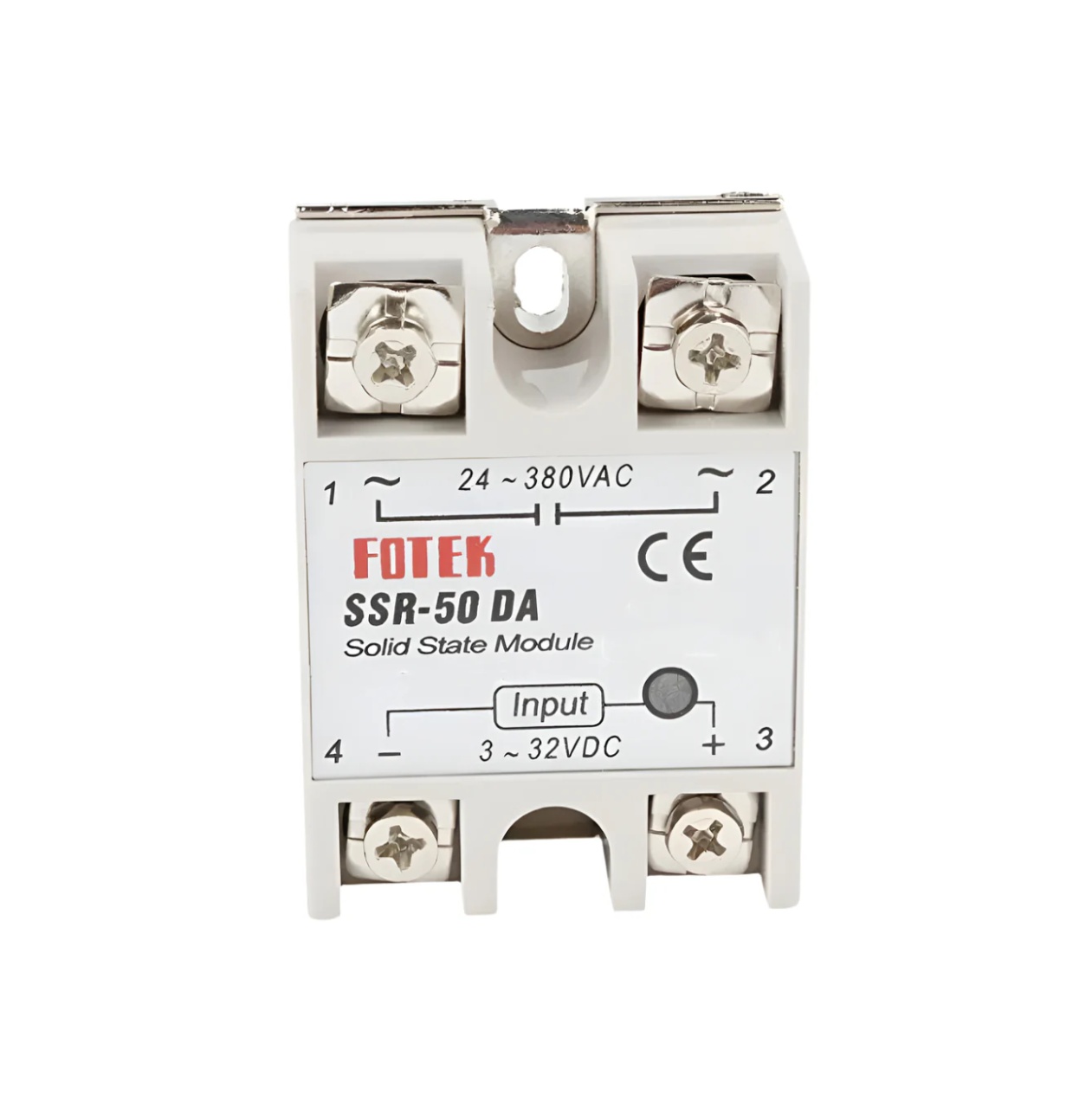

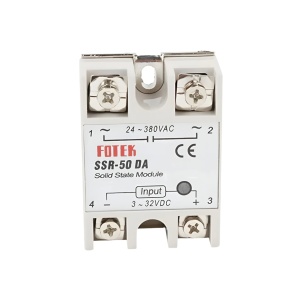

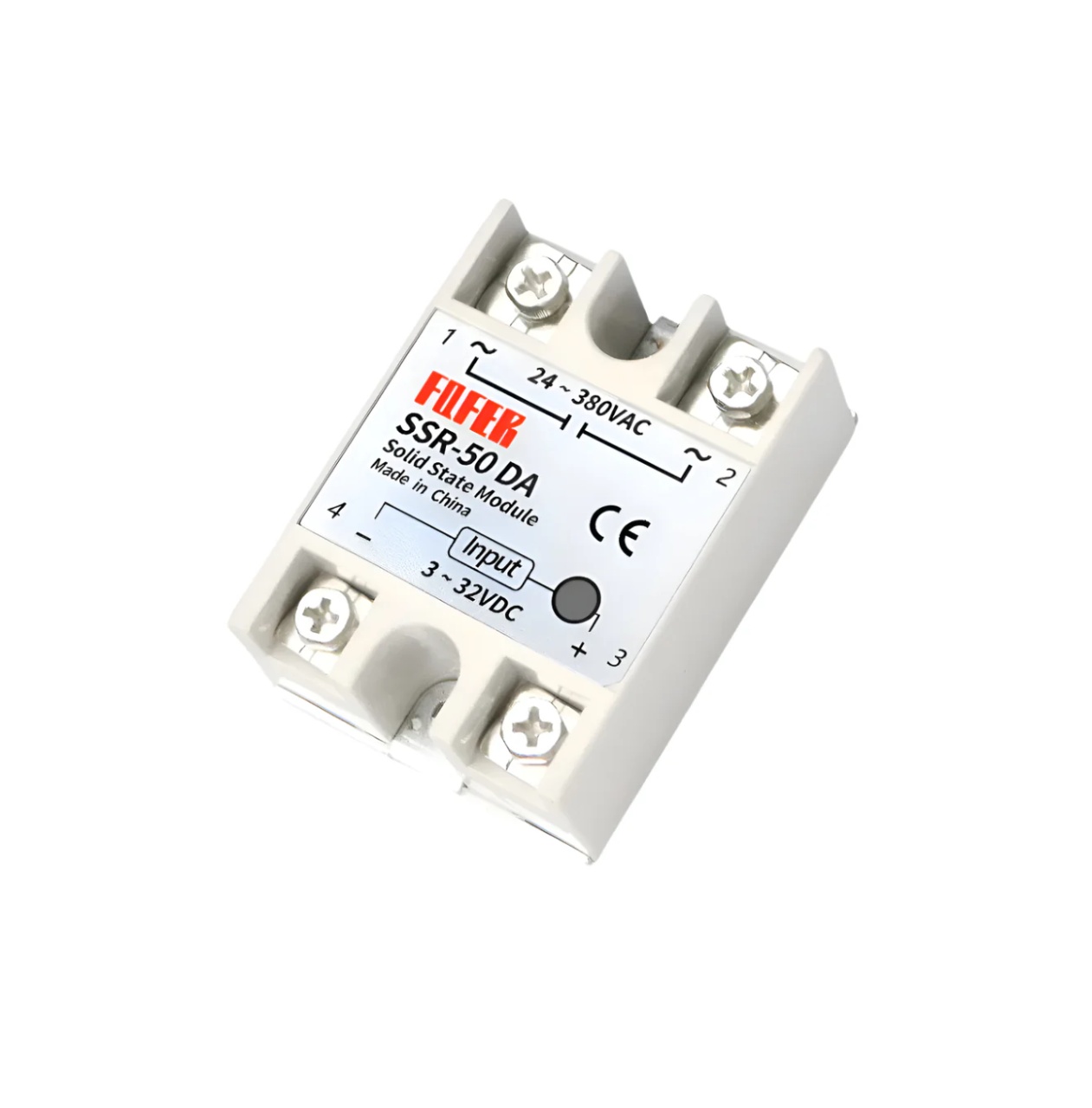

Solid state rele SSR-50 DA

The DC- To- DC SSR-50DD Solid State Relay Module (SSR) is an electronic switch that contains no moving parts, unlike an electromechanical relay. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR. A photo-coupled SSR is controlled by a low-voltage signal isolated optically from the load. The control signal in a photo-coupled SSR typically energizes an LED which activates a photo-sensitive diode. The diode turns on a back-to-back thyristor, silicon-controlled rectifier, or MOSFET transistor to switch the load.

- Model Type: Solid State Relay,

- Dielectric Strength: Over 2.5kVA / 1 min,

- Trigger Voltage (VDC): 3-32VDC,

- Switching Voltage (VDC): 5-220V,

- Operating Temperature (°C): -20 to 85 °C,

- Material: ABS,

- Length (mm): 60.1,

- Width (mm): 45.5,

- Height (mm): 23.6,

- Weight (g): 99.
