Stereo audio pojačalo bluetooth 2x50W TDA7492P

Opis

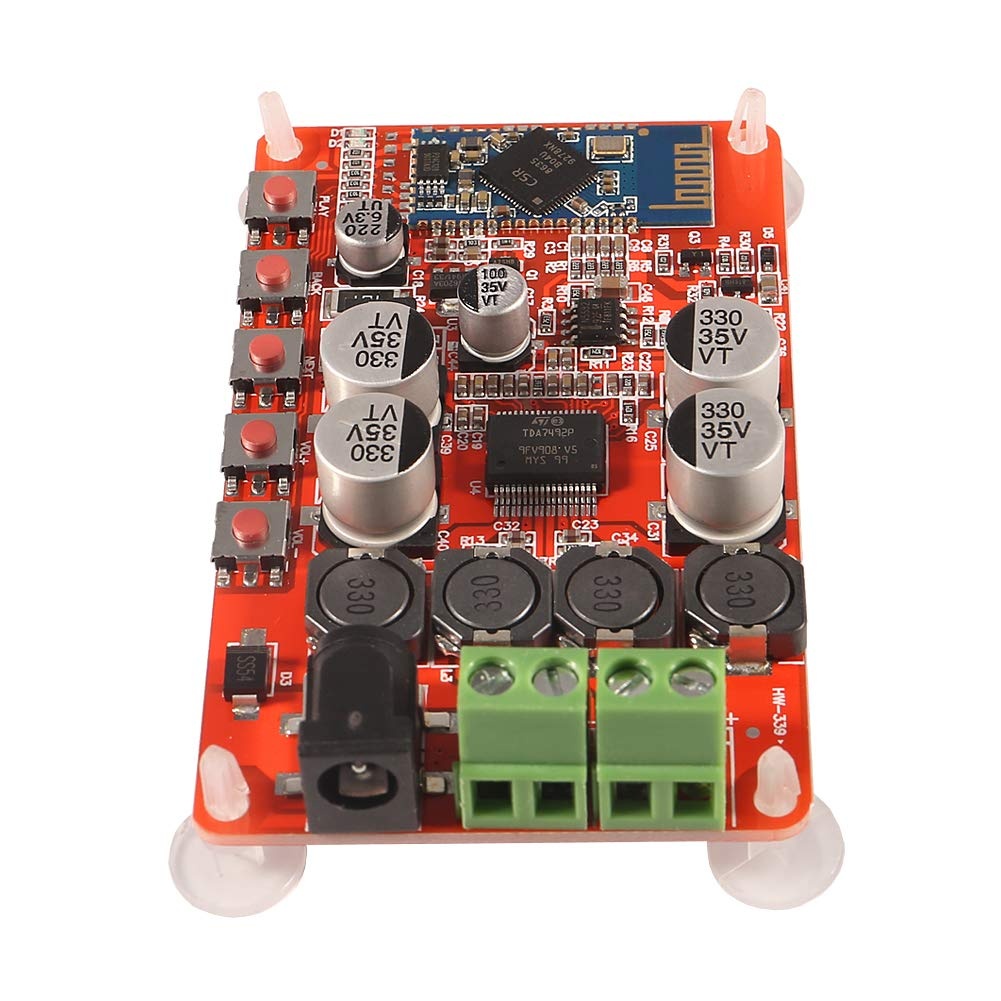

- This amplifier board features a state-of-the-art, with dual channel Class-D TDA7492P audio amplifier, which delivers up to 25W per channel,

- Build in with Bluetooth 4.0 enable wireless receiving of audio playback from mobile devices,

- Power Supply: 8 ~ 24Vdc,

- Speaker Output Power: 25W+25W at THD 10% 8Ω @ 20Vdc,

- Bluetooth: CSR8635 Audio Bluetooth V4.0,

- 1mm Power Supply Input Jack,

- Speaker Impedance: 8Ω,

- Headphone Output: 32Ω. Stereo 3.5mm Jack,

- Fixed gain settings of nominally 21.6dB, 27.6dB, 31.1dB and 33.6dB,

- Channel Crosstalk: -50dB,

- Size: 82 x 50mm (L x W).
