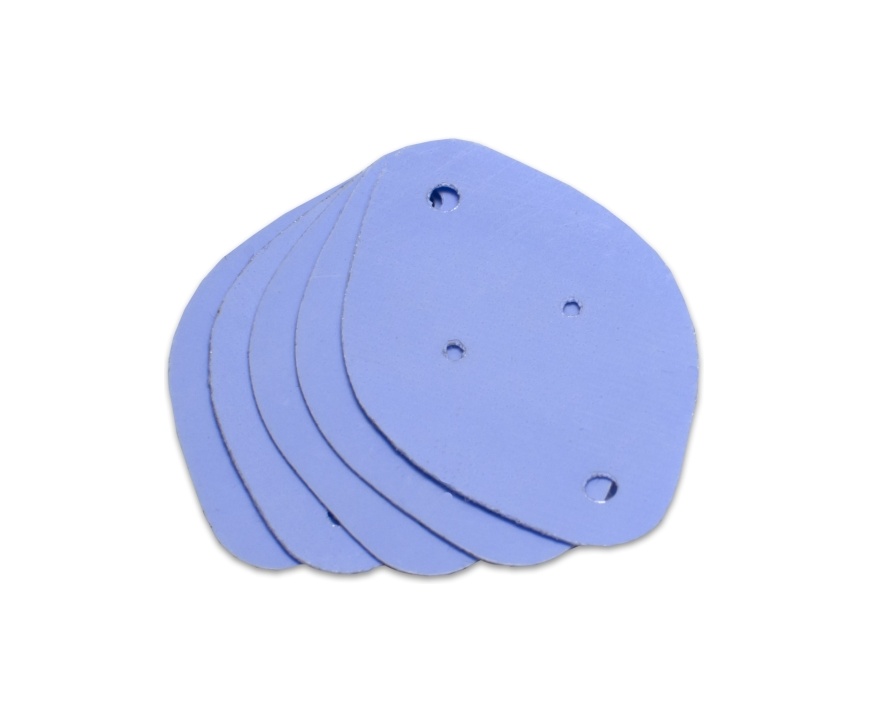

Termoprovodljiva podloga TO3

Opis

Thermally conductive pads with a thermal conductivity of 1.5 W/mK are a good thermal conductor and also a good electrical insulator. The product is double-sided adhesive, reinforced with glass fiber.

- Thermal conductivity: 1.5 W/mK,

- Thickness: 0.3 mm,

- Hardness: 40 Shore,

- Operating temperature: -60 to 200 °C,

- Volume resistance: 10¹¹Ωm,

- Dielectric constant: 5.0 Hz,

- Thermal impedance: 2.47 °C in²/W,

- Dielectric breakdown voltage: > 6 kV,

- Length: 41.5mm,

- Width: 28.2mm.
