Digitalni multimetar AN8002

Opis

Multifunctional Digital Multimeter: for measuring AC/ Current, AC/ Voltage, Resistance, Continuity & Diode, Capacitance, Frequency & Duty Cycle, and temperature. Saving Auto-off: the product is powered, it will automatically off after 15 minutes of inactivity, the built-in beeper will beep 5 times to remind you 1 minute before auto off. Temperature : testing is -20~1000°C/-4~1832°F, °C / °F unit conversion. Other Functions: true RMS, data hold, backlight, low indicator, etc. Made of ABS, which is crash resistant, -shock and has comfort hand-held feeling. Characterized by stable function and high reliability, this multimeter is an tool for laboratory, factory, fans and family use, etc.

- Color: Black / Blue / Orange / Red (Optional),

- Material: ABS,

- Display: 6000 counts,

- Sampling Rate: 3 times/second,

- Voltage: /60V/600V/1000V/60mV/600mV,

- Voltage Accuracy: ±(0.5%+3),

- AC Voltage: /60V/600V/750V/60mV/600mV,

- AC Voltage Accuracy: ±(1.0%+3),

- Current: 6A/10A/60mA/600mA,

- Current Accuracy: ±(1.2%+3),

- AC Current: 6A/10A/60mA/600mA,

- AC Current Accuracy: ±(1.5%+3),

- Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ,

- Resistance Accuracy: 600Ω~6MΩ: ±(0.5%+3); 60MΩ: ±(1.5%+3),

- Capacitance: 9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF,

- Capacitance Accuracy: 9.999nF: ±(5.0%+20); 99.99nF~999.9uF: ±(2.0%+5); 9.999mF: ±(5.0%+5),

- Frequency: 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz,

- Frequency Accuracy: ±(0.1%+2),

- Duty Cycle: 1~99%,

- Duty Cycle Accuracy: ±(0.1%+2),

- Diode: Yes (forward current is approx. 5mA, voltage is approx. 3V),

- Continuity: Yes (<50Ω),

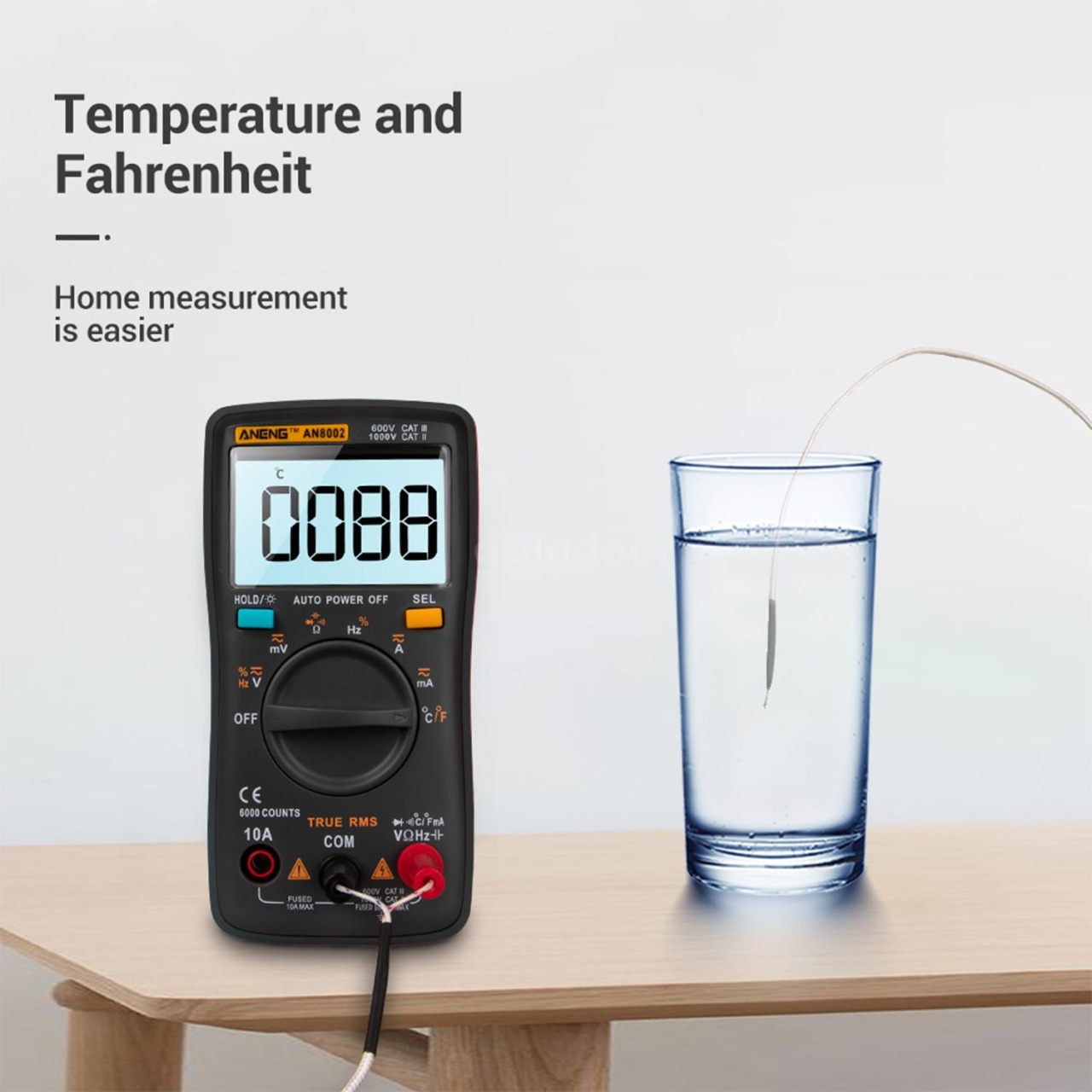

- Temperature : -20~1000℃/-4F-1832℉,

- Temperature Accuracy: ±(2.5%+5),

- Working Environment: 0~40℃, relative humidity: <75%,

- Storage Environment: -20~60℃, relative humidity: <80%,

- Power Supply: 2 * 1.5V AAA (Not included),

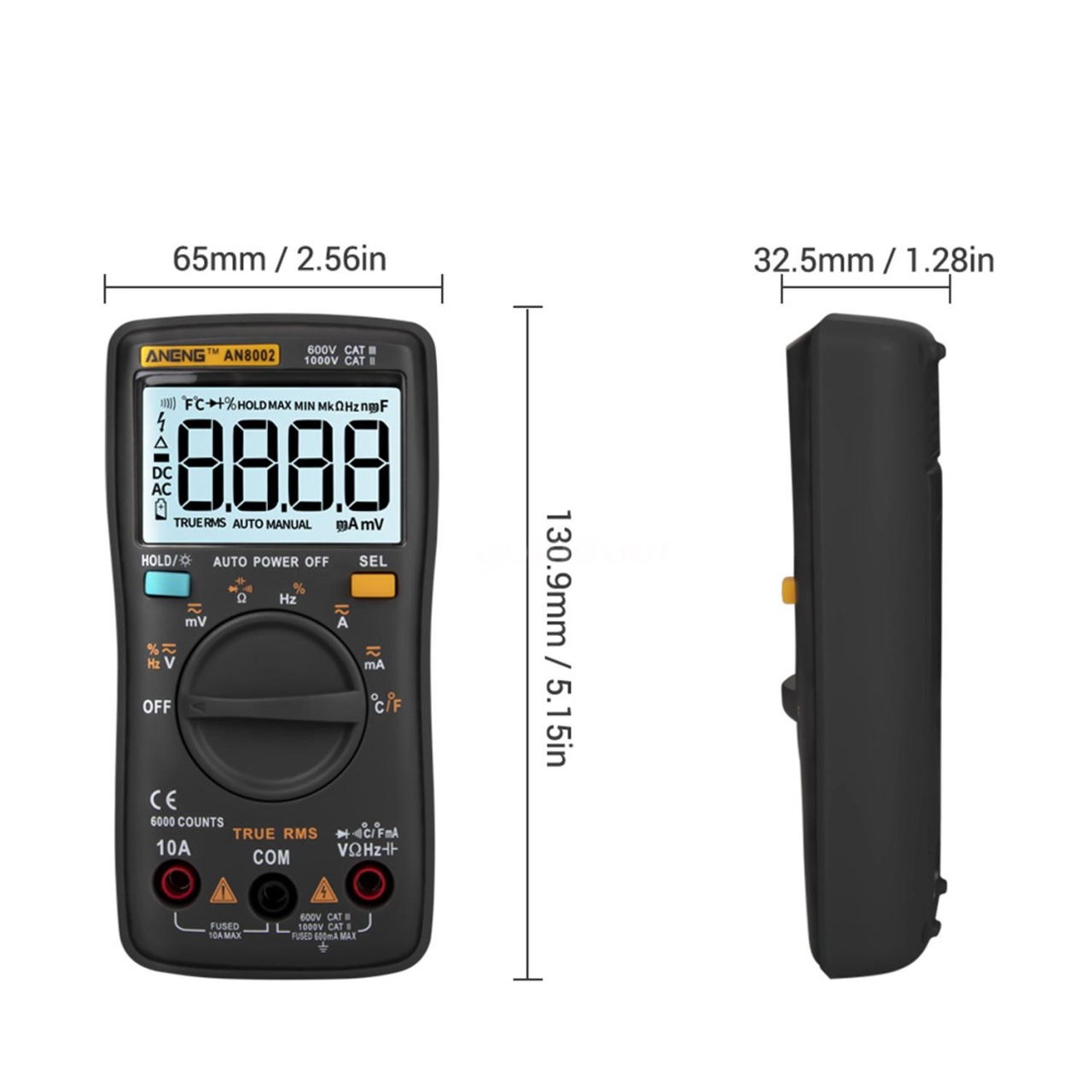

- Item Size: 130.9 * 65 * 32.5mm / 5.15 * 2.56 * 1.28in,

- Item Weight: 170g / 5.99oz,

- Package Weight: 239g / 8.43oz,

- Package Size: 14 * 8 * 4cm / 5.51 * 3.15 * 1.57in.
