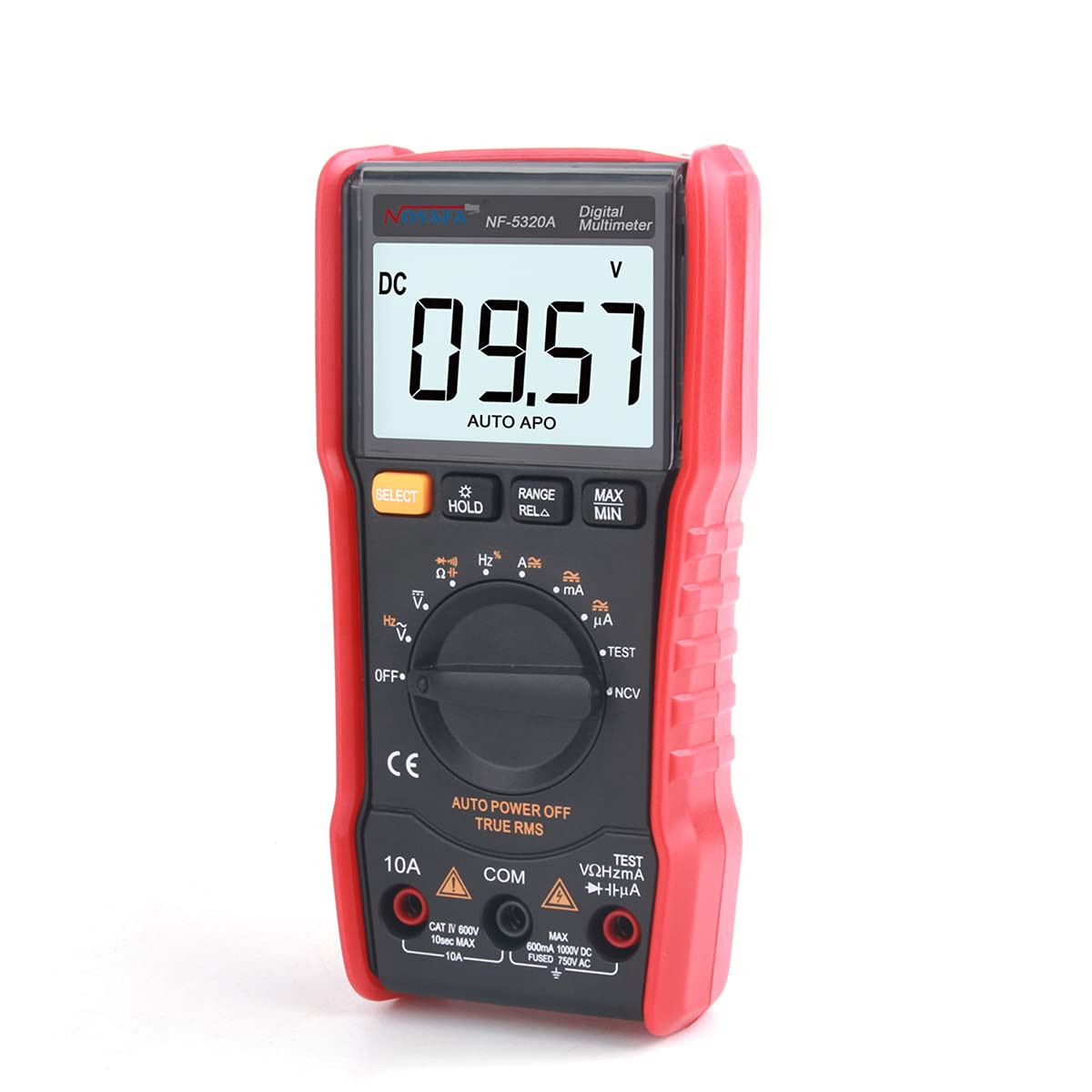

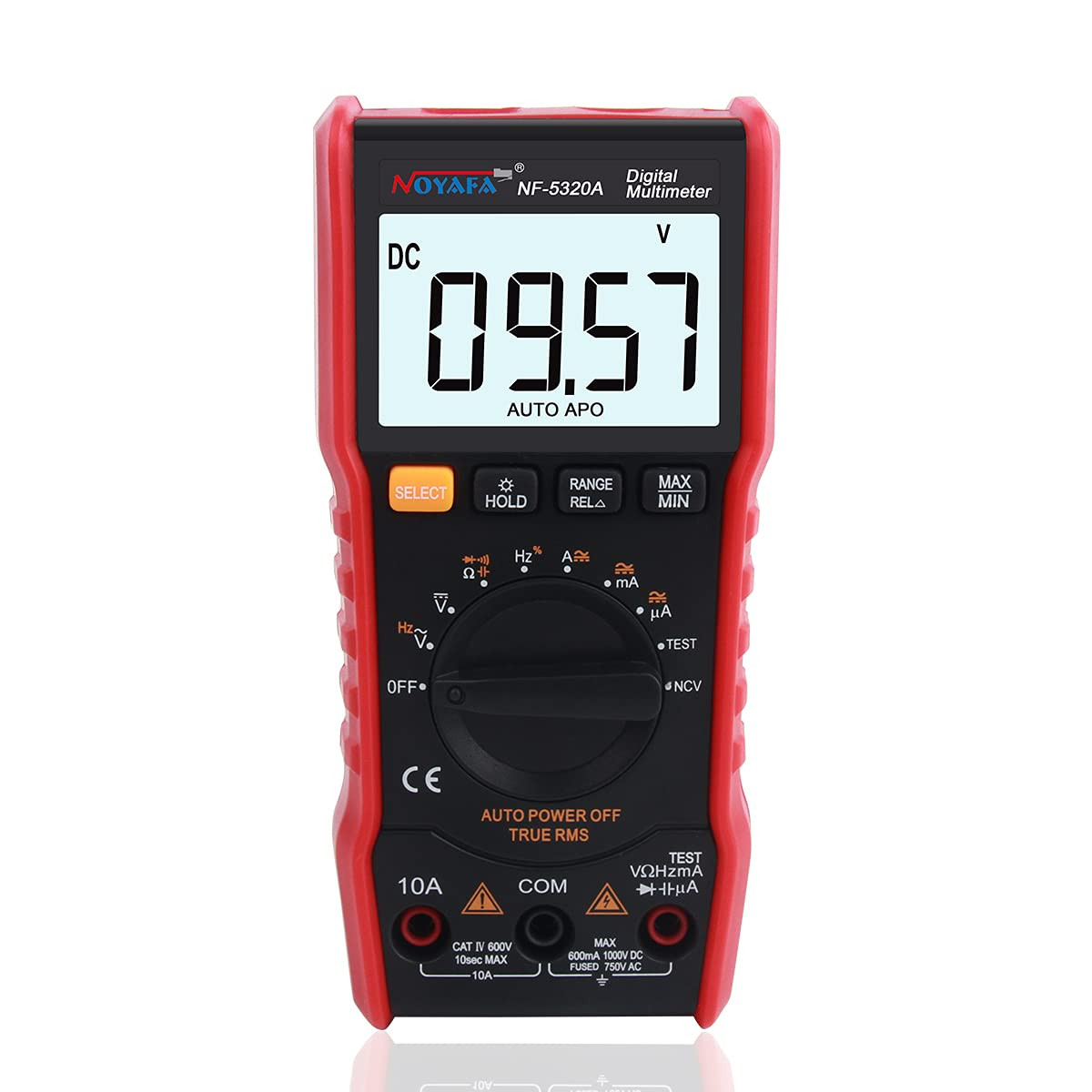

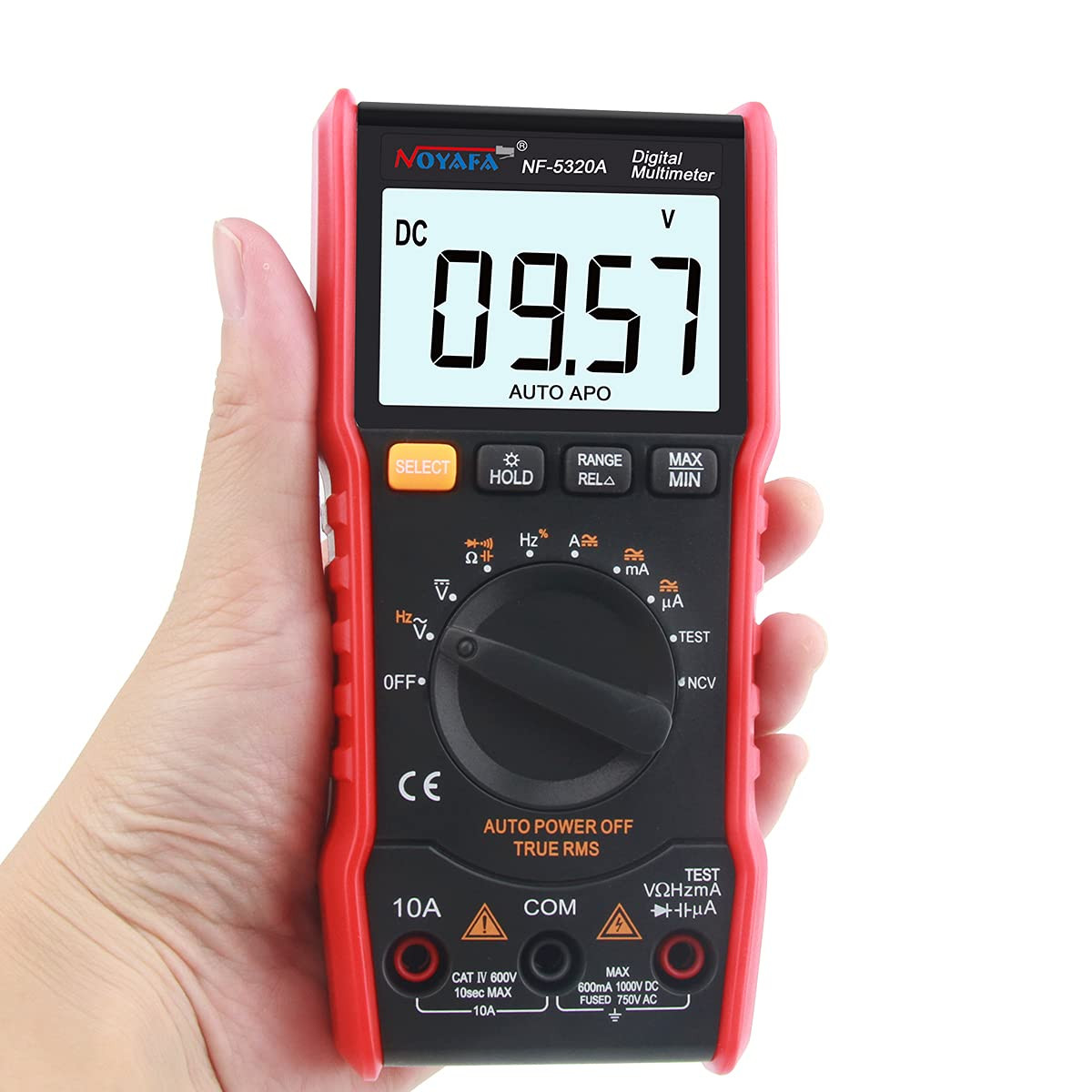

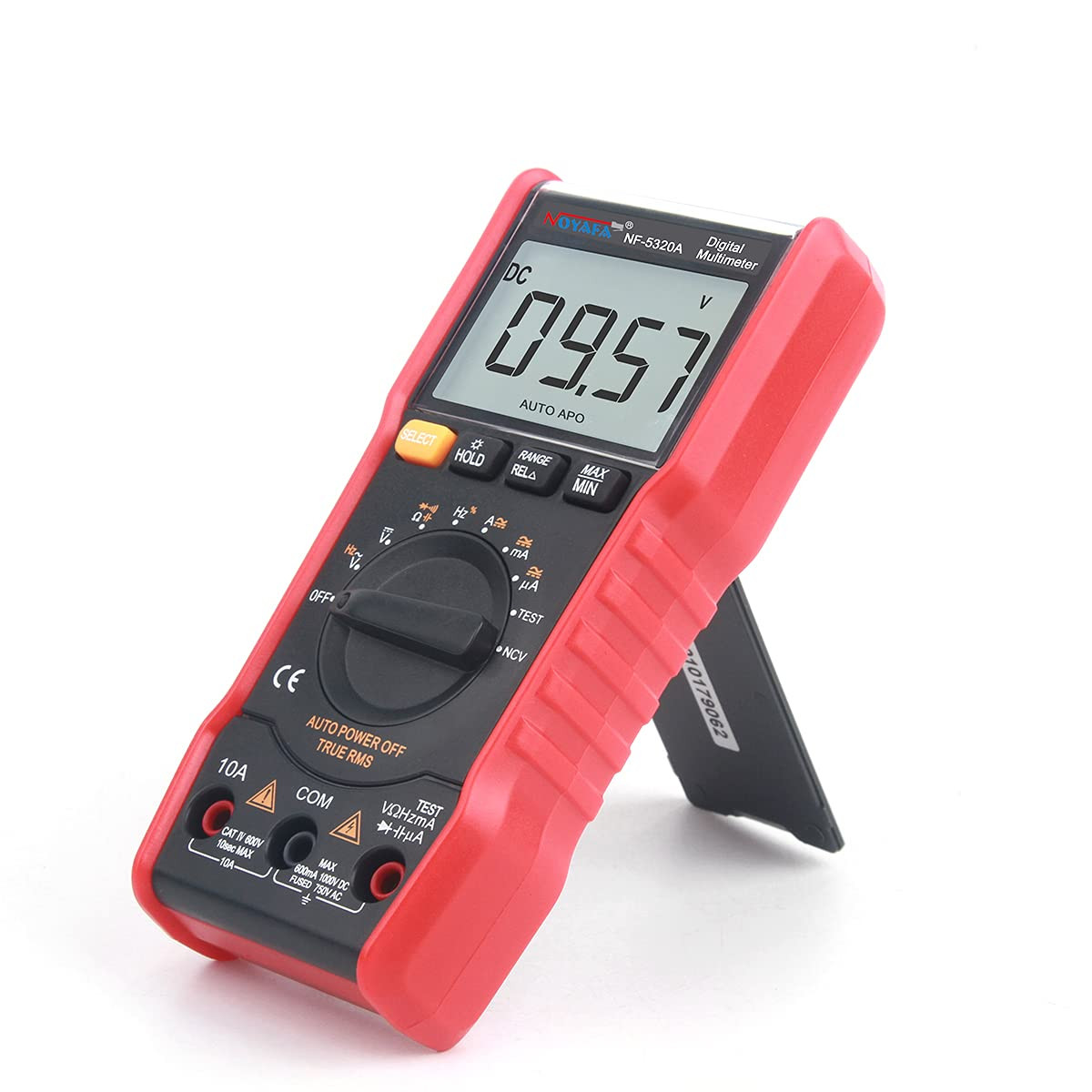

Digitalni multimetar NF-5320A

Opis

- NF-5320 is a automatic Scanning Digital Multimeter, for identification of DC voltage and AC voltage, DC current 1OA, resistance,

- Recognize and measure based on the input voltage/current/resistance/current,

- Measure capacitors, diodes, continuity testing, and other parameters,

- Adopts large screen LCD display and boost power supply,

- Stable performance, high precision, high reliability, clear reading and overload protection,

- Display: liquid crystal display (LCD),

- Measurement method: double integral A/D conversion,

- Working environment：(0～40)℃，relative humidity＜80%,

- Sampling rate: about 3 times per second,

- Maximum display: 5999 (3 5/6) bit automatic polarity display,

- Accuracy ±(reading data of a%+ least significant digits), guaranteed accuracy environment temperature: (23±5)℃, Relative humidity <75%,

- Power: AAA 2* 1.5V battery,

- Overload protection: 1000V DC or 750V AC peak,

- Input impedance: 10MΩv Value: automatically switched between 6V/60V/600V/1000V.
