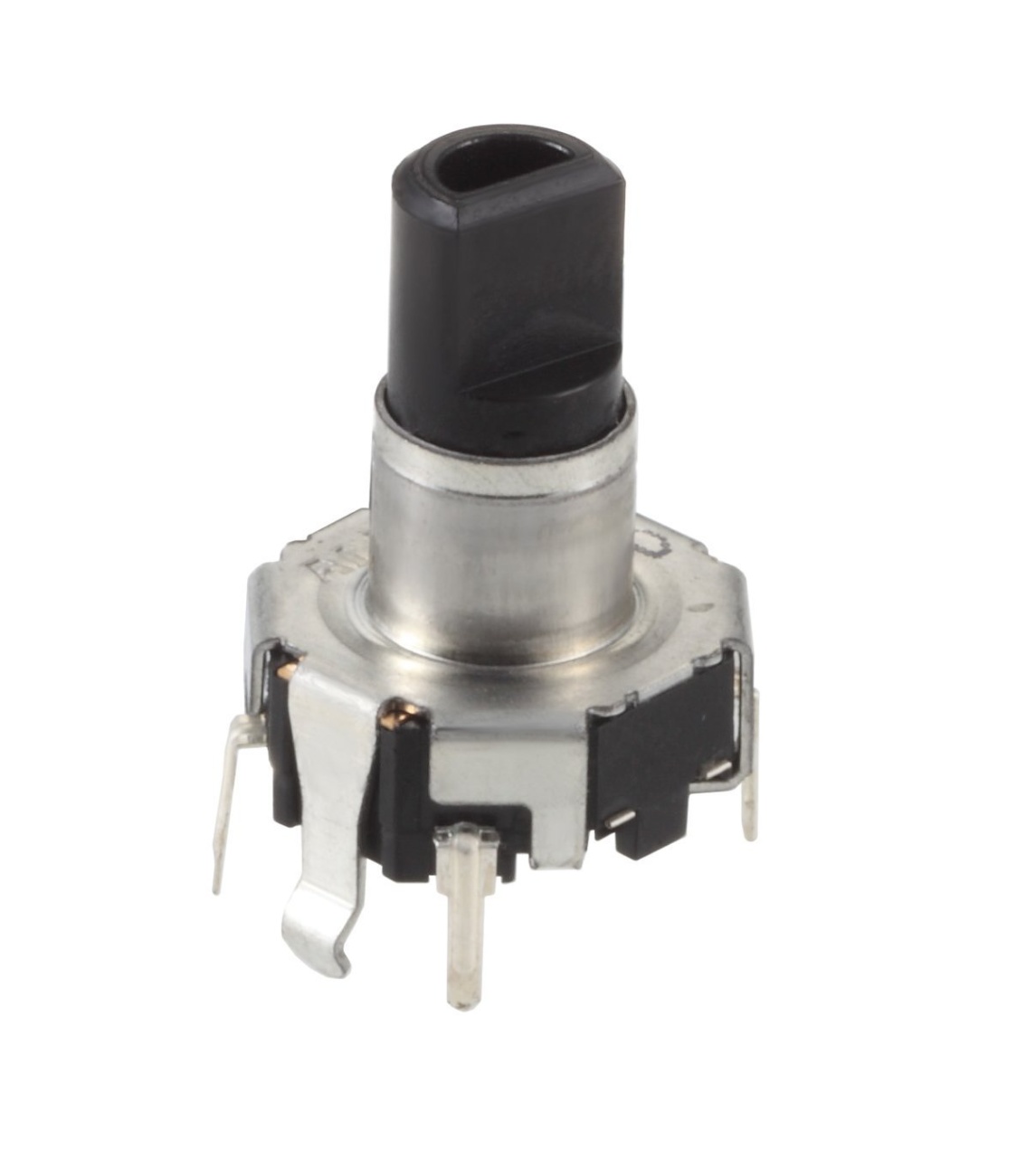

Enkoder EC12D1564402

Opis

Incremental Type Encoder 12 Type Insulated Shaft Type EC12 Series

- Operation part length: 17.5 mm,

- Click Torque: 10±5mN·m,

- Number of Clicks: 30,

- Number of pulse: 15,

- Operation Direction: Vertical,

- Switch Working Force: 3N,

- Switch movement amount: 0.5 mm,

- Usable temperature range: -40 ~ +85 ℃,

- Rating: 1mA 5V DC,

- Output signal: 2 phase output of A, B,

- Maximum / minimum working current (resistance load): 10 mA/1 mA,

- Insulation Resistance: 100 MΩ min. 250 V DC,

- Withstanding Voltage: 300V AC for 1 minute or 360V AC for 1s,

- Click torque: 10±5mN·m,

- Shaft push strength: 100 N,

- Operating life: 30,000 cycles,

- Push-on switch specification; Circuits; Contacts: Single Pole Single Throw (Push-On),

- Push-on switch specifications: Movement amount: 0.02 ± 0.01 inch (0.5 ± 0.3 mm) 3(+1.5, -1) N1mA 5V DC (10mA 5V DC max. ratings) 100 mΩ max./200 mΩ max.30,000 times.
