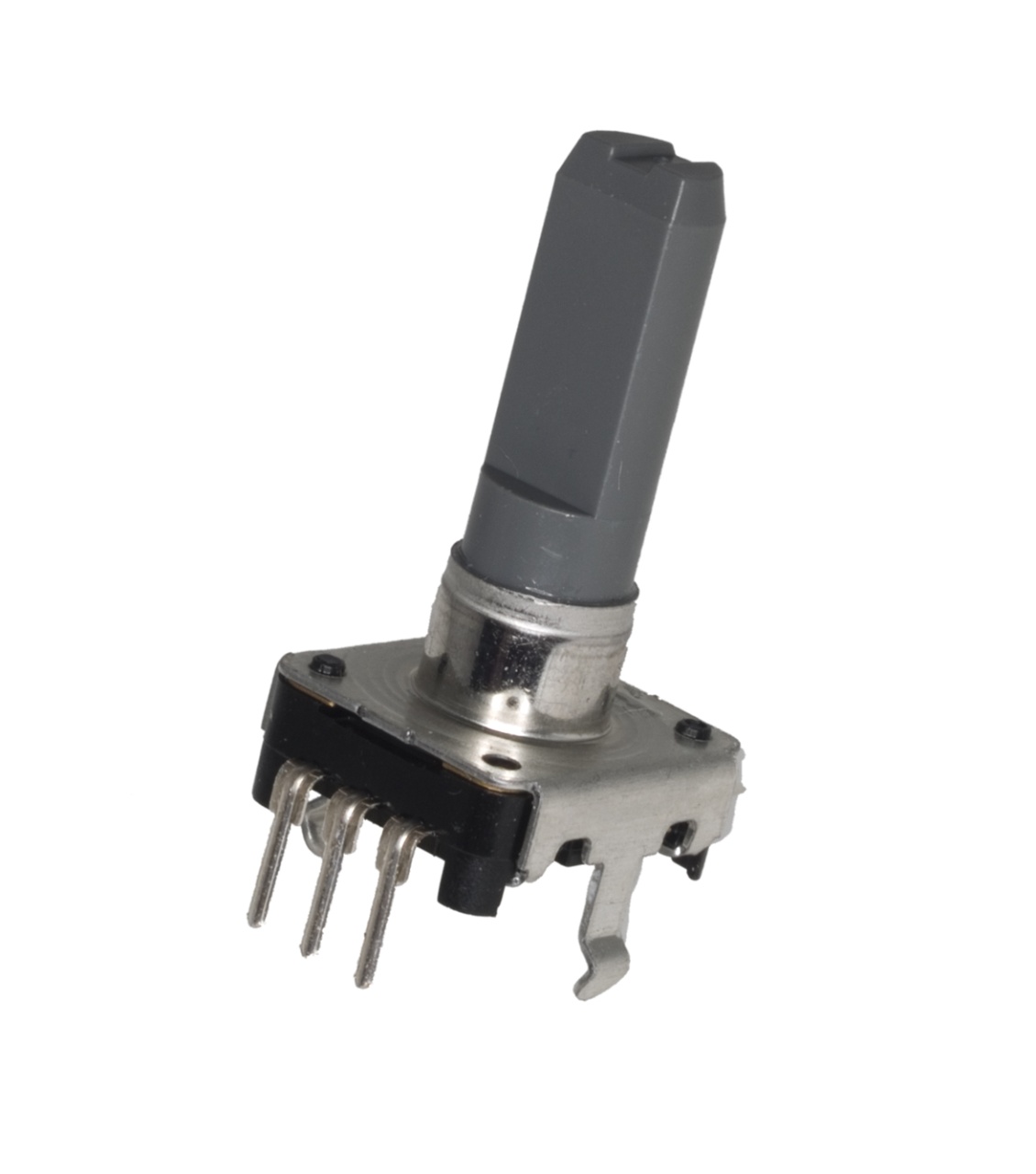

Enkoder EC12E1220405

Opis

- Actuator length: 25.0mm,

- Torque: Standard 3 to 20mN･m,

- Number of detent: 12,

- Number of pulse: 12,

- Control part orientation: Vertical,

- Dimensions: 12mm size,

- Operating temperature range: -10℃ to +70℃,

- Ratings: 0.5mA 5V DC,

- Output signal:  Two phase A and B,

- Max./min. operating current (Resistive load): 5mA/0.5mA,

- Insulation resistance:  10MΩ min. 50V DC,

- Voltage proof:  50V AC for 1 minute,

- Detent torque: 3 to 20mN·m,

- Push-pull strength: 80N,

- Operating life: 30,000 cycles.
