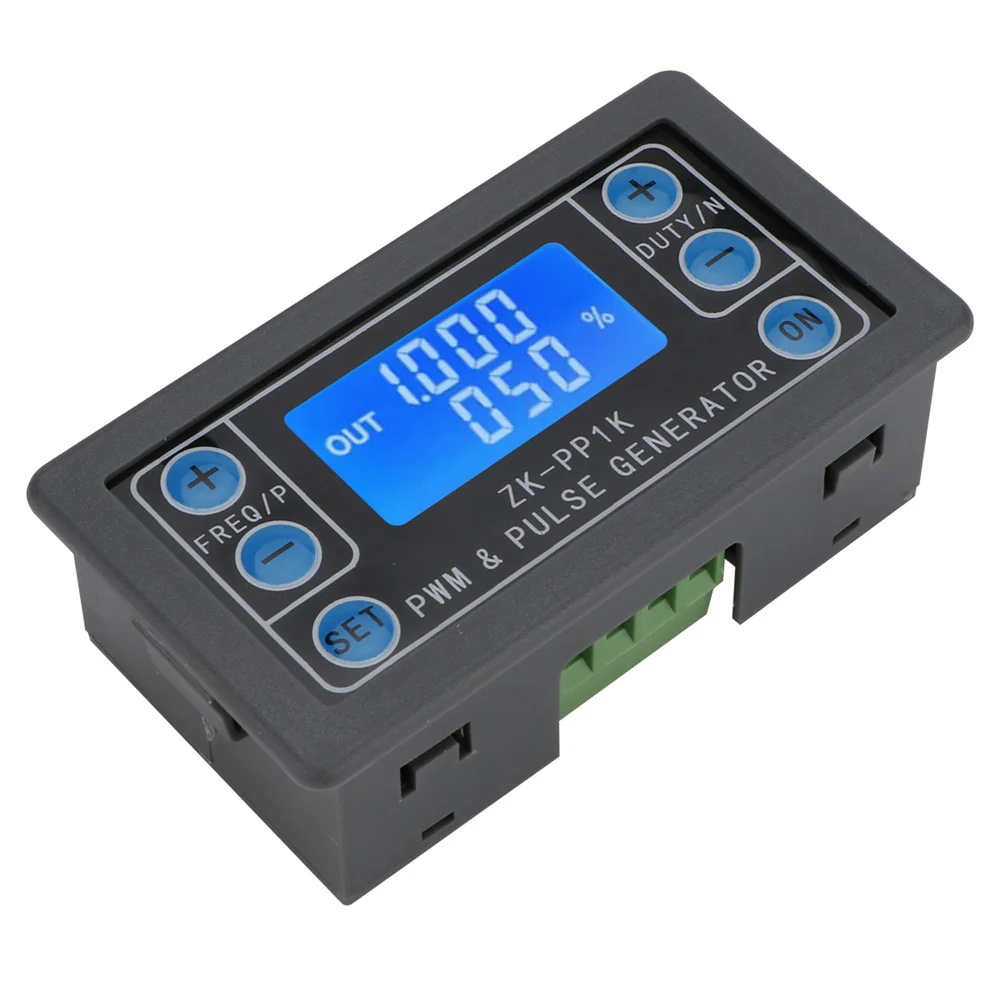

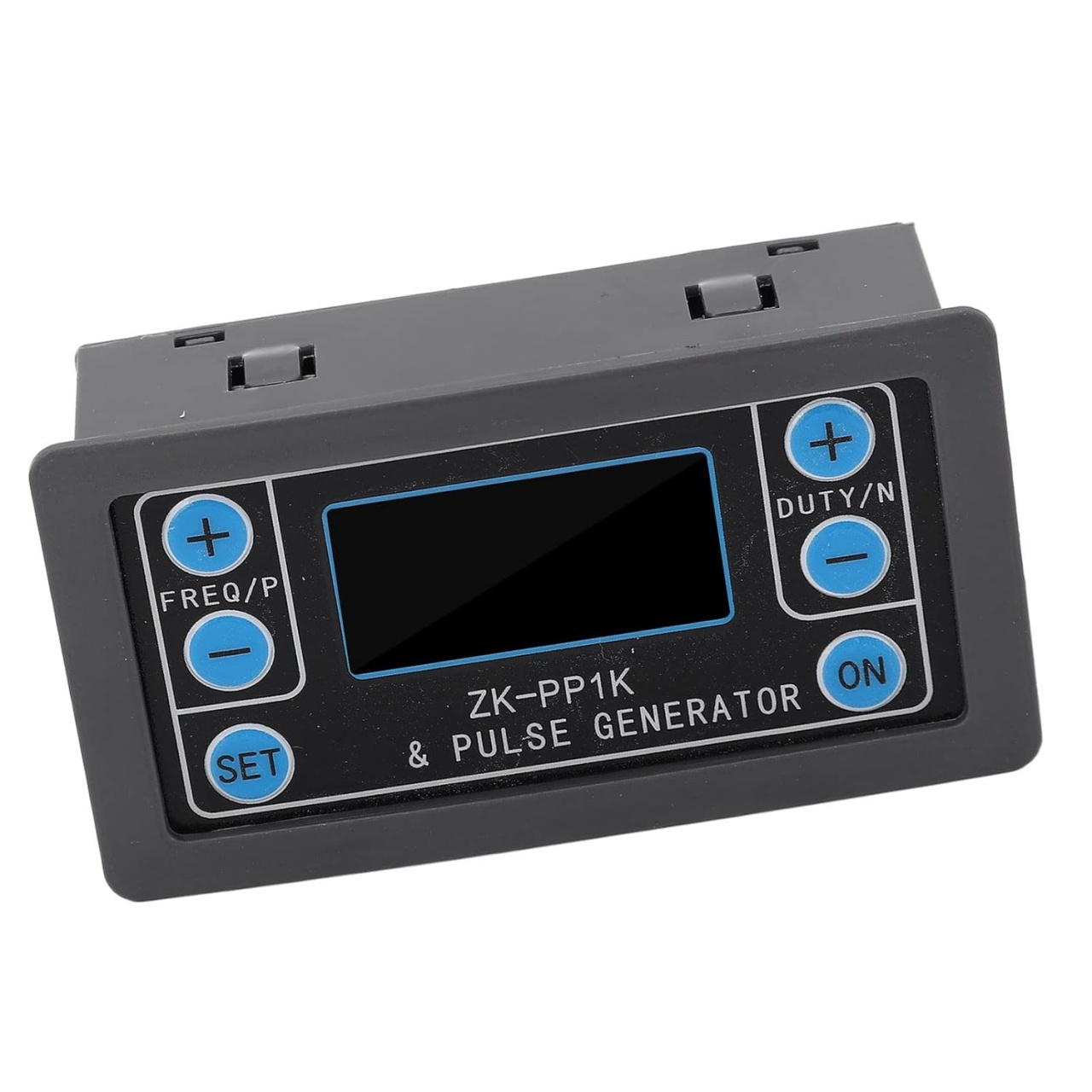

Generator signala ZK-PP1K

Opis

- Two Modes Can Be Selected, Switching Easily - There are PWM mode and pulse mode. Only one mode can be used at a time, but the two modes can be switched at any time,

- With Start-stop Button - External switch can also be used to control output signal ON/OFF,

- Wide Voltage Input - DC 3.3-30 V, with anti-reverse protection, 5.08 mm terminal wiring;Please ensure that the input and output wiring is correct before power on, otherwise it may burn the circuit!,

- Application: Used to generate a square wave rectangular wave signal, which is supplied to DC motors, stepper motor drivers, stepper motors, servo motors, electric gripper, robot arm,

- This is a PWM and pulse signal generator. There are PWM mode and pulse mode. Only one mode can be used at a time, but the two modes can be switched at any time,

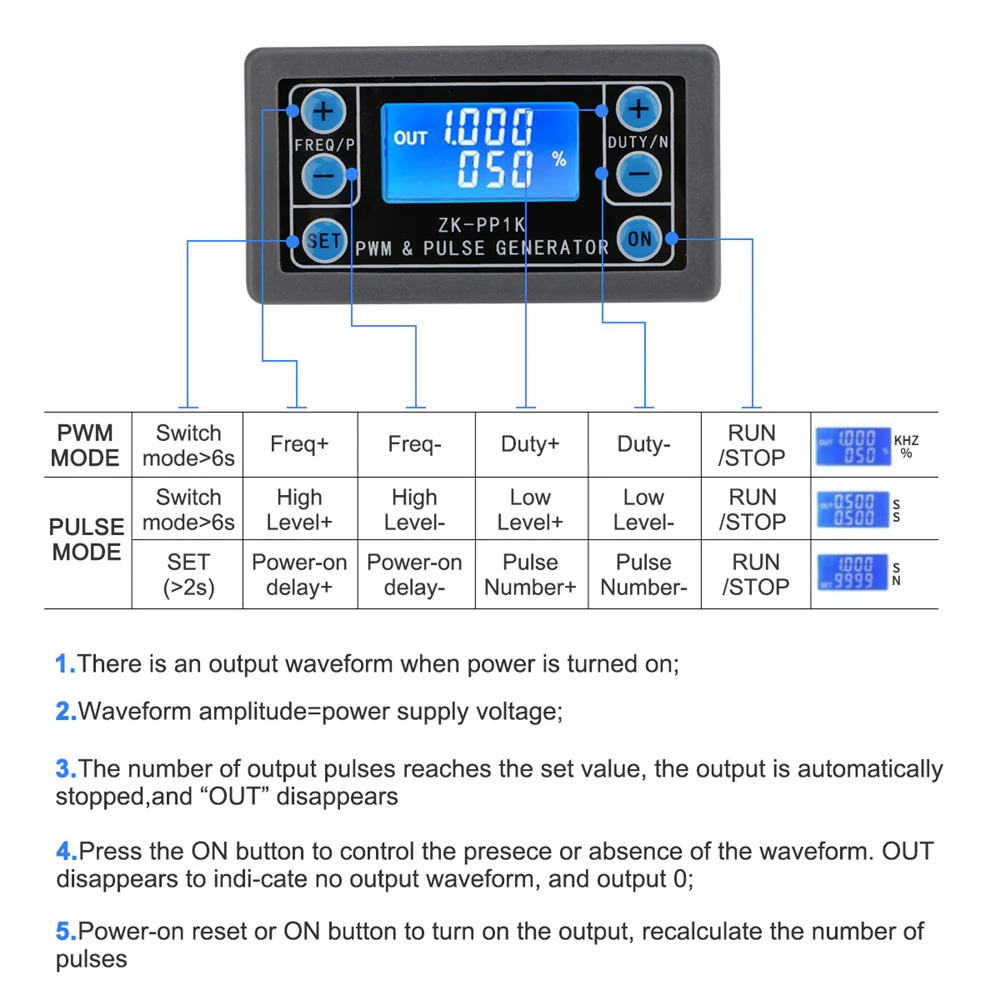

- Two modes can be selected: PWM mode - frequency (continuous), duty cycle, Pulse number is not adjustable, continue to send waveform, PULSE mode - positive pulse width time, negative pulse width time, delayed start time, and adjustable number of pulses,

- With Start-stop Button(external switch can also be used to control output signal ON/OFF),

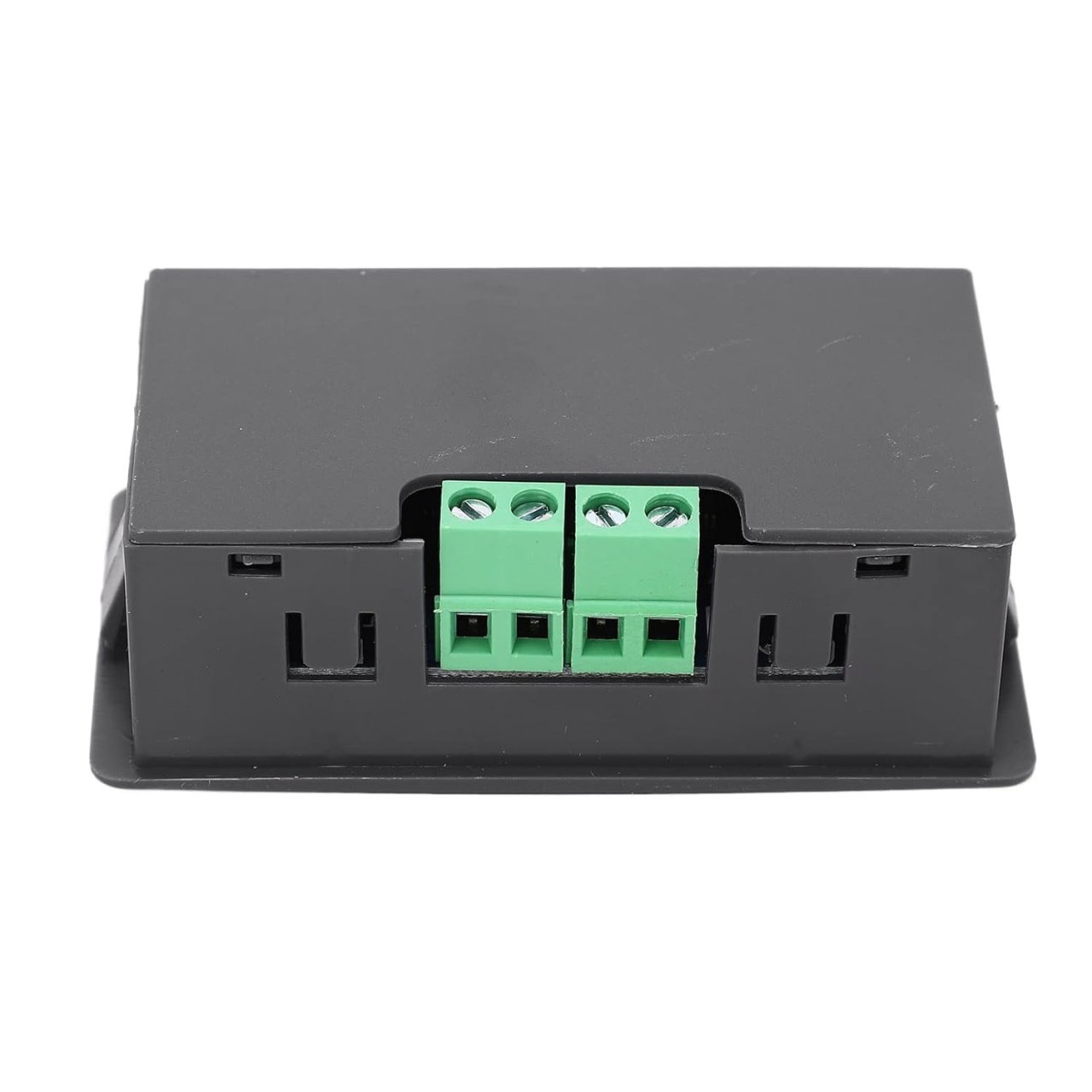

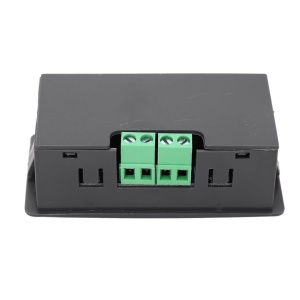

- Wide Voltage Input: 3.3-30V, with anti-reverse protection, 5.08mm terminal wiring,

- Working Voltage: DC 3.3V~30V,

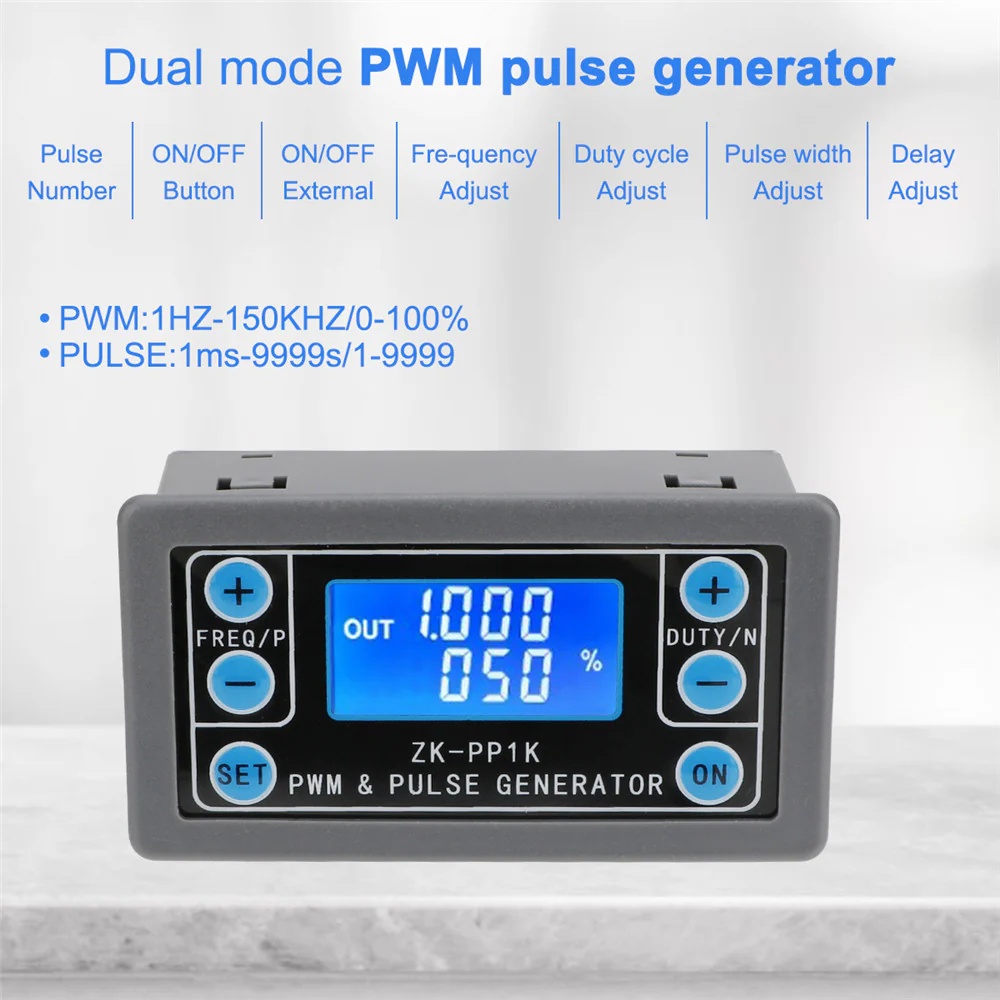

- Frequency Range: 1Hz~150KHz, accuracy about 1%,

- Duty Cycle Range: 0-100%, 1% stepping,

- Number of Pulses: 1-9999, or infinite (display '----' stands for infinity),

- Delay Output Time: 0.000s-9999s, the minimum can be set 1ms,

- Positive and Negative Pulse Width Length: 0.000s- 9999s, the minimum can be set 1ms,

- Signal Loading Capacity: less than 30mA,

- Output signal amplitude: amplitude is equal to the supply voltage,

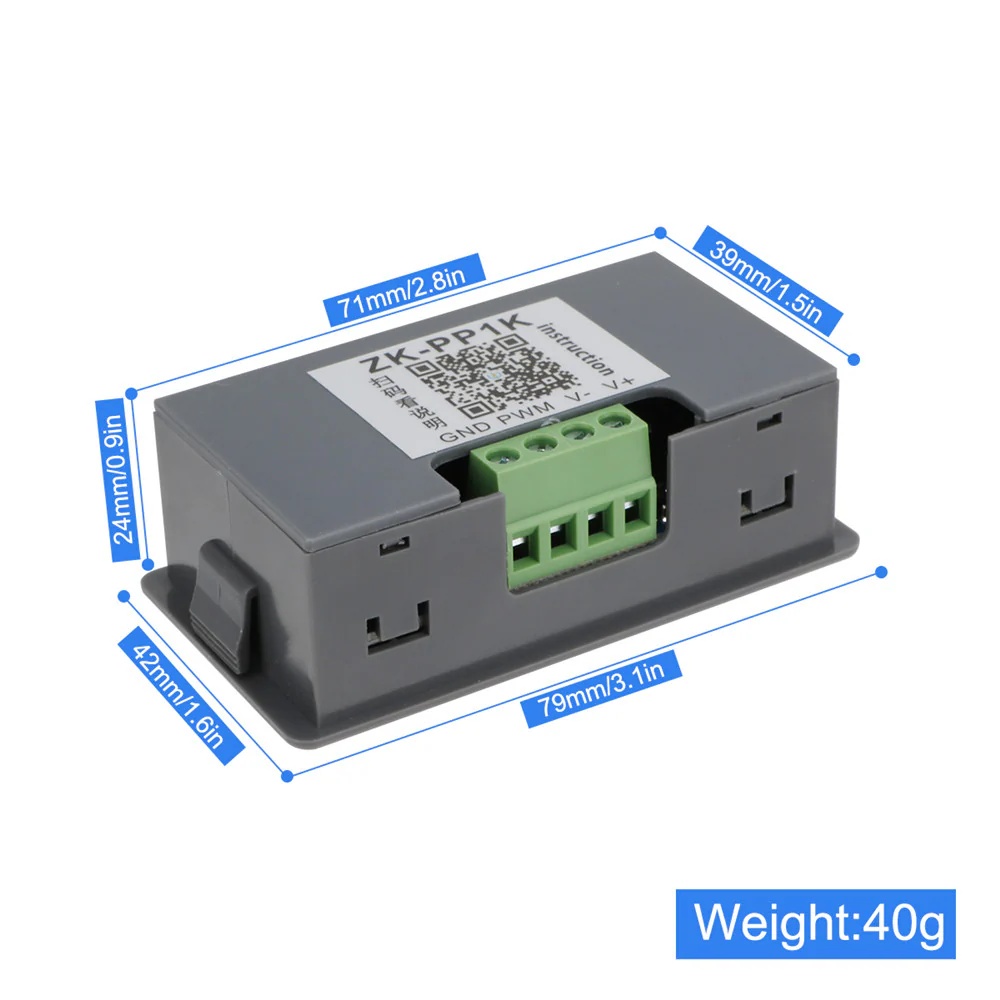

- Size: 79mm*43mm*30mm,

- Weight: 40g.
