RFID kontroler pristupa 125KHz M005

Opis

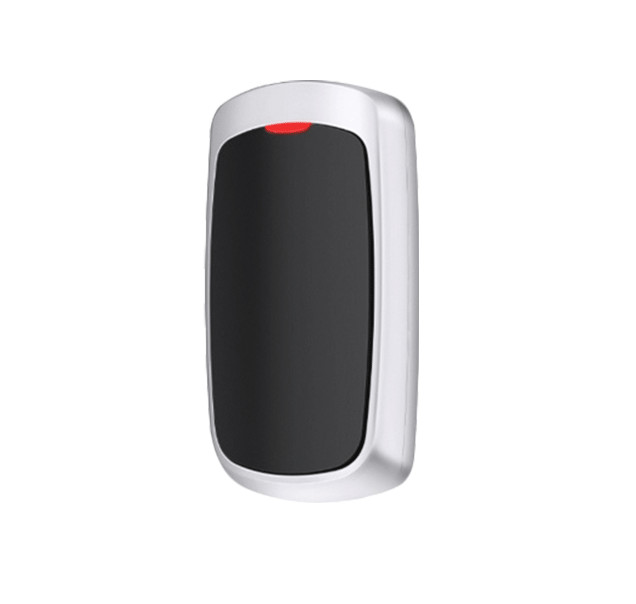

M005 is IP68 metal case RFID Wiegand card reader for entry solutions. This system is a wired communication interface that operates between a reader and a controller

- Metal shell, anti-vandal,

- Very low power consumption,standby current less than 30mA,

- WG 26 output,

- Fast Search speed: time between reading card and opening the door is less than 0.1s,

- Type: Waterproof metal case mini Wiegand card reader,

- Model: EL-M005,

- Working frequency: 125KHz,

- Card type: EM (RFID),

- Card reading distance: 2-5cm,

- Working voltage: 12V DC,

- Static current: ≤35mA,

- Wiegand interface: 26bit/34bit,

- Working temperature: from -40°C to 60°C,

- Humidity: 90% RH (non-condensing),

- IP code: IP68,

- Material: Metal,

- Dimensions (LxHxD): 48x95x19mm.
