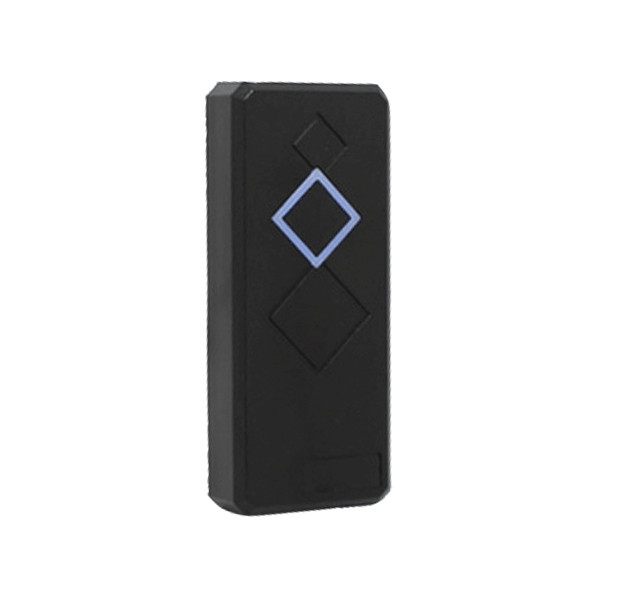

RFID kontroler pristupa 125KHz PCD97

Opis

Wiegand refers to the technology used in card readers and sensors. This system is a wired communication interface that operates between a reader and a controller.

- Type: Mini Wiegand card reader,

- Model: EL-PCD97,

- Working frequency: 125KHz,

- Card type: EM (RFID),

- Card reading distance: 5-10cm,

- Working voltage: 5-16V DC,

- Static current: ≤80mA,

- Output Format: 26bit/34bit Wiegand,

- Communication Distance: 100M,

- Working temperature: from -20°C to 65°C,

- Humidity: 90% RH,

- Material: ABS,

- Dimensions (LxWxH): 80x43x14mm.
