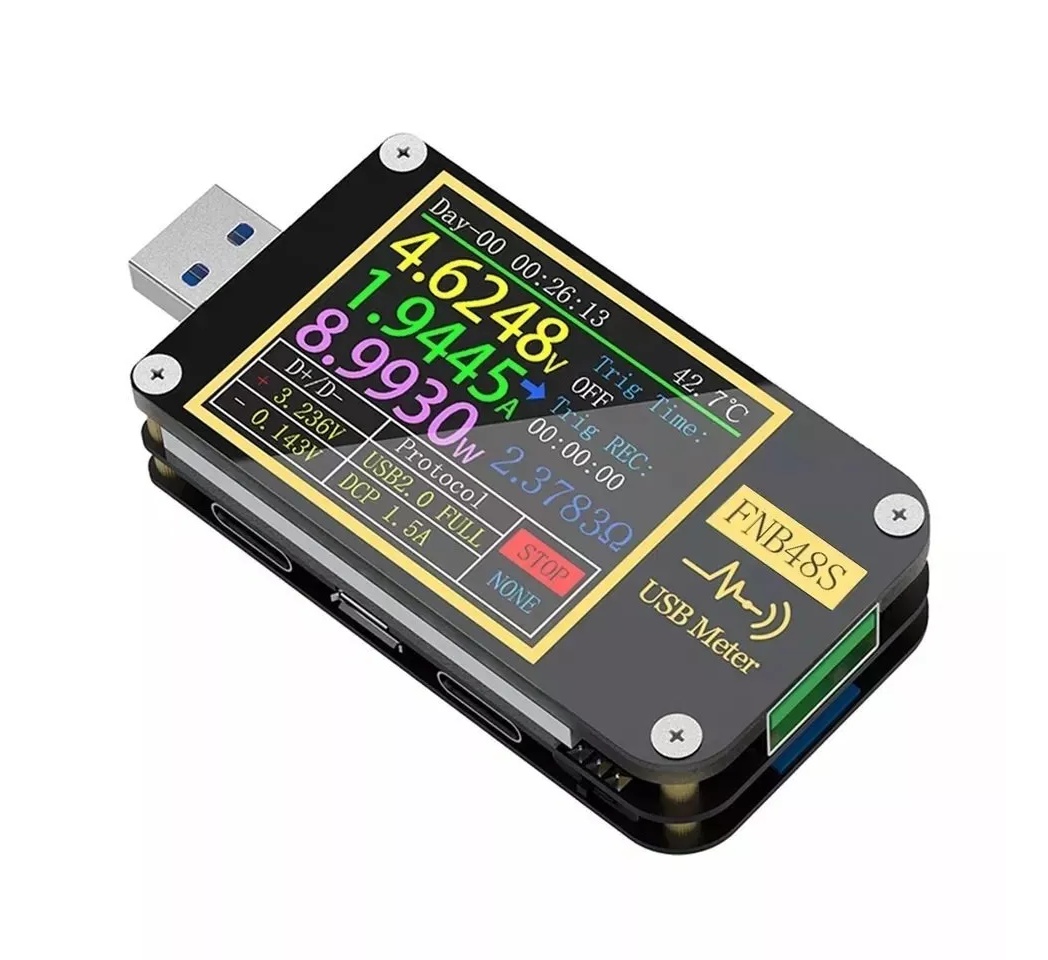

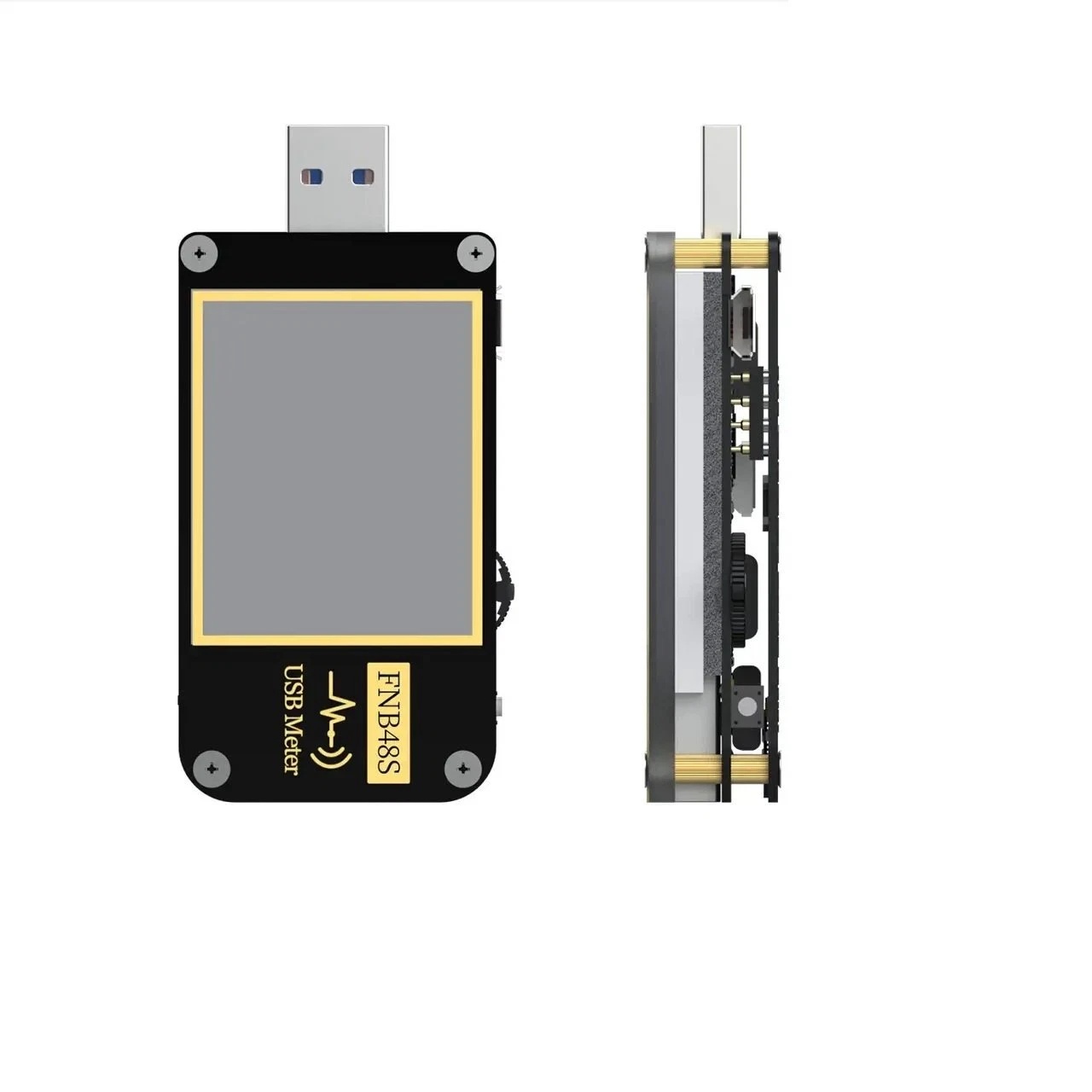

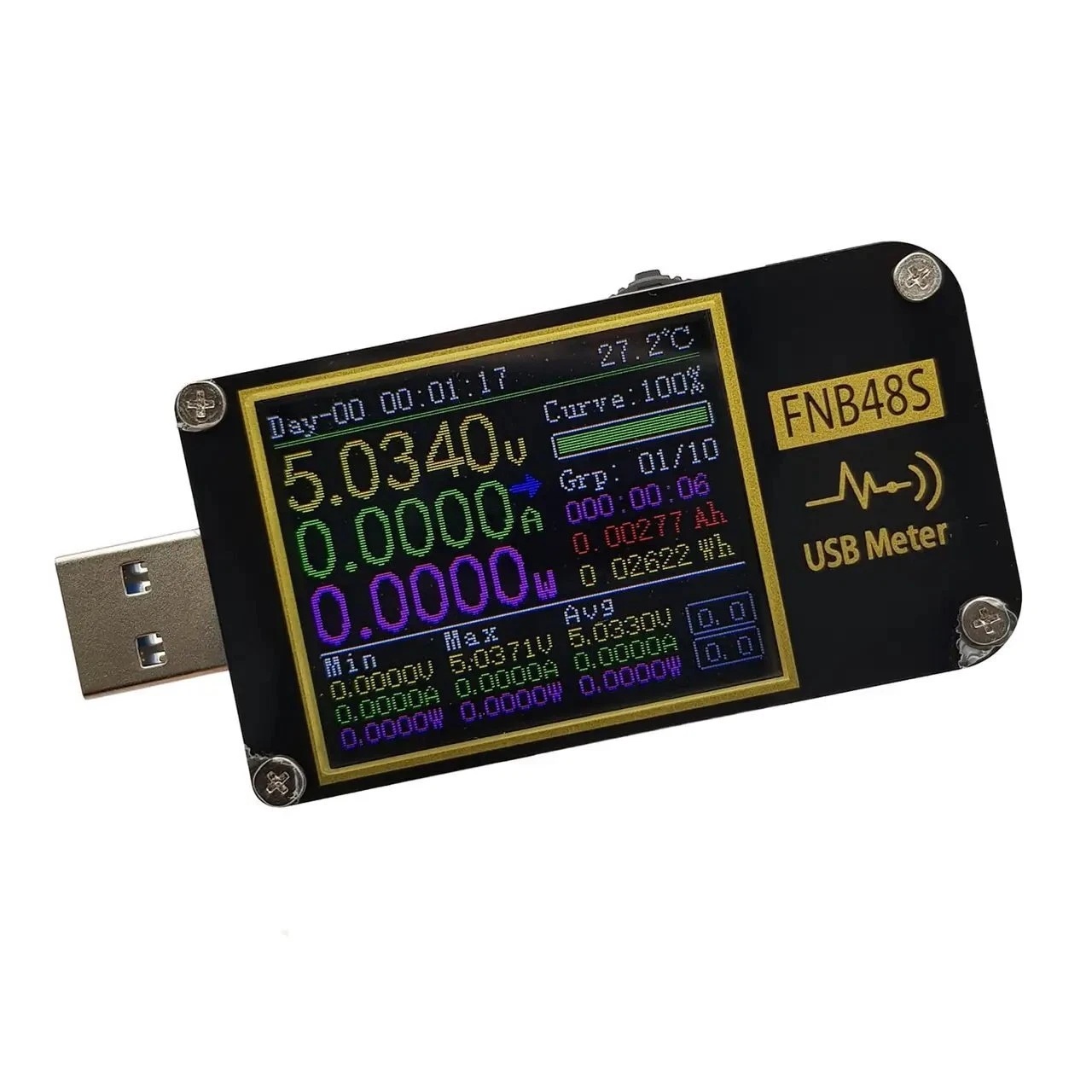

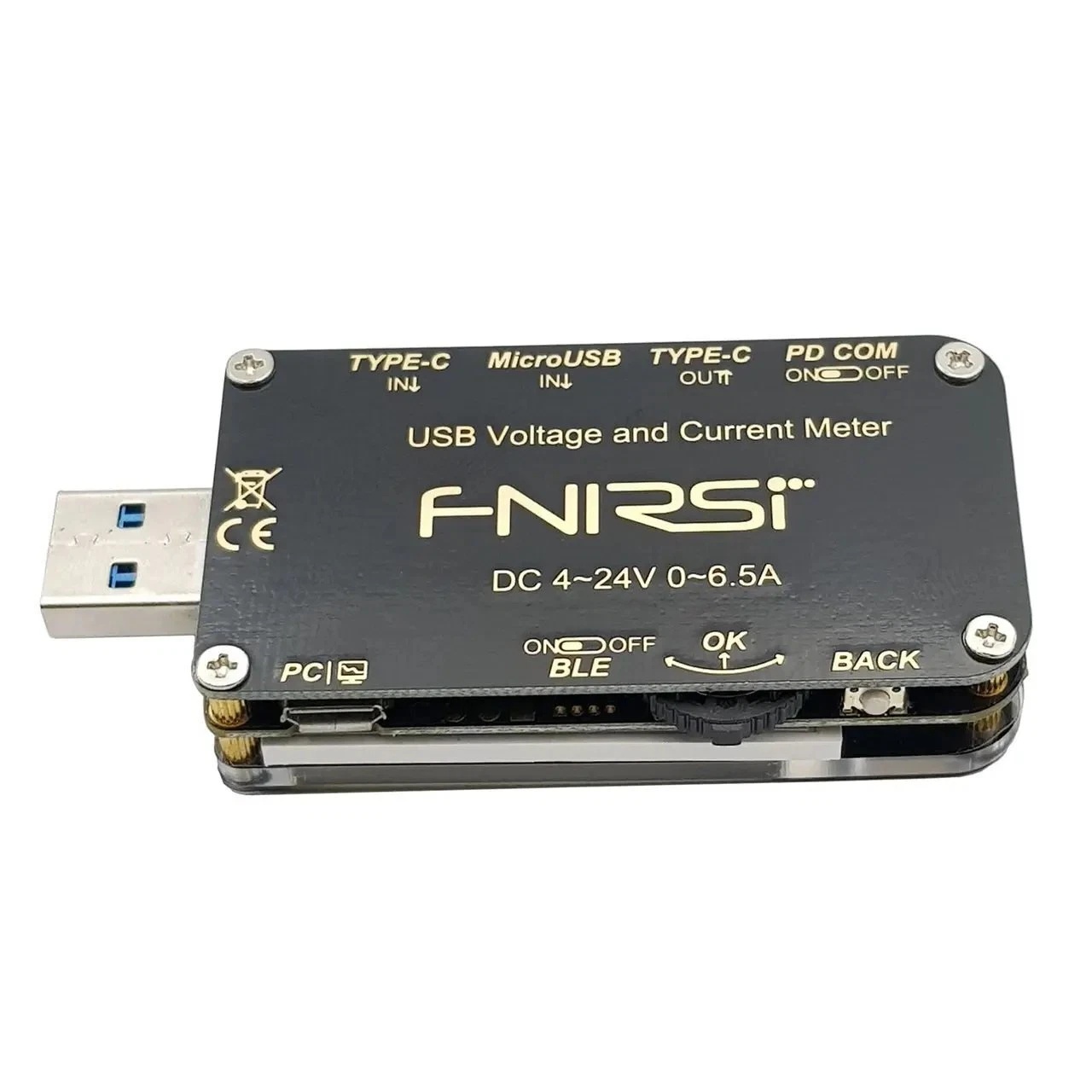

USB tester FNB48S

Opis

USB Tester FNB48S Merač Napona Struje Kapacitet QC4+ PD 3.0

- Precise voltage and current measurements,

- Recognition of fast charging modes: QC2.0, QC3.0, Huawei FCP, Huawei SCP, Samsung AFC, VOOC/WARP, SuperVOOC and MTK-PE,

- Monitoring of Power Delivery operation,

- PD protocol conversion,

- Data storage,

- Software update,

- TFT LCD display 1.77",

- 2 control buttons,

- USB Type A connector,

- USB type A, micro USB, USB type C socket,

- Internal 16-bit ADC converter,

- Input voltage: 3.8 to 24 V,

- Input current: 0 to 6.5 A,

- Input power: 156 W,

- Internal resistance: 0 to 10 kΩ,

- D+/D- voltage: 0 to 3.3 V,

- Temperature measurement,

- Capacity: 0 to 10000 mAh,

- Energy: 0 to 10000 Wh,

- Operating time recording,

- Independent power supply,

- PD physical switch,

- Display orientation detection,

- Bluetooth communication,

- Dimensions: 73x38x14mm.
