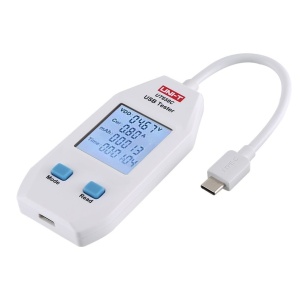

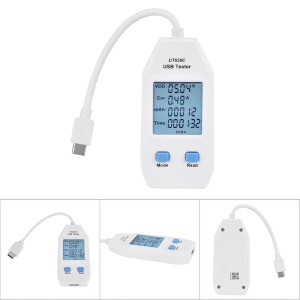

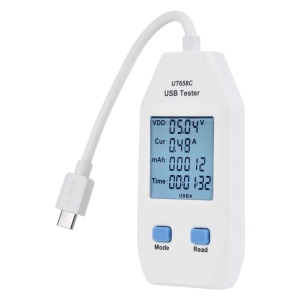

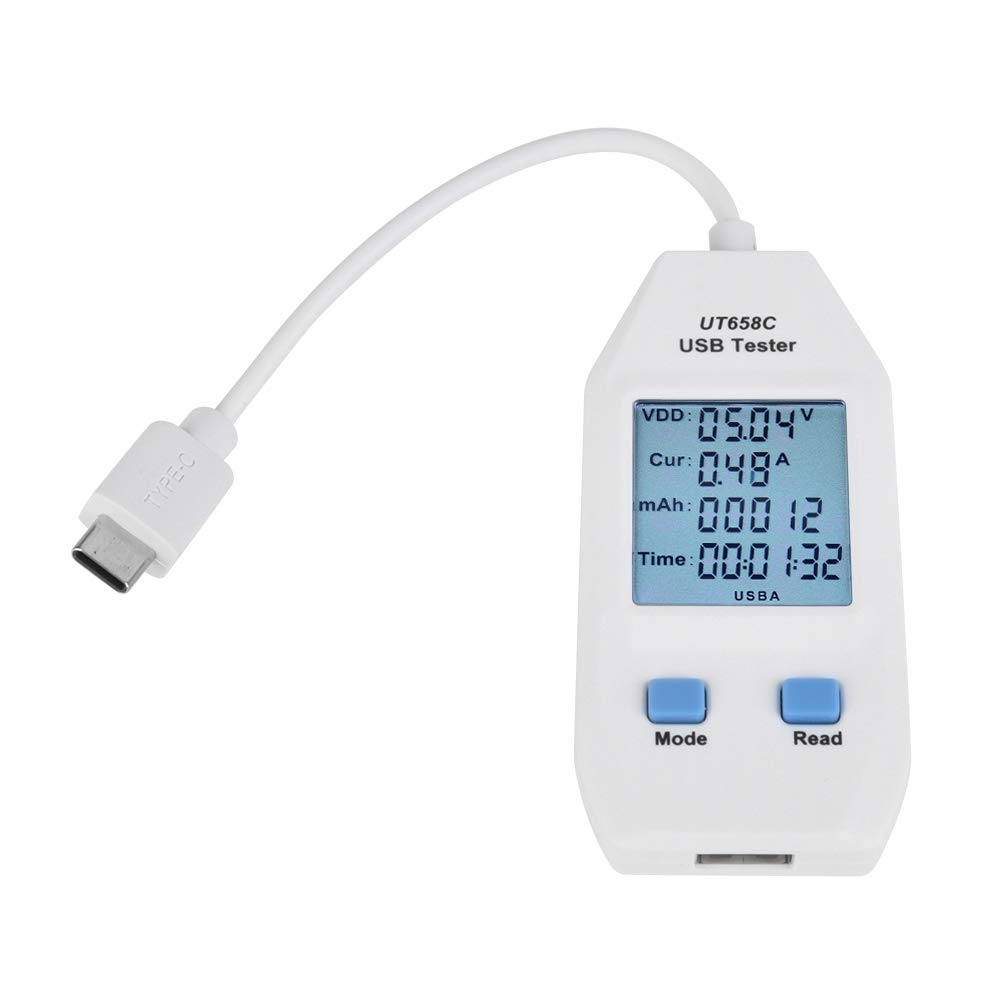

USB tester UT658C

Opis

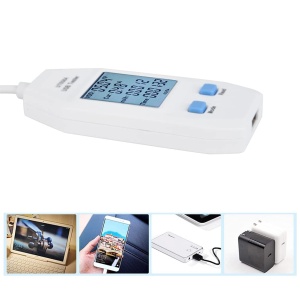

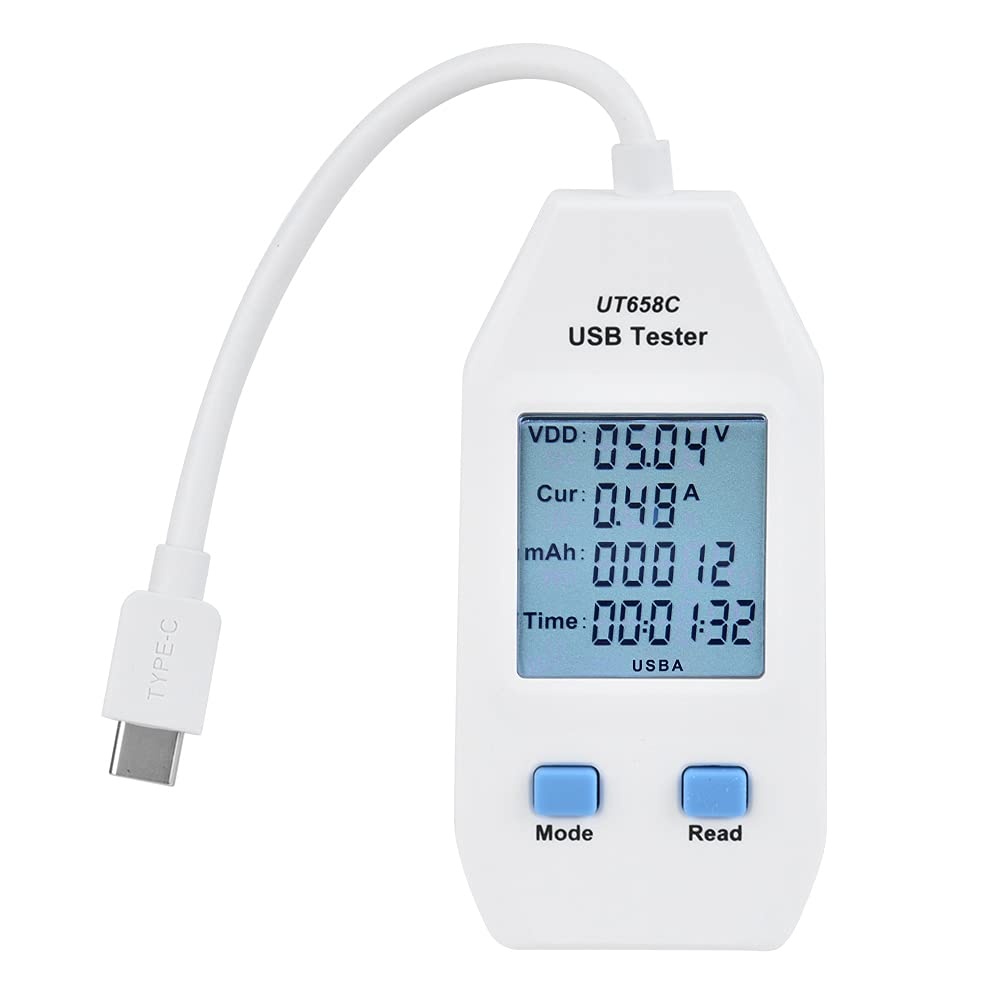

USB measuring device for measuring voltage/current and capacitance. This device can be easily connected between the charger, power supply and the device. Various measured variables can then be read off the illuminated display. Ideal for developer boards like Raspberry Pi, Banana Pi & Co, for power supply tuning and monitoring the charging status.

- Item Type: USB Tester,

- Model: UT658C,

- Material: ABS,

- Color: White,

- Function Description: UT658C,

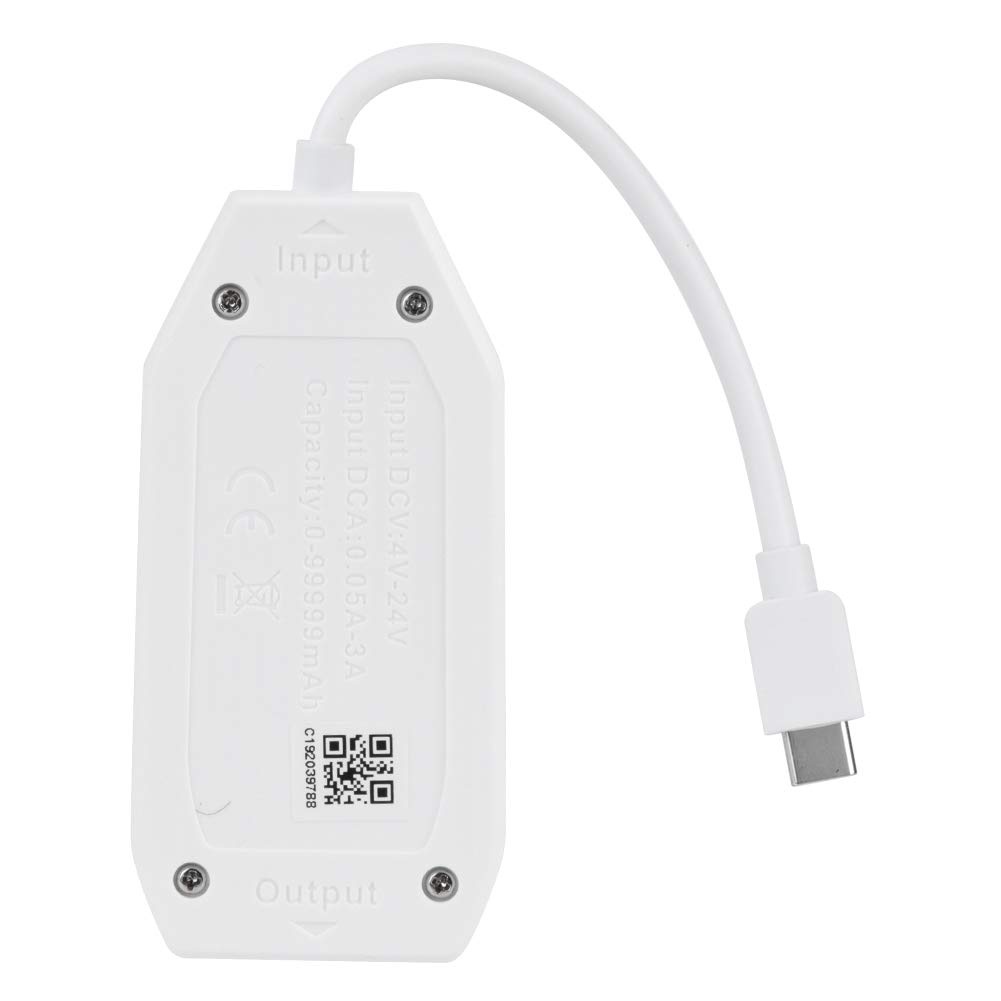

- Input-Output Interface USB Type-A,

- USB Type-C,

- Voltage Measuring Range 4.00-24.00VDC, Resolution Ratio: 0.01V,

- Current Measuring Range 0.05-3.00ADC, Resolution Ratio: 0.01A) Type-A) Yes Yes0.05-5.00ADC, Resolution Ratio: 0.01A) Type-C),

- Capacity 0-99999mAh, Resolution Ratio: 1mAh,

- Electric Quantity 0-1000Wh,

- Equivalent Circuit Resistance Measurement 1-480Ω,

- Data Transmission Line Voltage USB (D+,D-) 0-3.30V,

- Storage 10 groups of data,

- Time 99 hours 59 minutes 59 seconds, resolution ratio:1s,

- Support fast c harge protocol Support USB2.0 data transmission function, support QC1.0/2.0/3.0 fast charging protocol (Type-A),

- Support USB2.0 data transmission function, support QC1.0/2.0/3.0 fast charging protocol (Type-C).
