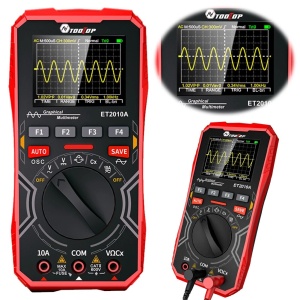

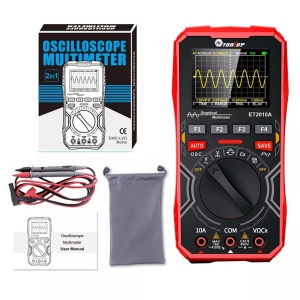

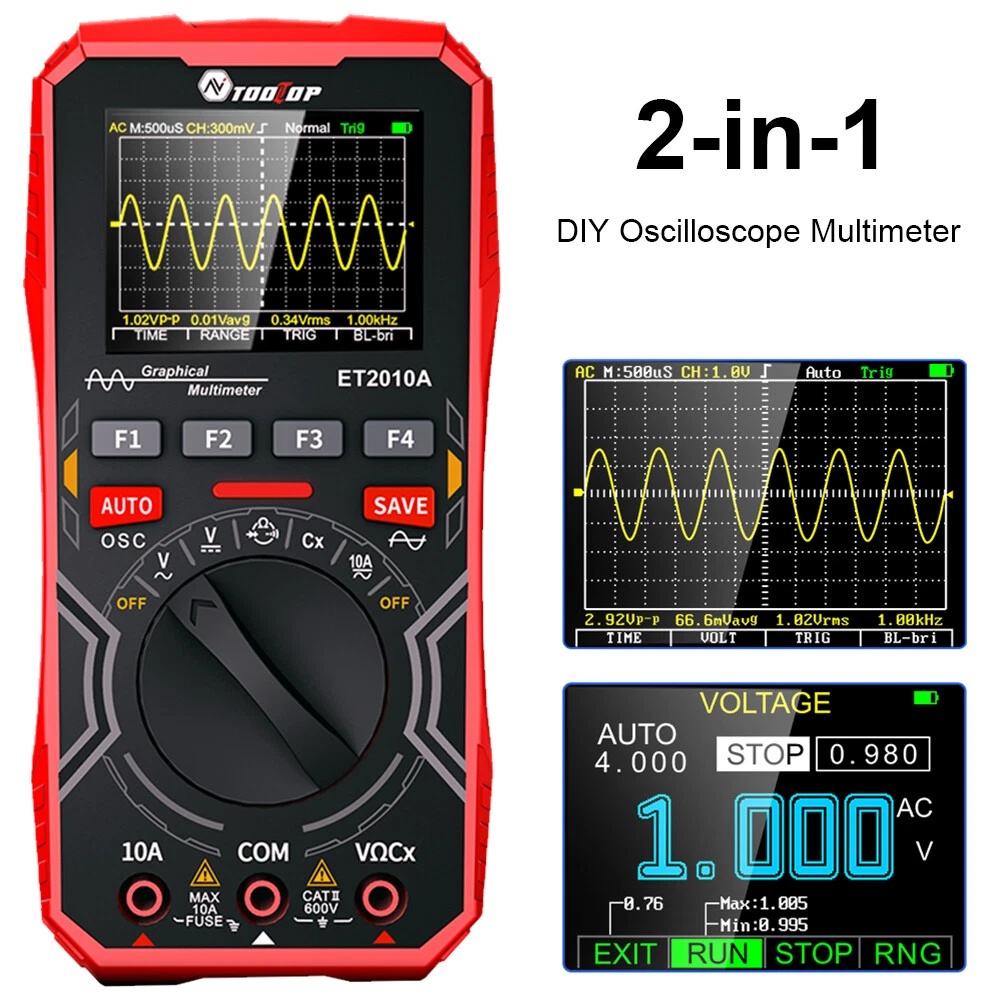

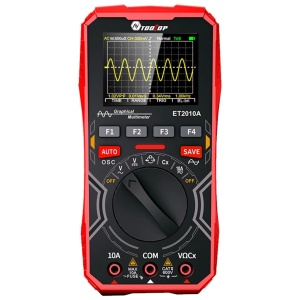

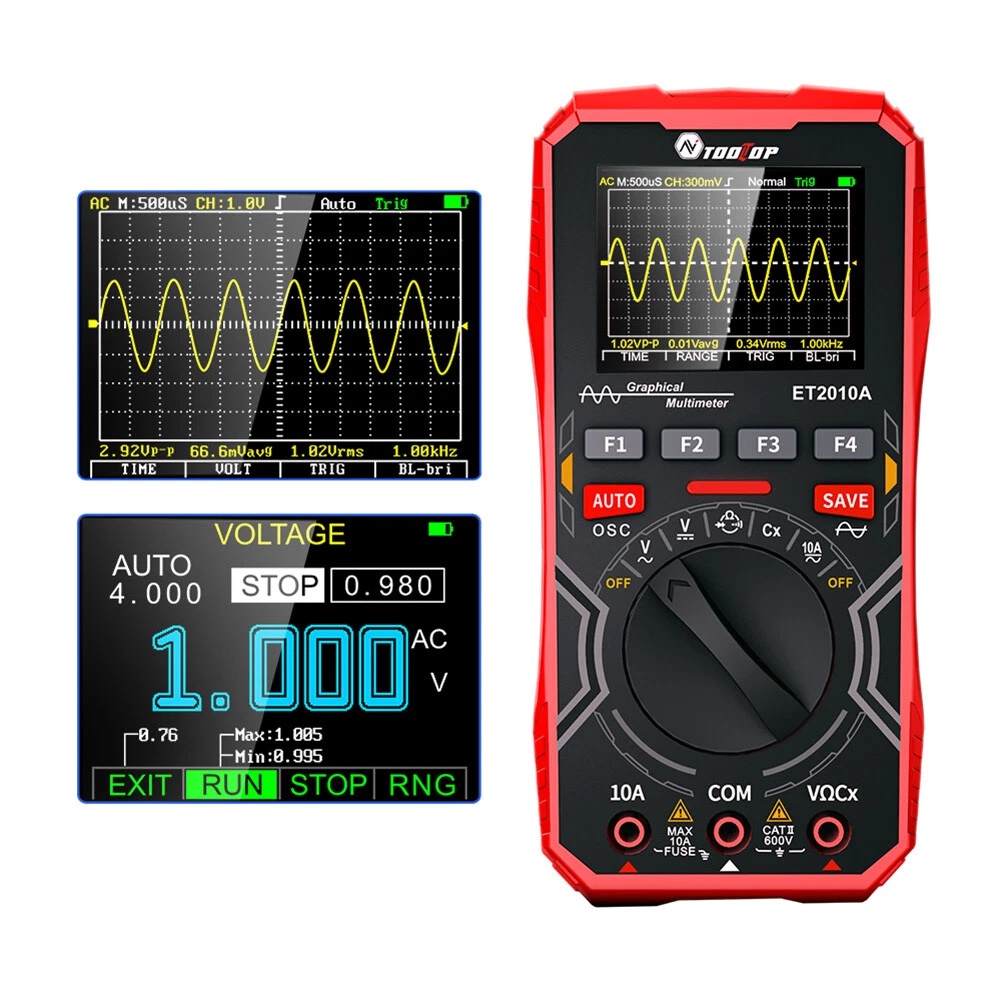

Digitalni multimetar sa osciloskopom ET2010

Opis

1MHz Handheld Digital Oscilloscope AC 10A 600V 2.5Msps Automatic True RMS Multimeter 4000 Count Graphical Handheld Oscilloscope Multimeter Manual/AUTO Range. The handheld digital oscilloscope features 2.5Msps high-speed sampling and a 1MHz analog bandwidth, ensuring precise and accurate measurements. Save and review up to 100 sets of data and 10 waveforms with ease. The automatic true RMS multimeter includes DC/AC voltage/current, resistance, capacitance, frequency, duty cycle, and diode continuity testing. Enjoy the convenience of automatic/manual range switching and simultaneous display of measurement data and historical data. The high voltage oscilloscope offers one-touch visual waveform display with three scanning modes: auto, normal, and single. Customize parameters like time base, amplitude, and scanning mode for enhanced measurement flexibility. The digital oscilloscope multimeter combines the features of an oscilloscope and a multimeter in one device. Advantage from REL mode to eliminate lead resistance, distributed capacitance, and interference signals for more accurate measurements. The 2-in-1 oscilloscope multimeter is equipped with overload protection via 10A dual protection tubes and automatic shutdown after 15 minutes of inactivity. The bright backlit 2.4-inch color screen ensures clear display, while panel and internal storage calibration enhance reliability without needing potentiometer adjustments.

- Display Type: Digital display,

- Display: 240x320 color screen,

- Backlight: Continuously on,

- Battery: AA battery*3 (not included),

- Operating current: Approx. 65mA,

- Usage time: More than 10 hours,

- Usage range: 0°C to +40°C <75% relative humidity,

- Observation area: 49.0mm x 36.7mm,

- Input resistance: Approx. 10MΩ,

- Auto shutdown: 15 minutes or disabled,

- Sleep current: Approx. 35uA,

- Storage capacity: 100*data. 10* waveforms,

- Storage: -10°C~+60°C<90% relative humidity,

- Analog bandwidth: 1MHZ,

- Channel: 1,

- Scan mode: Auto/Normal/Single,

- Vertical sensitivity range: 300mV~100V per grid,

- Vertical amplitude accuracy: ±(5%+0.2div),

- Automatic configuration: Automatically set time base and vertical amplitude,

- Maximum real-time sampling rate: 2.5Msps,

- Input resistance: about 10MΩ,

- Time base range: 2.5us~10s per grid,

- Time base accuracy: ±(0.01%+0.1div),

- Trigger edge selection: rising/falling edge,

- Automatic measurement function: Vp-p, Vav g, Vrms, HZ,

- DC voltage: 400mV-600V,

- DC current: 4A~10A,

- Resistance: 400.0Ω~40.00MΩ,

- Frequency: 5Hz~5MHz,

- Diode test: voltage is about 1.5V,

- AC voltage: 400mV~600V,

- AC current: 4A~10A,

- Capacitance: 51.2nF~100uF,

- Duty cycle: 0%~100%,

- Continuity test: resistance <50Ω, beep,

- Casing material: ABS,

- Product size: about 157.00x77.00x25.50mm,

- Product size: 6.18x3.03x1inch.
