Lora modul SX1276 433MHz

Opis

RF Module SX1278 Lora E32-433T20D 433Mhz 3000m use SX1278 chip with LORA (Long Range) communication standard, LORA technology is a transmission and reception technology with two important features: energy saving and ultra-long transmission distance (Ultimate long range wireless solution). This is a widely used standard today in 4.0 technology, IoT because it also has the ability to configure to create a communication network. It is integrated with the SPI communication converter of SX1278 to UART, making communication and use very easy, just connect to the company's software to configure the address, speed and transmission power to use.

- Main IC: SX1278 from SEMTECH,

- Operating voltage: 2.3 – 5.5 VDC,

- Transmission speed: 0.3 – 19.2 Kbps (default 2.4 Kbps),

- Communication voltage: TTL-3.3V,

- UART communication Data bits 8, Stop bits 1, Parity none, speed from 1200 – 115200,

- Frequency: 410 – 441Mhz,

- Cache size: 512bytes,

- Supports 65536 configurable addresses,

- Operating temperature: -40 ~ 85° C,

- Working humidity: 10 ~ 90%,

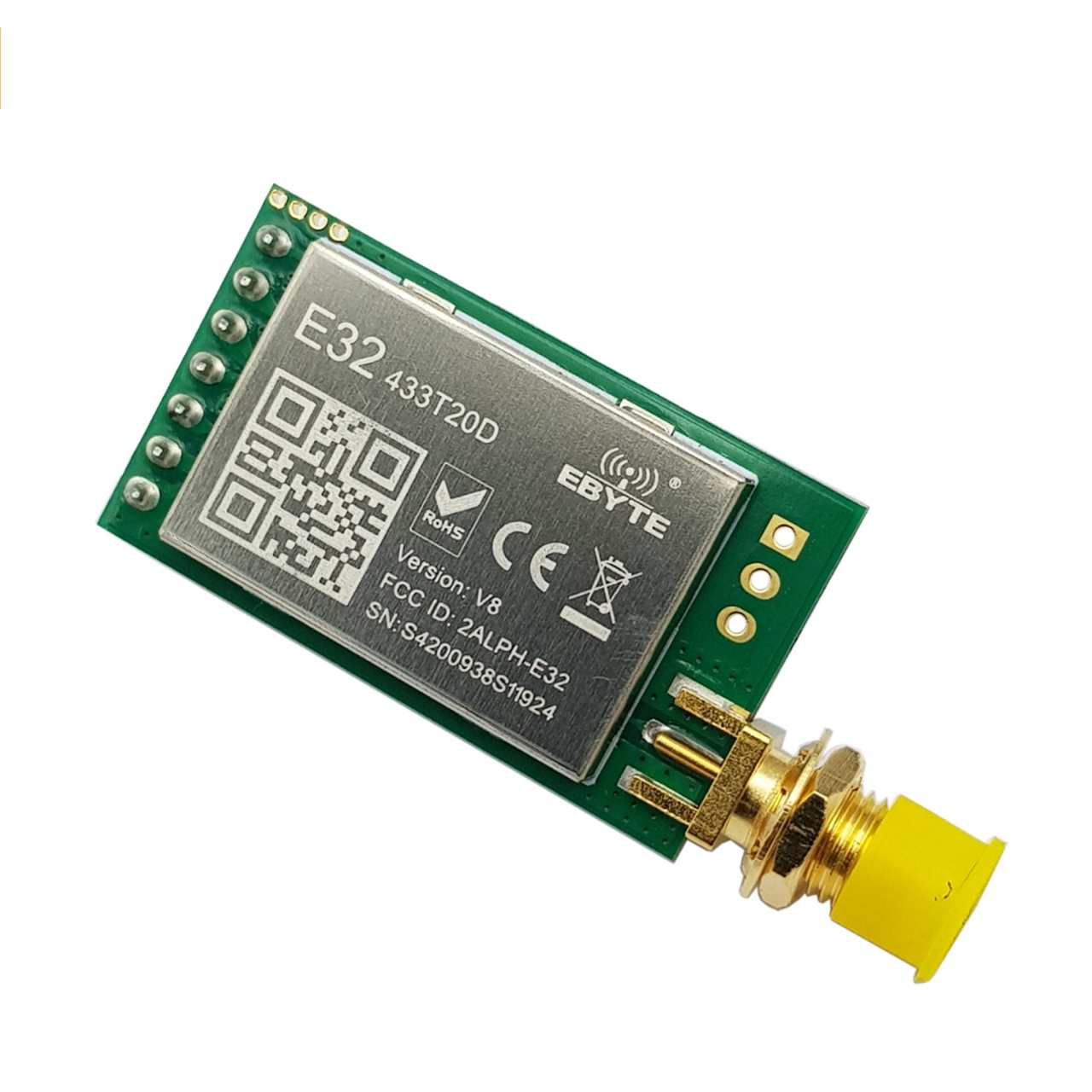

- Model: E32-433T20D Lora SX1278 433Mhz (TTL-100),

- Power: 20dbm (100mW),

- Maximum transmission distance under ideal conditions: 3000m,

- Sensitivity: -130dBm,

- Working current: 110mA,

- Size: 21 x 36mm,

- Weight: 8g.
