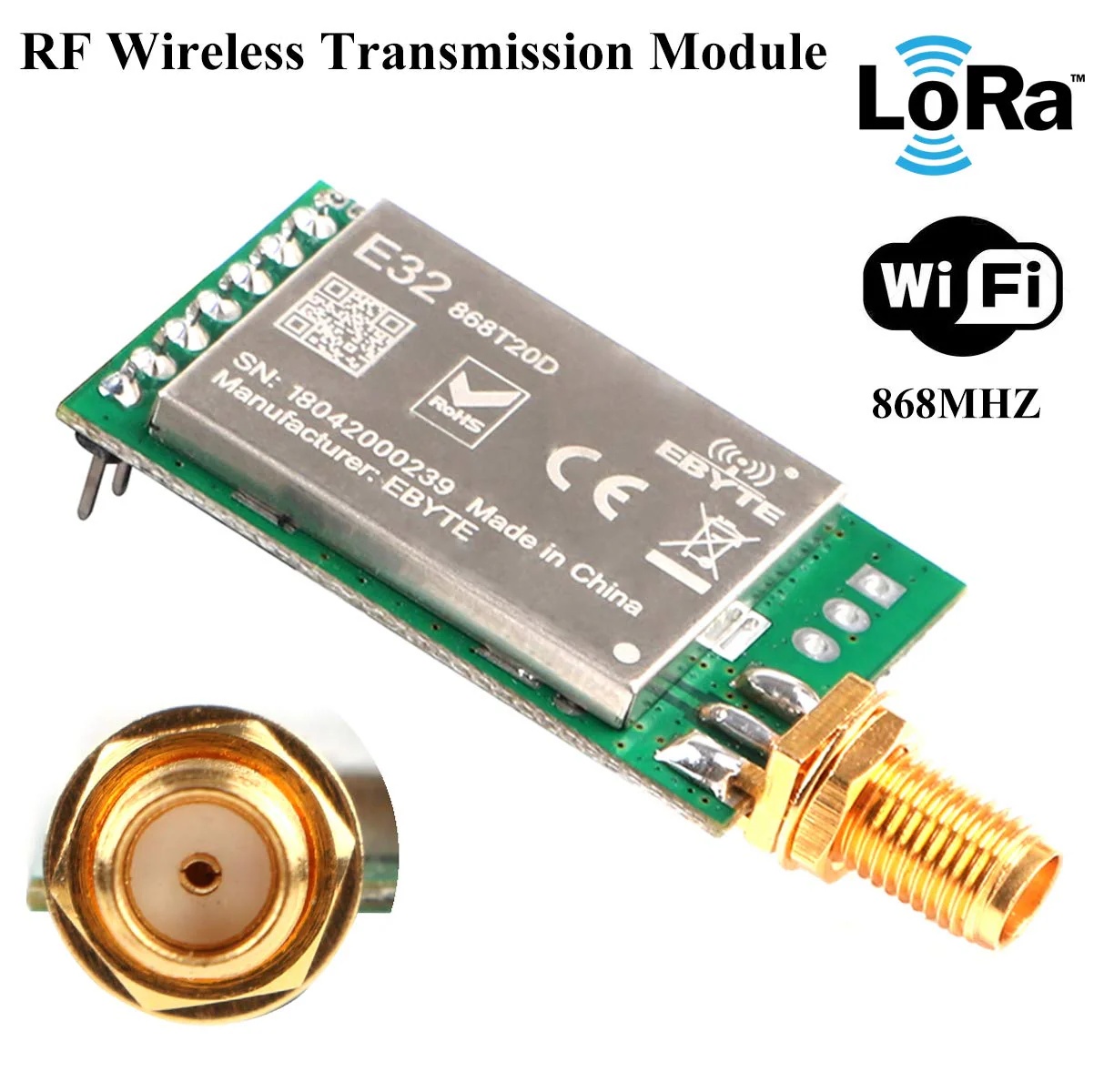

Lora modul SX1276 868MHz

Opis

This is a 100mW UART transparent and transmission wireless transceiver module, operates at 862~893MHz, based on original imported RFIC SX1276 from SEMTECH. The module integrates the function of receiving and sending information, adopts LoRa spread-spectrum technology, which means the transmitting distance and penetration capacity are one time more than that of traditional Frequency-shift Keying. At the same time, using the FEC forward error correction algorithm, it can actively correct the interfered data packets, making the communication distance farther, the anti-interference ability stronger, and having the air wake-up function (ultra-low power consumption).

- Chip:  SX1276,

- Model: E32-868T20D,

- Transmit power: 100mW,

- Communication Distance: 3000m,

- RF connector: SMA-K,

- Working frequency:862~893 MHz (Default: 868MHz),

- Transmitting power:10~20 dBm, Default: 20dBm,

- Receiving sensitivity: -146 dBm,

- Air data rate: 0.3k~19.2kbps(Default: 2.4kbps),

- Size: 21 * 36 mm(Without SMA),

- Antenna type: SMA-K (Not inclueded),

- Communication interface: UART (Baud rate: 1200~115200, default: 9600),

- Buffer: 512 bytes buffer (Automatically sub-packaging with 58 bytes per package.
