Wireless modul CC1101

Opis

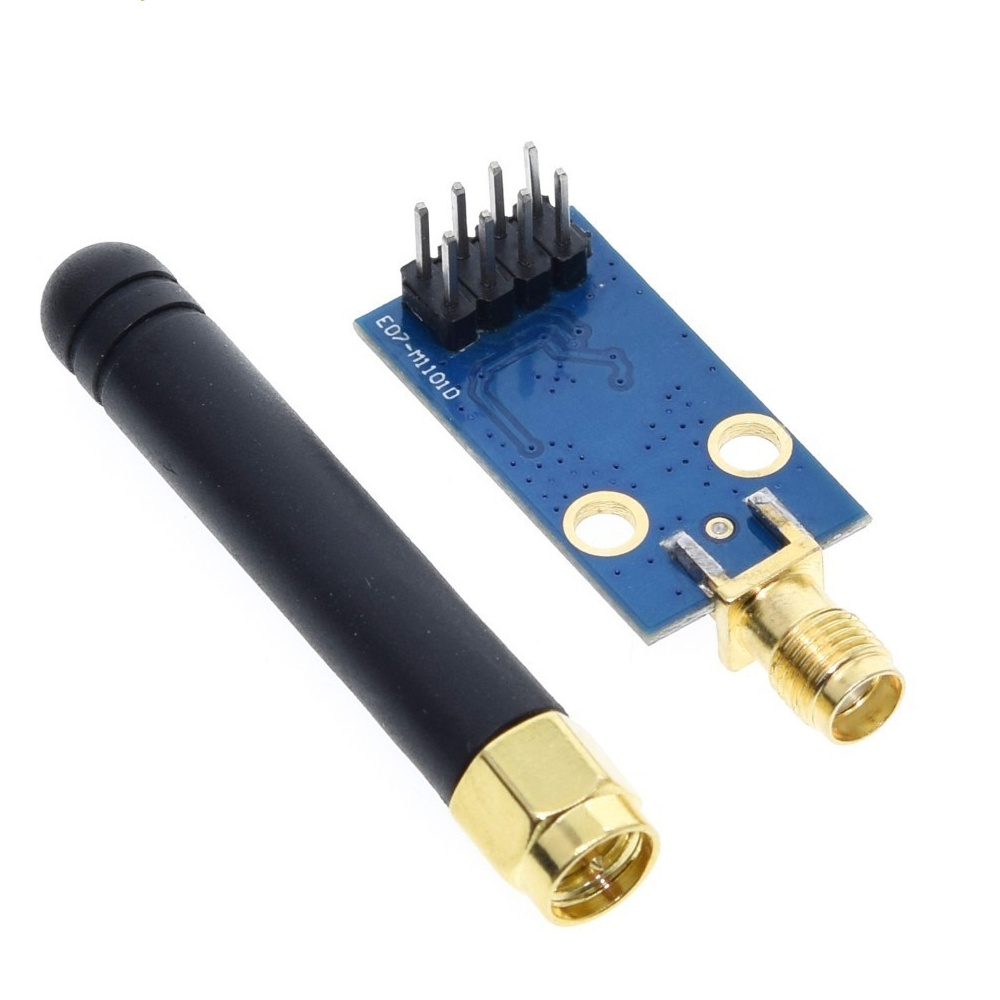

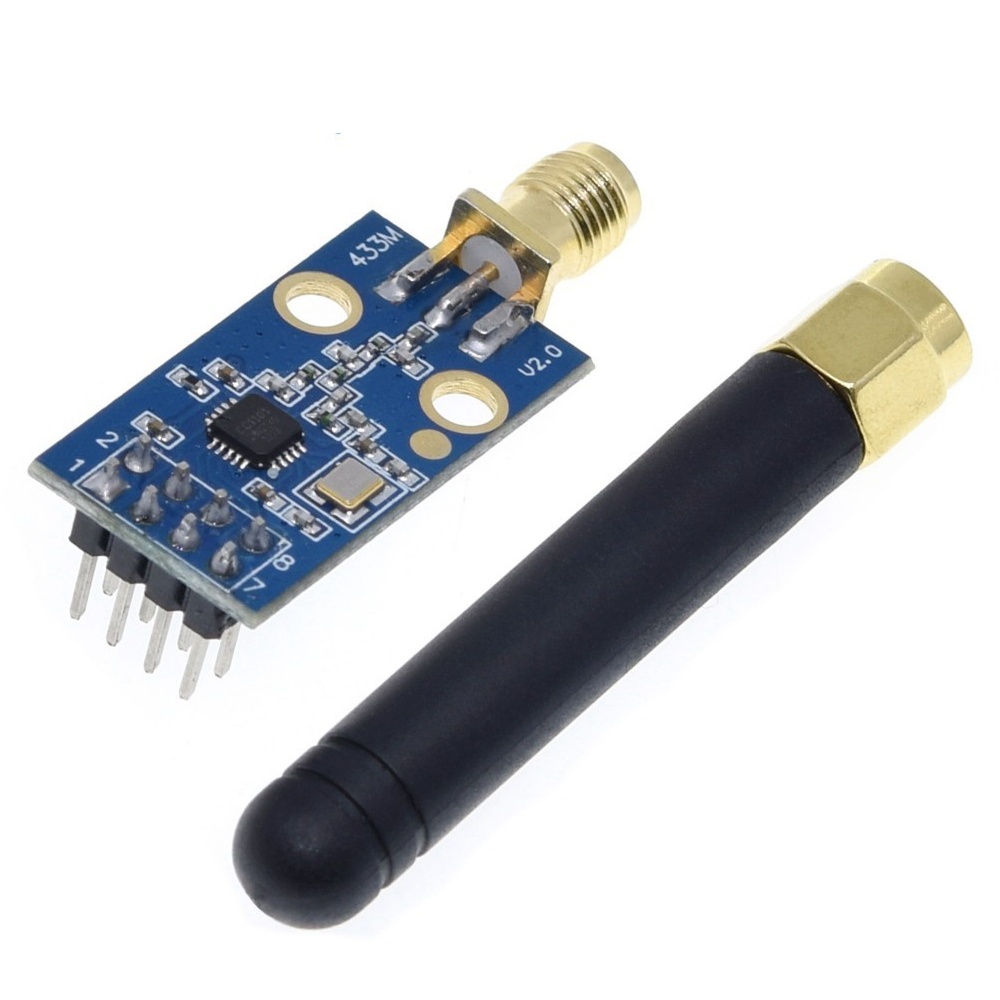

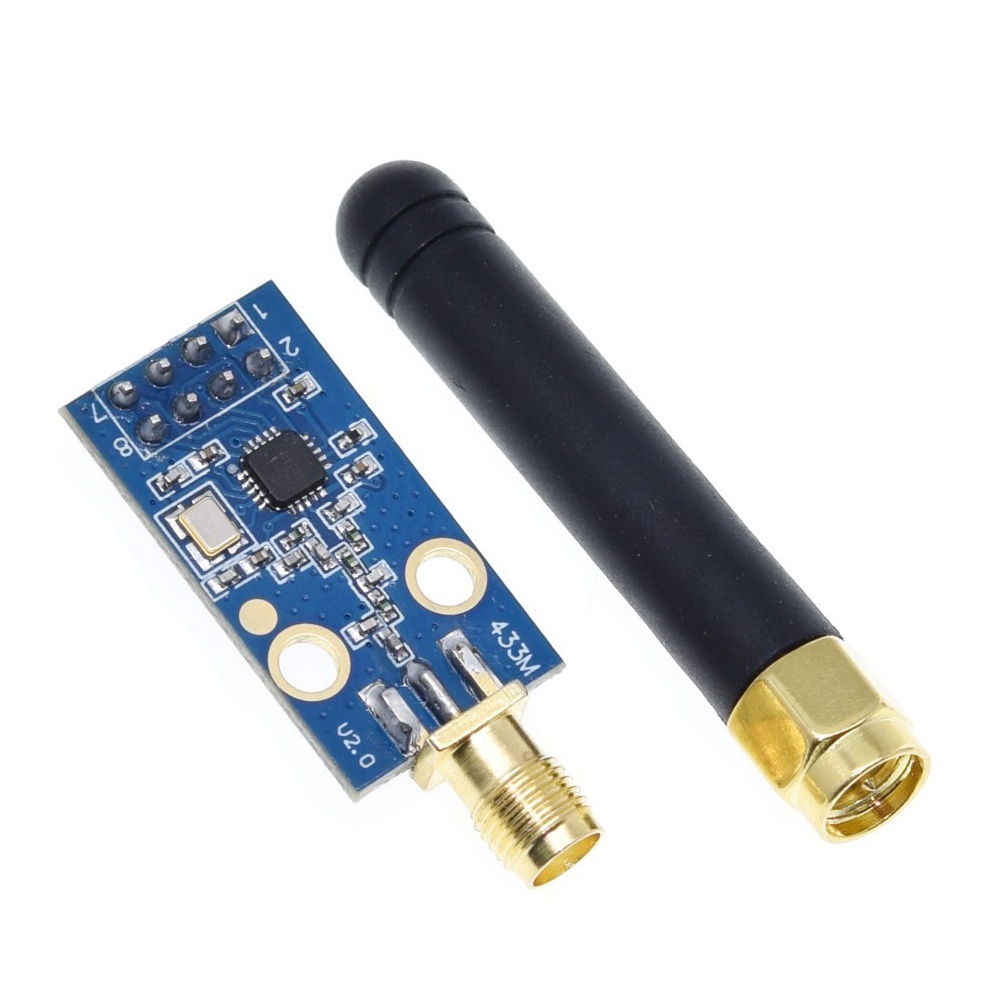

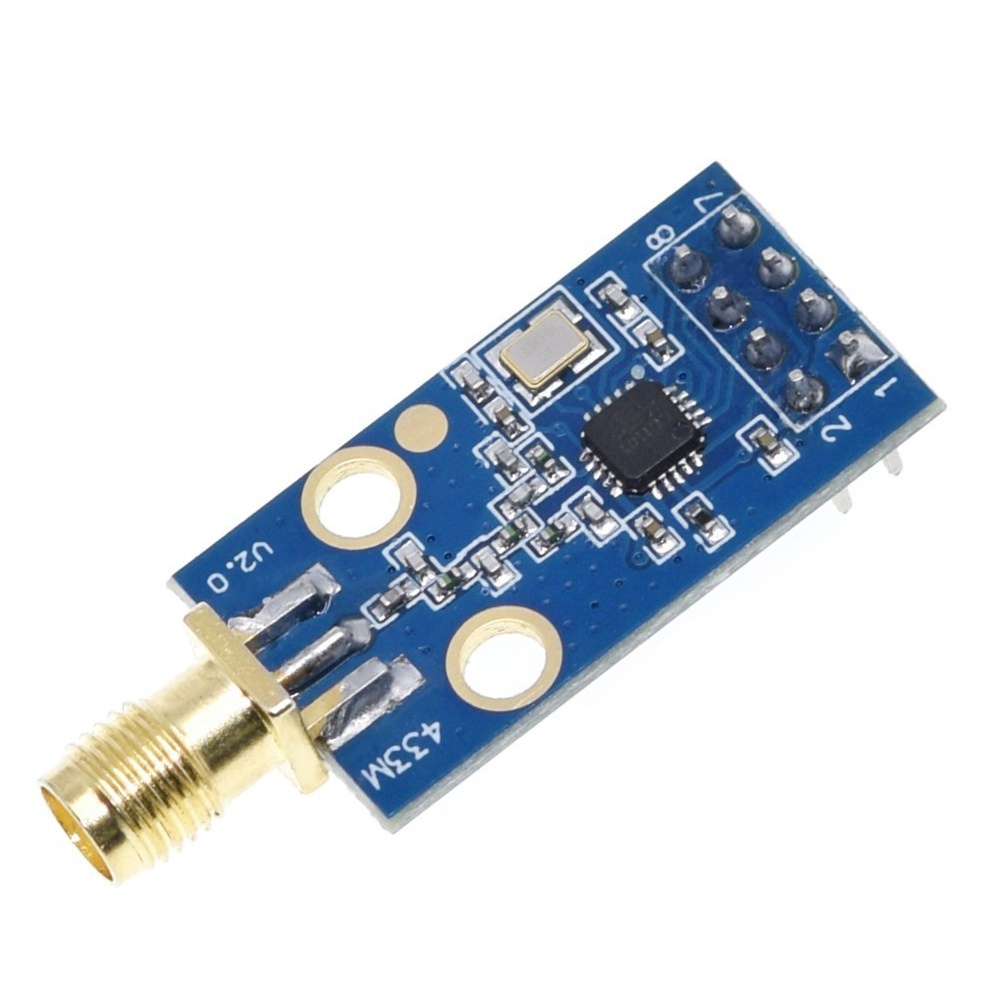

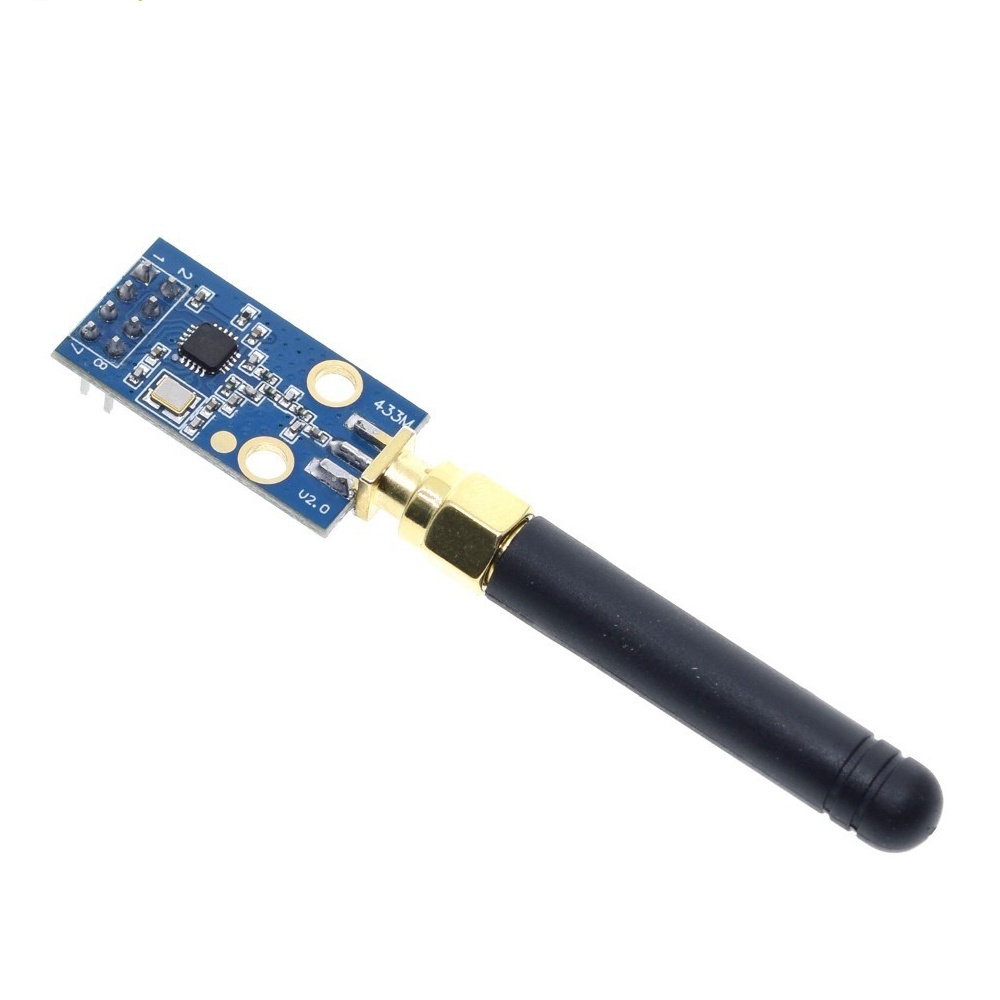

A radio module (receiver and transmitter) operating in the frequency range of 433 MHz, with the SPI communication interface. Powered with the voltage of 1.8 V - 3.6 V. The device has an external antenna that is connected to the SMA connector, the signals are displayed on the goldpin connectors.

- Supply voltage: 1.8 V to 3.6 V,

- Frequency: adjustable from 387 MHz to 464 MHz,

- Maximum momentary current consumption: up to 30 mA,

- Transmission distance: 200 meters,

- Maximum transmission power: 10 mW (10 dBm),

- Support for the modulation of 2-FSK, GFSK, MSK,

- Receiver sensitivity: 110 dBm 1200 baud,

- Minimum operating range: 1.2 kbps to 500 kbps,

- Separate 64-byte RX and TX (FIFO) buffer,

- Built-in CRC error detection,

- Low current consumption: for RX - 15.6 mA, 2.4 kbps, 433MHz,

- Programmable control of output power: not more than 10 dBm for all frequencies,

- Dimensions: 50 x 27 x 9 mm,

- Weight: 13 g.
