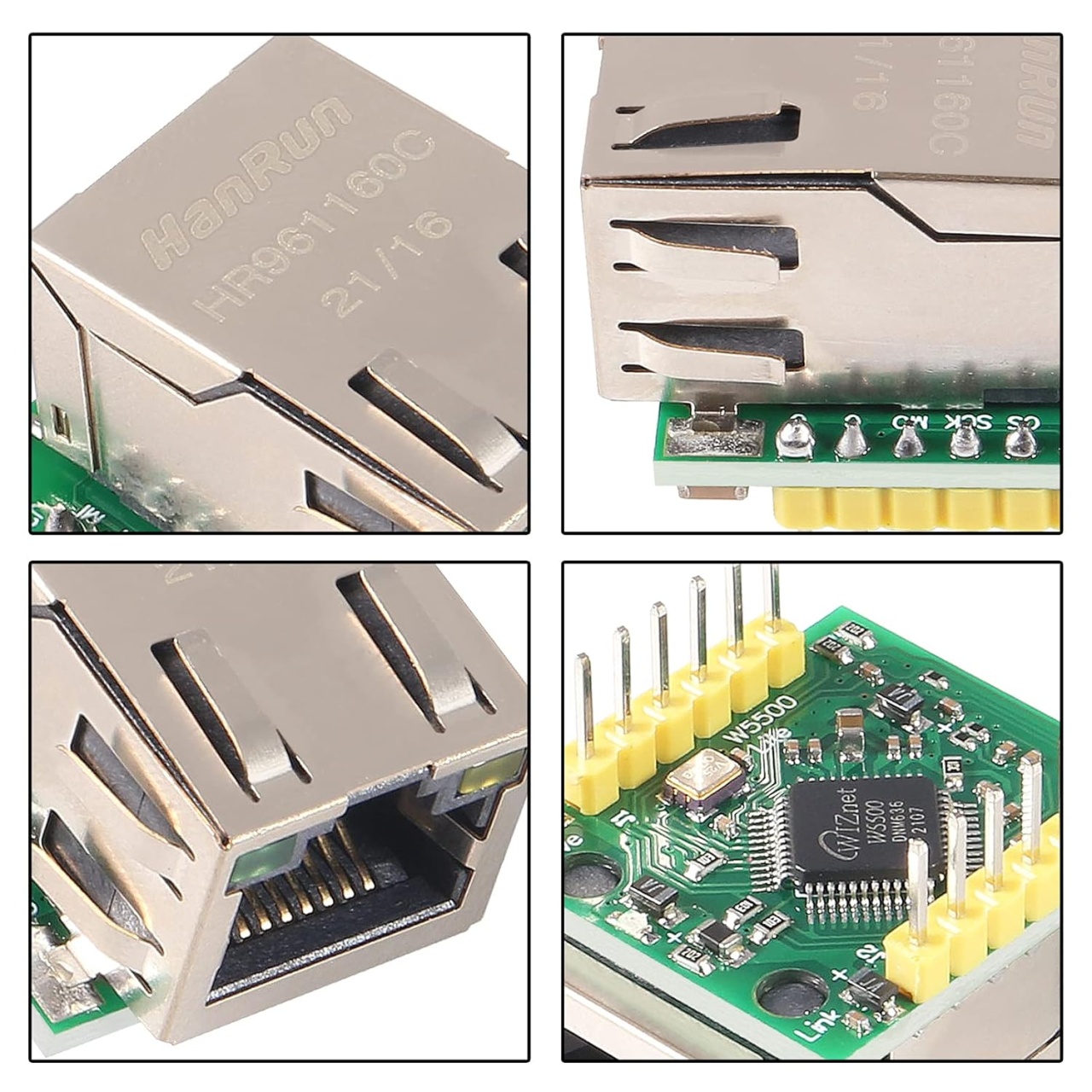

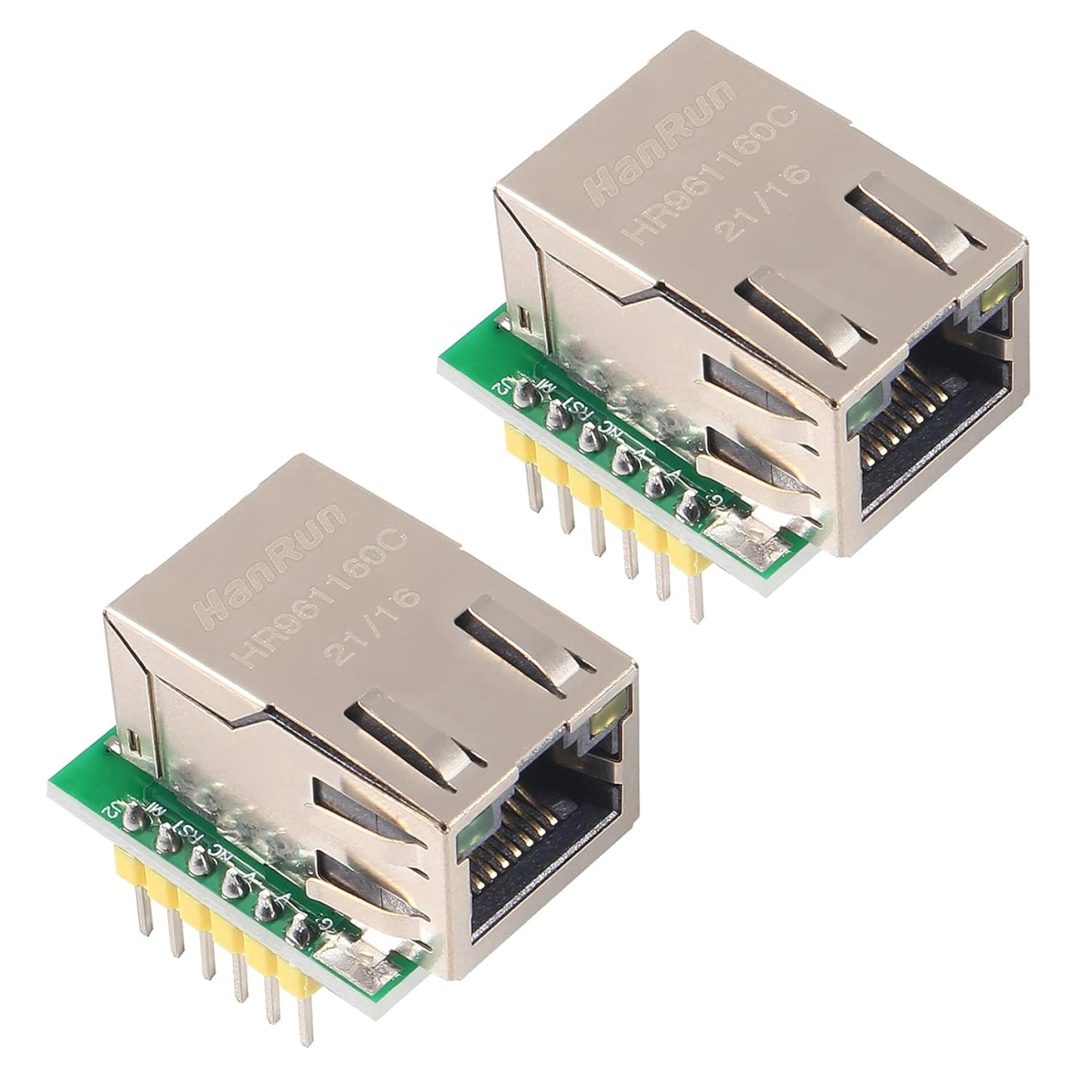

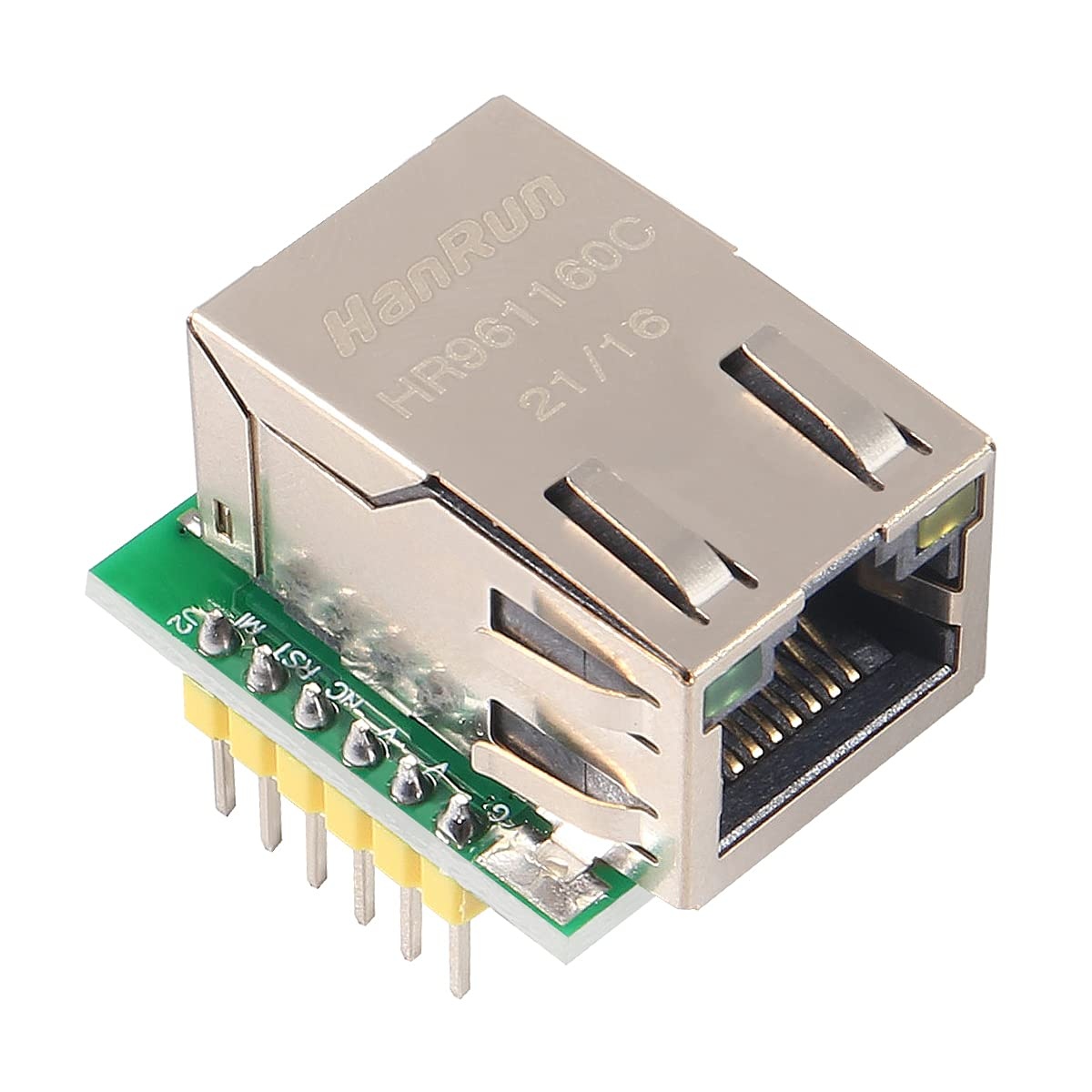

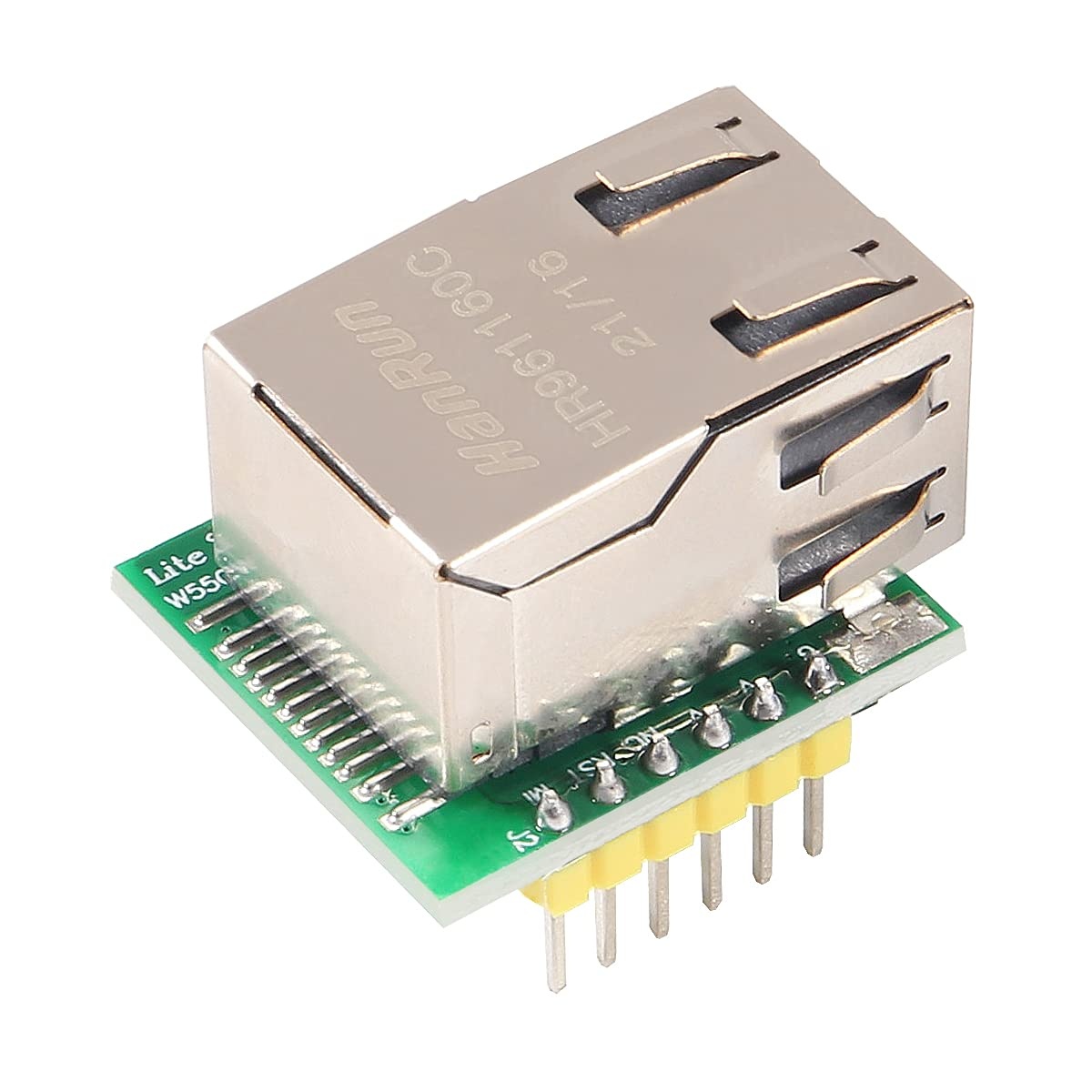

Ethernet modul W5500 USR-ES1

Opis

- Power supply mode:3.3V external power supply, current should be more than 200mA,

- Control interface:The TTL level, 3.3V SPI interface,

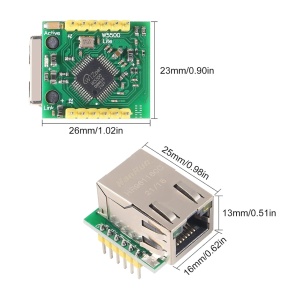

- PCB size:23 x 25 mm,

- Mechanical Dimensions:28.5 x 23 x 24,

- Supports up to 8 Socket,

- Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol,

- Integration of the data link layer, physical layer,

- Support the wakeup,

- Support high speed serial peripheral interface (SPI model 0, 3),

- Internal 32K bytes receive buffer,

- The embedded 10BaseT/100BaseTX Ethernet physical layer (PHY),

- Support auto negotiation (10/100-Based full duplex or half duplex),

- Does not support the IP patch,

- The working voltage of 3.3V, I/O and 5V voltage signal,

- LED display (full duplex or half duplex, network connection, network speed,active),

- Pin type package ultra small, convenient for embedded applications,

- Application of C sample project.
